Source SEM-BH P04-ST Installation Instructions

DISASSEMBLY INSTRUCTIONS
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment
(WEEE). This product must be disposed of, according to the legislation. This document is intended for use by
end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life
treatment for the components and materials of the product.

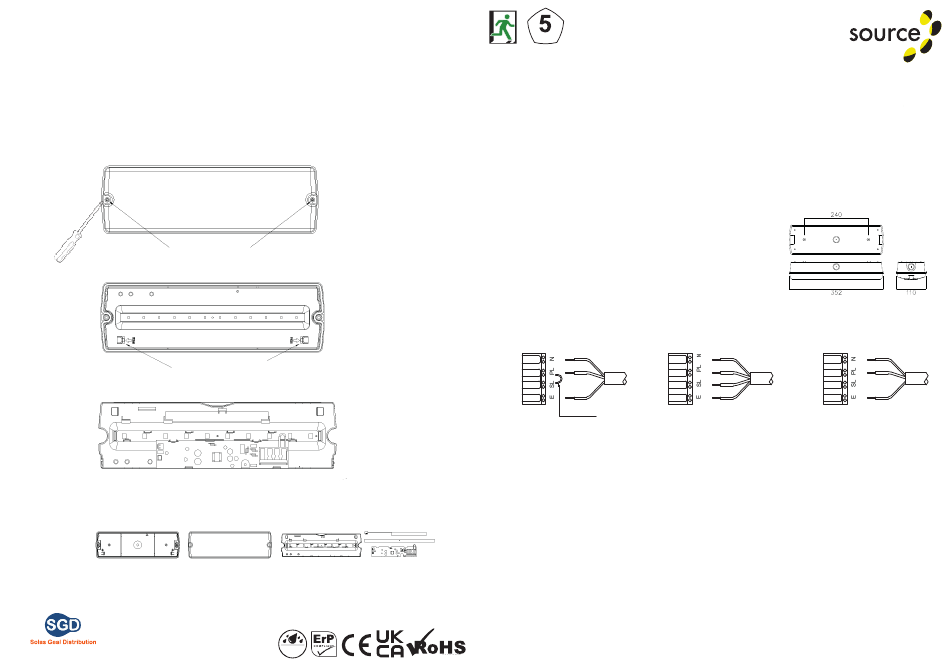

Please follow pictured diagram on the back of this manual showing how to dismantle the product into different
components which should be disposed of correctly. These components consist of plastic, metal and electronic
materials.
It is the responsibility of the end user to dispose of this product correctly. Contact www.weeeireland.ie or your
local council for further information.
Loosen screws with
Dismantle middle plate
driver and LED plate
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
For more information contact: Phone: 00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
UK Ph: 0330 551 7000
www.sgd.ie
Website:
Loose screw by screwdriver
screwdriver
Dismantle middle plate
Dismantle battery,driver, led
plate
Dismantle battery,
IP65
Installation Instructions
years
Quality EMERGENCY SELF TESTING
Assurance
PRODUCT CODE: SEM-BH P04-ST
SAFETY This is a mains powered product. It is designed to be installed by a qualified electrician and in accordance with the
applicable building and electrical regulations. Before installation or maintenance the electrical supply to the product must be
isolated.
WARRANTY This product is warranted to be free of defects in materials, design and workmanship for 5 years from the date of
purchase. This warranty does not include batteries or consumable items such as fuses. The NiCd Battery has a 2 year warranty.
The LiFeP04 has a 3 year warranty.
LUMINAIRE INSTALLATION
1. Remove diffuser by unscrewing the two screws.
2. Hinge the gear tray open by pushing apart the two retaining clips.
3. Screw fix the base to the chosen mounting surface using the two screw
fixing points in the base moulding at 240mm centres. These should be
drilled to a size to suit the fixing screws.
Note: It is responsibility of the installer to ensure these fixing points
are sealed to ensure the IP65 rating is maintained. The use of a
silicone sealant is recommended.
4. Select one of the available cable entry points on the base (one on either
end, on one side, or through the bottom) & drill to suitable size to suit IP65
rated (or better) cable entry gland (not provided).
5. Install cable entry gland.
6. Depending on which variant of the product you have, determine your
required function & route the appropriate power supply cable to the terminal
block & terminate as shown.
FOR MAINTAINED OPERATION
(NON-SWITCHABLE)
BLUE
BROWN
GREEN & YELLOW
Keep Link Wire
7. If applicable, tighten cable gland to seal & secure mains cable.
8. Connect the battery pack to the PCB by connecting the female socket on the battery wires to the male plug mounted on
the PCB, ensuring the correct orientation.
9. Enter the "Installation Date" in the appropriate place on the battery pack label.
10. Hinge the gear tray closed & snap fit of clips to secure.
11. Refit the diffuser & secure using the two screws.
12. Reconnect the power supply & check the green LED charge indicator illuminates.
13. The batteries should be allowed to charge for at least 24 hours before carrying out a full discharge test to check they are
charging correctly & the maintained duration is being achieved.
OPERATION / MAINTENANCE
1. NiCd battery life is 2 years, after which time it should be replaced with a suitable equivalent. TheP04LiFe battery
should be changed after 3 years.
2. This luminaire MUST be disconnected before it is subjected to any high voltage or insulation resistance testing,
otherwise irreparable damage will occur to luminaire components.
3.
Ensure cleanliness of luminaires is maintained so as not to affect performance.
RECESSED MOUNT KIT INSTALLATION –
1. Prepare ceiling by cutting suitable size aperture. We recommend 360mm x 110mm.
2. Bend springs up to vertical & push the back of the frame up through aperture, then allow the springs to snap back
against the top of the ceiling to retain.
3. Drill out the two fixing points at 240mm centres in the base of the luminaire & then secure the base to the frame using 2-
off M4 screws aligned with the tapped holes on the brackets of the frame.
4. Other installation details as per LUMINAIRE INSTALLATION section above.
COMPLIANT
BULKHEAD
EMERGENCY BULKHEAD INSTRUCTIONS
FOR MAINTAINED OPERATION
(SWITCHABLE)
BLUE
BROWN
BROWN
GREEN & YELLOW
Remove Link Wire
FOR NON-MAINTAINED OPERATION
BLUE
BROWN
GREEN & YELLOW
Remove Link Wire
