barbas 70-75 PF2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Gas Fire Front 70-75 PF2
Serial number:
Production date:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70-75 PF2 and is the answer not in the manual?

Questions and answers

Related Manuals for barbas 70-75 PF2

Summary of Contents for barbas 70-75 PF2

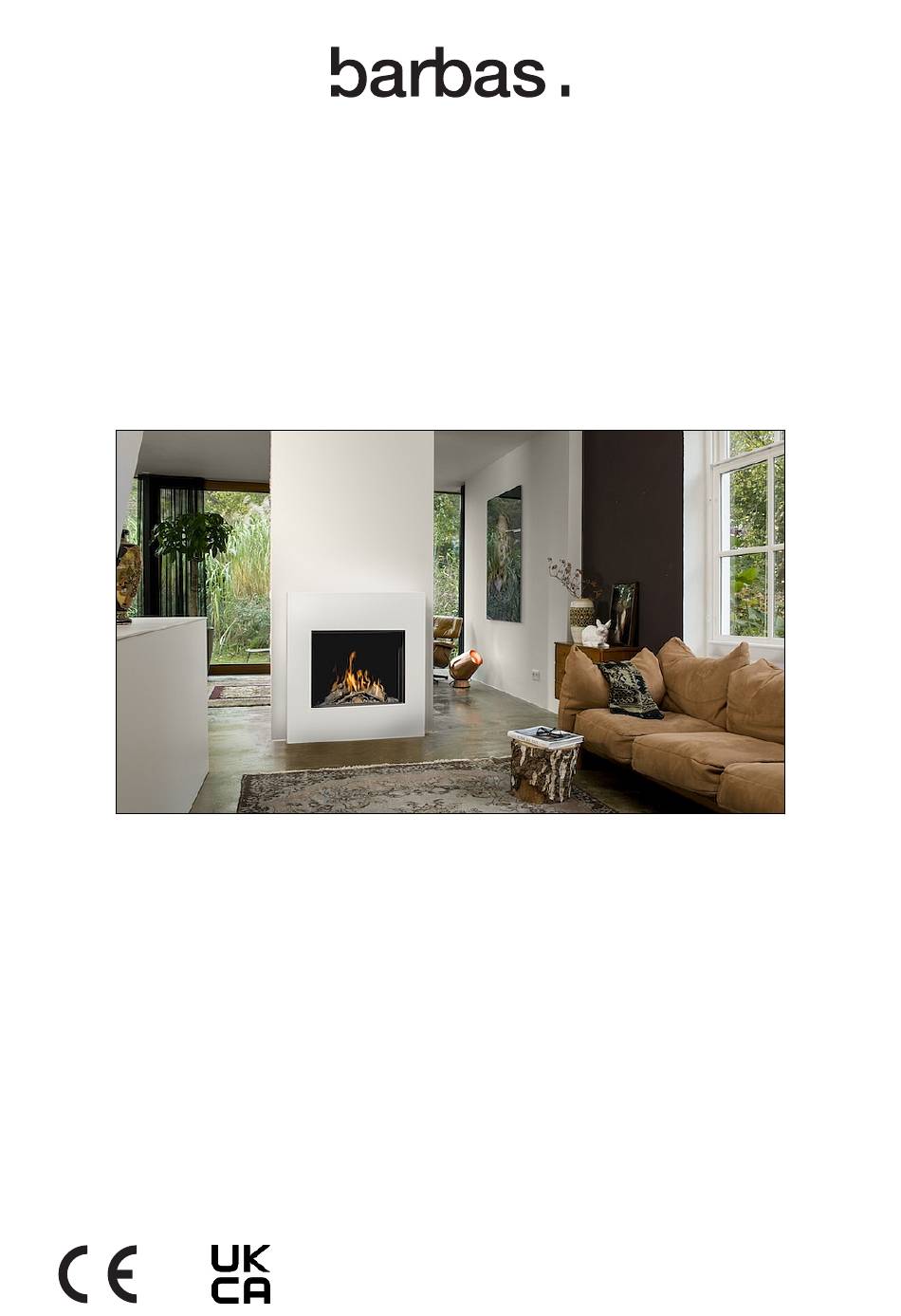

  • Page 1 User manual Gas Fire Front 70-75 PF2 Serial number: Production date:...
  • Page 2 Barbas Bellfires BV.This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in thecontents thereof.

  • Page 3: Table Of Contents

    Contents Contents About this document................5 How to work with this document....................5 Warnings and cautions used in this document................5 Related documentation........................ 5 Description....................6 Intended use..........................6 Overview of the appliance......................7 Overview of the remote control....................8 2.3.1 Overview of the buttons....................8 2.3.2 Overview of the display.....................
  • Page 4 Troubleshooting..................26 Troubleshooting table........................ 26 Troubleshooting procedures...................... 27 6.2.1 Replace the batteries of the remote control..............27 Technical data..................28 Barbas Gas Fire Front 70-75 PF2 - GB, IE, ES, IT..............28 Warranty Terms..................30 EU-Declaration of Conformity..............32 Gas Fire Front 70-75...

  • Page 5: About This Document

    • Do basic maintenance This document refers to the Gas Fire Front 70-75 PF2 as 'the appliance'. This document is an essential part of your appliance.Read it carefully before you do work on the appliance. Keep it in a safe place.

  • Page 6: Description

    Description Description Intended use Only use the appliance to heat the room in which the appliance is installed. Do not use the appliance for a different purpose. Gas Fire Front 70-75...

  • Page 7: Overview Of The Appliance

    Overpressure hatch Pilot light burner Convection casing (optional) Decorative frame ('Hidden Door' Overpressure relief openings version) Gas control and electronic parts Concentric flue connection Inlet convection air Figure 1. Overview of Gas Fire Front 70-75 PF2 Gas Fire Front 70-75...

  • Page 8: Overview Of The Remote Control

    Description Overview of the remote control Note: The remote control is not interchangeable with a remote control from a different model. You can operate the appliance with the remote control. The remote control communicates with the receiver. 2.3.1 Overview of the buttons Display Burner mode On/off...

  • Page 9: Overview Of The Display

    Description 2.3.2 Overview of the display Child lock is on Thermostat is on Countdown timer is set Temperature unit (°C or °F) Program mode is set Battery status Active program number Signal transmission Temperature Current time Both burners on Not applicable ECO mode is set Light is on Figure 3.

  • Page 10: Eco Mode

    Description 2.4.3 Eco mode In this mode the flame height changes between minimum and maximum height for the duration of a cycle: • If the room temperature is lower than the set temperature, the flame height will stay high for a longer period of time. •...

  • Page 11: Overview Of The Fan/Light Module

    Description 2.5.2 Overview of the fan/light module Connection for the ambient lights connection for the power supply Connection for a convection fan Connection for the receiver Figure 5. Fan/light module Gas Fire Front 70-75...

  • Page 12: Safety

    Safety Safety Safety devices on the appliance Name Description Thermo-electric pilot light shut off Prevents unforseen discharge of gas from the main burner. Overpressure hatch If an overpressure occurs in the appliance, the hatch opens for a short duration. When the hatch opens, a loud noise can occur.

  • Page 13: Safety Instructions With Regard To The Environment

    Safety Safety instructions with regard to the environment • Dispose of the packing materials in an environmentally friendly way. • Dispose of batteries as chemical waste. • Dispose of ceramic heat-resistant glass as household waste. Do not dispose of ceramic heat-resistant glass in a glass recycling container. •...

  • Page 14: Operation

    Operation Operation Preparation before first use 4.1.1 Do a check on the appliance Make sure that the appliance is not damaged. Make sure that the glass is not damaged. Make sure that the pilot light operates correctly. 4.1.2 Prepare the appliance Warning: •...

  • Page 15: Set The Remote Control Settings

    Operation Note: • The main burner burns at maximal height after start-up. • If the pilot light goes out and you start the appliance too early, the remote control will start but the fire will not burn. Restart the remote control. •...

  • Page 16: Operate The Appliance

    Operation Operate the appliance 4.3.1 Operate the appliance with the remote control Table 1: Start and stop the appliance Action Preconditions Steps Result The remote control is • You hear a short Start the appliance set to the one-button beep. with one-button opera- operation.
  • Page 17 Operation Table 2: Set the appliance to different modes Action Preconditions Steps Result Set the appliance to Push and hold stand-by mode until only the pilot light burns You can only use the off function of the remote control. Push Start the child proof mode at the same...
  • Page 18 Operation Action Preconditions Steps Result Start the countdown timer mode Push Stop the countdown timer mode Push Table 3: Start and stop the rear burner Note: When you start the appliance also the rear burner is automatically set to maximum. Note: When the batteries of the receiver are empty, the rear burner will stay in the last selec- ted setting.
  • Page 19 Operation Table 4: Adjust the flame height Note: When you start the appliance the flame height is automatically set to maximum. Action Preconditions Steps Result Decrease the flame Push and hold height until you have the de- sired flame height Increase the flame Push and hold height...
  • Page 20 Operation Table 5: Start and stop the light and adjust the brightness Note: The Light works independently of the Pilot flame. Note: If the main burner and pilot light are switched off, with button , the light will switch off automatically. Action Preconditions Steps...

  • Page 21: Change The Settings

    Operation Note: To save energy, the pilot-flame automatically extinguishes when the appliance is not used for a period of 5 days. To avoid this, make two automatic start- 4.4.2 stop actions per week in program mode. See chapter Change the settings 4.4.1 Set the temperature for the thermostatic mode Push and hold the thermostatic mode button until the...

  • Page 22: Set The Countdown Timer Mode

    Operation Select the minutes on which the appliance starts up and push the program mode button. 10. Select the hour and minutes for the stop time of the appliance. 11. If you do not want program 2 active in program mode, wait for the blinking to stop to save the settings.

  • Page 23: Functions To Deactivate / Activate

    Operation 4.5.3 Functions to deactivate / activate • Child lock • Program mode • Thermostatic mode (also deactivates Program mode) • Eco mode • Light / Dimmer operation • Convection fan operation • Burner mode • Countdown timer Gas Fire Front 70-75...

  • Page 24: Maintenance

    Maintenance Maintenance Maintenance schedule Caution: Clean the glass when it is dirty. If the glass is not cleaned when it is dirty the glass can become permanently dull. Task Frequency Procedure Clean the appliance When necessary Refer to section Maintenance by your fitter Yearly Refer to your fitter/dealer Clean the appliance...

  • Page 25: Clean The Anti-Reflective Glass

    Maintenance Clean the anti-reflective glass Warning: Before the start of this procedure make sure the appliance is off and cooled down to room temperature. Caution: • Do not use hard (scouring) sponges, steel wool, abrasive products, caustic products, or cleaning agents that contain ammonia. The use of these items on the glass can damage the coating layers.

  • Page 26: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting table Problem Possible cause Possible solution The pilot light does not come on after three attempts. The burner does not operate within 10 seconds of firing the • Close the gas supply pilot light. • Contact your fitter. When the burner starts you hear a 'boom' sound.

  • Page 27: Troubleshooting Procedures

    Troubleshooting Troubleshooting procedures 6.2.1 Replace the batteries of the remote control Caution: • Only replace the batteries when the appliance is off. • If you put the batteries in an incorrect position, this can cause damage to the electrical connections. •...

  • Page 28: Technical Data

    Technical data Technical data Barbas Gas Fire Front 70-75 PF2 - GB, IE, ES, IT Table 6: Appliance classification Butane G30 Propane G31 Natural gas G20 Biopropane G31 butane G30/propane G31/ Category of appliance natural gas G20 biopropane G31 Country GB, IE, ES, IT CE Product identification no.
  • Page 29 Technical data Table 8: Miscellaneous appliance data Batteries remote control receiver None batteries remote control hand transmitter 2x 1.5V AAA Electrical connection 230 VAC / 50 Hz Auxiliary electricity consumption at nominal heat 0.075 kW output Auxiliary electricity consumption at minimum 0 kW heat output Auxiliary electricity consumption in standby...

  • Page 30: Warranty Terms

    Warranty Terms Warranty Terms To make a claim under the warranty, it is important to register the Barbas appliance after pur- chase via www.barbasbellfires.com. Barbas Bellfires Warranty Terms Barbas Bellfires B.V. guarantees the quality of the supplied Barbas appliance and the quality of the materials used.
  • Page 31 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase. For other parts of the Barbas appliance, a similar warranty applies from the moment of purchase for a period of two years.

  • Page 32: Eu-Declaration Of Conformity

    EU-Declaration of Conformity EU-Declaration of Conformity Gas Fire Front 70-75...
  • Page 33 EU-Declaration of Conformity Gas Fire Front 70-75...
  • Page 34 EU-Declaration of Conformity Gas Fire Front 70-75...
  • Page 35 EU-Declaration of Conformity Gas Fire Front 70-75...
  • Page 36 Your Barbas dealer 001 - 21.02.2022 - 351790 - 236-002...
