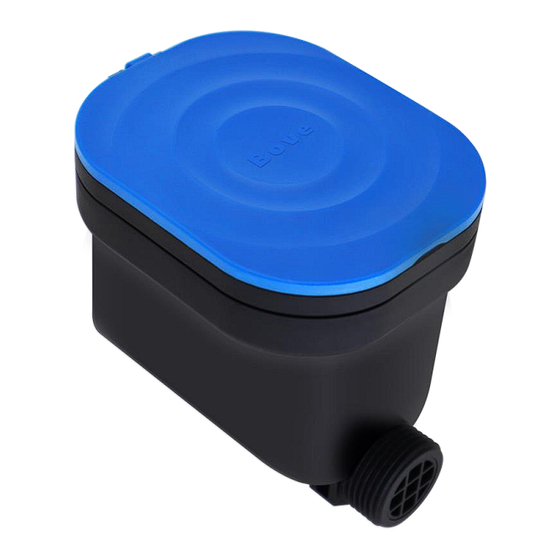

- Page 1 Install ation & User Guid BECO Y Ultrasonic Water Meter Read this Guide before installing the meter www.bovetech.com...
- Page 2 ⚫ Every effort has been made in the preparation of this manual to ensure the accuracy of its contents. However, should you have any questions or find any errors, please contact BOVE TECHNOLOGY. ⚫ Copying or reproducing all or any part of the contents of this manual without the permission of BOVE TECHNOLOGY is strictly prohibited.
-
Page 3: Table Of Contents
CONTENT 1. General Information ............................. 1 2. Technical Specification ..........................1 2.1 Flow Sensor ....................................1 2.2 Calculator ....................................1 2.3 Completer meter ..................................2 2.4 Physical dimensions ..................................4 3. Power Supply ............................... 4 4. Interface & Communication ......................... 4 4.1 IrDA ...................................... -
Page 4: General Information
The flow meter body is equipped with 2 ultrasonic transducers facing 2 acoustic reflectors. Flow sensor data: Manufacturer Bove Type BECO Y Accuracy class Class 2 16 bar ≤ 63 kPa Max pressure loss ℃... -
Page 5: Completer Meter
Connection Flow Rate (m /h) @R800 Type Length Width Height ――― (mm) ¾＇ 0.00312 0.005 BECO Y ＇ 0.005 0.008 ℃ ℃ ℃ Water temperature range (optional) 0.1-30 / 0.1-50 / 0.1-70 (optional) R250 / R400 / R500 / R800... - Page 6 Display & Indication Display unit options 10-digit Display LCD 0.00001 m³ to 99999.99999 m³ Indicator range Always on Time to LCD off Environmental Requirement Mechanical environmental condition Electromagnetic environmental class Mechanical environmental class Ambient temperature 5 ~ 55° C (Indoor and non-condensing) -20 ~ 60°...
-
Page 7: Physical Dimensions
2.4 Physical dimensions 3. Power Supply BECO Y consists of combinations with the following types of batteries(The SPC battery and the 26500 battery are used as a whole, and the SPC does not need to be used as a separate power supply.). -
Page 8: Rs485 (Optional)
Data transmission in the compatibility mode (= standard, one data frame) or in the full mode (3 data frames) possible. If the meter is equipped with “M-Bus”, it is delivered with a two wire cable, which can be lengthened with a cable 2 x 0.75mm2 (put a distributing box). Pay attention to the proper polarity in case of the pulse output. -
Page 9: Operation & Display
5. Operation & Display BECO Y is fitted with an easily readable LCD, including 10 digits, measuring units, and an information field. Name Meaning Battery Alert Check details in chapter 5. Calibration Mode Under calibration Including “Freezing Alert” and “Temperature Alert”... -
Page 10: Operations On How To Display
Liter Gallon Unit m³ m³ /hr 5.1 Operations on how to display Users may use a magnet to trigger the “magnet icon” position to switch menus as shown in the following nameplate sample. There are two kinds of trigger options, long trigger (more than 2 seconds) and short trigger (less than 2 seconds). - Page 11 “Menu F”. Users can switch the 1 level menus by long trigger (more than 2 seconds). Forward Totalizer Menu E Menu I Menu F Keep active more than 2 seconds 4.1.2 Main Menu There are 6 screens under “Main Menu”, including “Forward Totalizer”, “Reverse Totalizer”, “Instant Flow rate”, “Working Hours”, “Diameter”...
- Page 12 4.1.3 Menu E Users can switch the screens under Menu E by short trigger (less than 2 seconds) to check the alert/error information. Low Battery Occur Time Error Keep Time Empty Pipe Occur Time Error Keep Time Reverse Flow Occur Time Error Keep Time Over Range Occur Time...
- Page 13 4.1.4 Menu I Users can switch the screens under Menu I by short trigger (less than 2 seconds) to check the meter parameters, logs, etc. Factory ID Meter ID Baud rate, Parity, Modbus ID Firmware Version Date Time History Date 1 Freezing data History Date 2 Freezing data...
- Page 14 4.1.5 Menu F The following photo shows “Menu F” (Calibration mode only). In “Menu F”, “Accumulated Volume” can reset automatically, when the flow is zero and starts to exceed the preset value then the current accumulated volume is clear to zero. Also, the value can be reset by a long-trigger (more than 2 seconds).
-
Page 15: Alert And Error
6. Alert and Error Item Definitio Reset Solution Meter can work at least 3 months after the battery alert Battery Alert The meter battery is low. happens, the user needs to change the meter within 3 months. The pipe is not full or with air 1. -
Page 16: Fcc Regulatory Conformance
service team for support. The current water temperature Freezing Alert Higher the water temperature. ℃ is lower than 4 7. FCC regulatory conformance This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference. -
Page 17: Ic Regulatory Conformance
8. IC regulatory conformance IC requlatory conformance This device complies with CAN ICES-003(B)/NMB-003(B). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 18 Bove provides comprehensive solutions on flow metering and control to over 30 countries in the globe. We design and manufacture range of flow metering solutions and IoT (internet of things) consumer products, which includes high accuracy water meter, thermal energy meter, testing bench, smart communication softwares for residential, commercial and industrial sectors.
