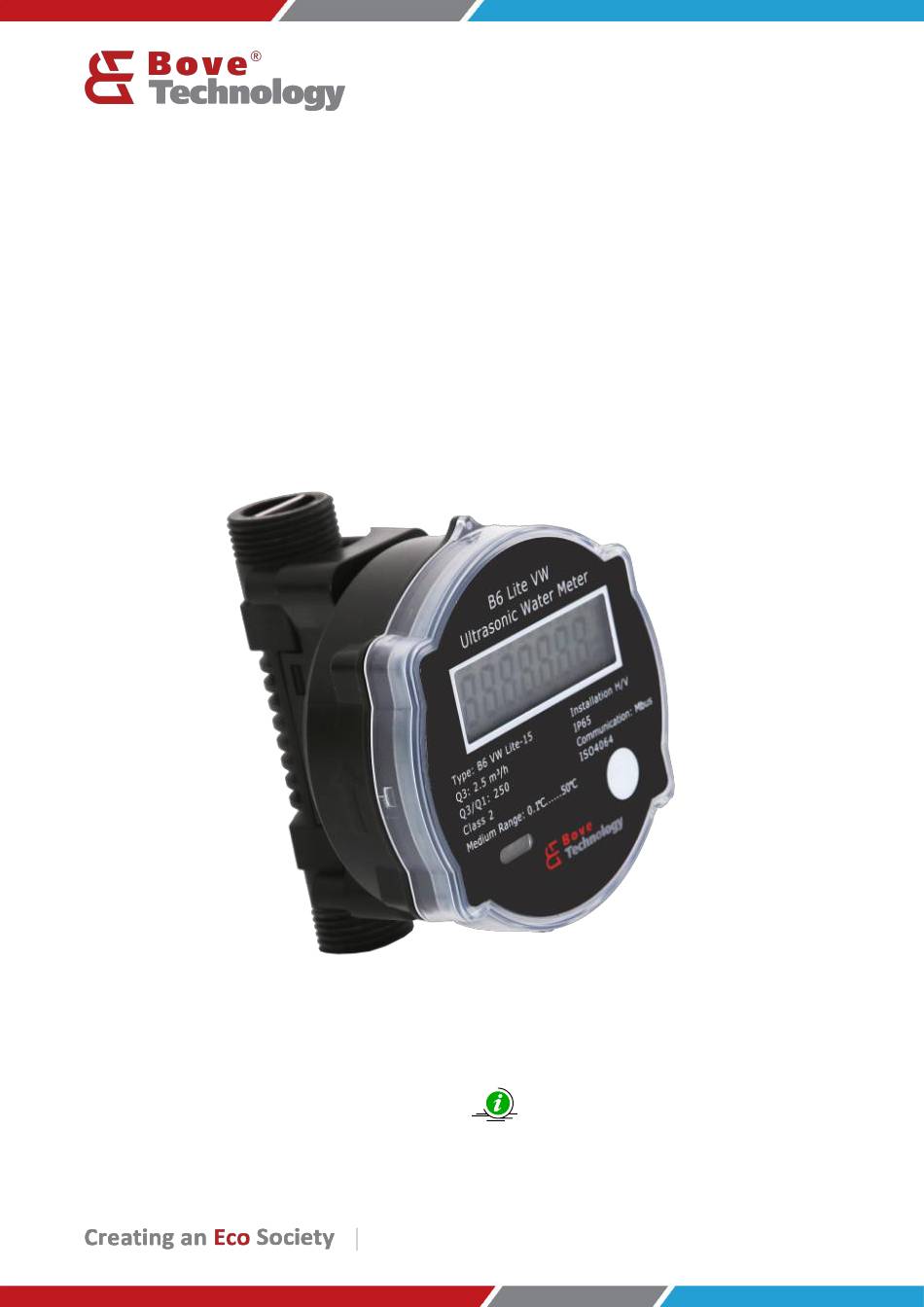

- Page 1 Installation & User Guide B6 Lite VW Ultrasonic Water Meter Read this Guide before installing the meter www.bovetech.com...
- Page 2 BOVE TECHNOLOGY. Copying or reproducing all or any part of the contents of this manual without the permission of BOVE TECHNOLOGY is strictly prohibited. Bove Intelligent Technology Co., Ltd Add: Level 5, Building 5, No. 36,...
-
Page 3: Table Of Contents
CONTENT 1. GENERAL INFORMATION ............................1 2. TECHNICAL SPECIFICATION ........................... 1 ................................1 2.1 F ENSOR ................................1 2.2 C ALCULATOR ..............................2 2.3 C OMPLETER METER ................................4 2.4 D TORAGE ..............................4 2.5 P HYSICAL DIMENSIONS 3. INSTALLATION ................................4 ......................4 3.1 R EQUIREMENTS FOR INSTALLATION ENVIRONMENT .............................. -
Page 4: General Information
1. General Information Please note that the following installation conditions must be obeyed: Pressure Requirement: MAP16. Environmental Class: E1, M1 Installation requirement: There must be a distance of minimum 25 cm between signal cables and other installations Note: Seal or any safety marks on the meter must not be damaged or removed, and doing so will void the warranty and calibration of the meter. -
Page 5: Completer Meter
Bove Manufacturer Flow Measurement Dimensions (mm) Connection Flow Rate (m Type DN (mm) Length Width Height ――― G3/4″ B6 Lite VW-15 0.016 0.0256 3.125 B6 Lite VW-20 0.025 0.04 G1′ G1 1/4′ B6 Lite VW-25 0.039 0.063 7.875 ≤63 KPa Pressure Loss △P... - Page 6 0.001 Scale interval(m 999 99,999 Capacity of calculator Water Type of liquid U5/D3 (recommend U10/D5) Installation requirements Basic mounting orientation and other Horizontal/Vertical specified orientations Display & Indication Display unit options 8-digit Display LCD 0.001m Volume 3 min. Time to LCD off Environmental Requirement E1, M1 Environmental Class...
-
Page 7: Data Storage
2.4 Data Storage Accumulated flow for the current month. Note:1 will be registered at 00:00 on the balance day, and the calculator stores the data of last 24 months. Flow correction coefficient (Only stored when manufacturing). Meter ID. Balance Date. Note:2 to 4 are upgraded as per each command. -
Page 8: Before Installation
Step 2: Sufficient distance.5×DN straight pipe in upstream and 3×DN straight pipe in downstream. (DN: Diameter), (recommend U10/D5) Step 3: The specific seal gasket and connector only supplied by Bove Technology. Step 4: On the two sides of the meter, there should be one filter (if the water is soiled) and two shut-off valves. -
Page 9: After The Installation
must be installed on the water inlet end of meter when installing. 3.6 After the installation The tightness must be proved by pressurizing with cold water, slowly filling the pipe on completion of the installation. Open the shut-off valves carefully and check installation for leakage. While the piping system is operating, check whether the volume display correctly and the temperatures display corresponding with the actual temperatures (see the display information). -
Page 10: Pulse Output (Optional)
Current: M-Bus loads Addressing: primary or secondary Note: A higher frequency is not allowed and may result in meter malfunction! Data transmission in the compatibility mode (= standard, one data frame) or in the full mode (3 data frames) possible. If the meter is equipped with “M-Bus”, it is delivered with a two wire cable, which can be lengthened with a cable 2 x 0.75mm2 (put a distributing box). -
Page 11: Lorawan (Optional)
5.6 LoRaWAN (Optional) EU433 EU868 IN865 US915 ISM Band Class A Class OTAA or ABP Network Access Mode 12.15 Transmitting Power dBm(max) dBm(max) dBm(max) dBm(max) Each 6h as default Data transmission 6. Operation & Display B6 Lite VW Series is fitted with an easily readable LCD, including 8 digits, measuring units and information field. -
Page 12: Operations On How To Display
Valve indicate Valve control meter only Unit Gal Unit Unit Volume and flow rate Wireless communication Reserve Unit Temperature Currency Prepaid mode only Tariff Prepaid mode only 6.1 Operations on how to display Users may touching off the button by magnet to read the meter information such as accumulated volume, current flow rate, etc. - Page 13 6.1.3 Main Menu Touching off the button for less than 2 seconds to display items under the Main Menu one by one in the following order to check the measurement data: Forward Totalizer Flow Rate Working Hour Diameter Display Test Short active less than 2 seconds Keep active more than 2 seconds 10 / 15...
- Page 14 6.1.4 Menu E Touching off the button for less than 2 seconds to display items under Menu E one by one in the following order to check the meter information: Low Battery Occur Time Error Keep Time Error Keep Time Empty Pipe Occur Time Error Keep Time...
- Page 15 6.1.5 Menu I This Menu shows history date records of last 24 logs. Touching off the button for more than 2 seconds to select the log, then flow consumption will be displayed in turn. Factory ID Meter ID Baud rate, Parity, Modbus ID Firmware Version Date Time...
- Page 16 6.1.6 Menu F The following diagram shows Menu F (Calibration mode only). In F mode, Accumulated flow value is able to reset automatically, when flow is zero and starts to exceed the preset value then the current accumulated value is clear to zero. Also the value can be reset by long-trigger the button (over 2 seconds).
-
Page 17: Monthly Data
6.2 Monthly Data The calculator stores the following values for 24 months at each end of month - Volume (meter reading) From the month set day display, press the button shortly to enter the previous month's values. The month values can also be read out via the optical interface and other communication ports. 7. - Page 18 All trademarks in this material are property of the respective companies. Bove and the Bove logotype are trademarks of Bove Technology. All rights reserved. Copyright© 2023 Bove Intelligent Technology Co., Ltd...
