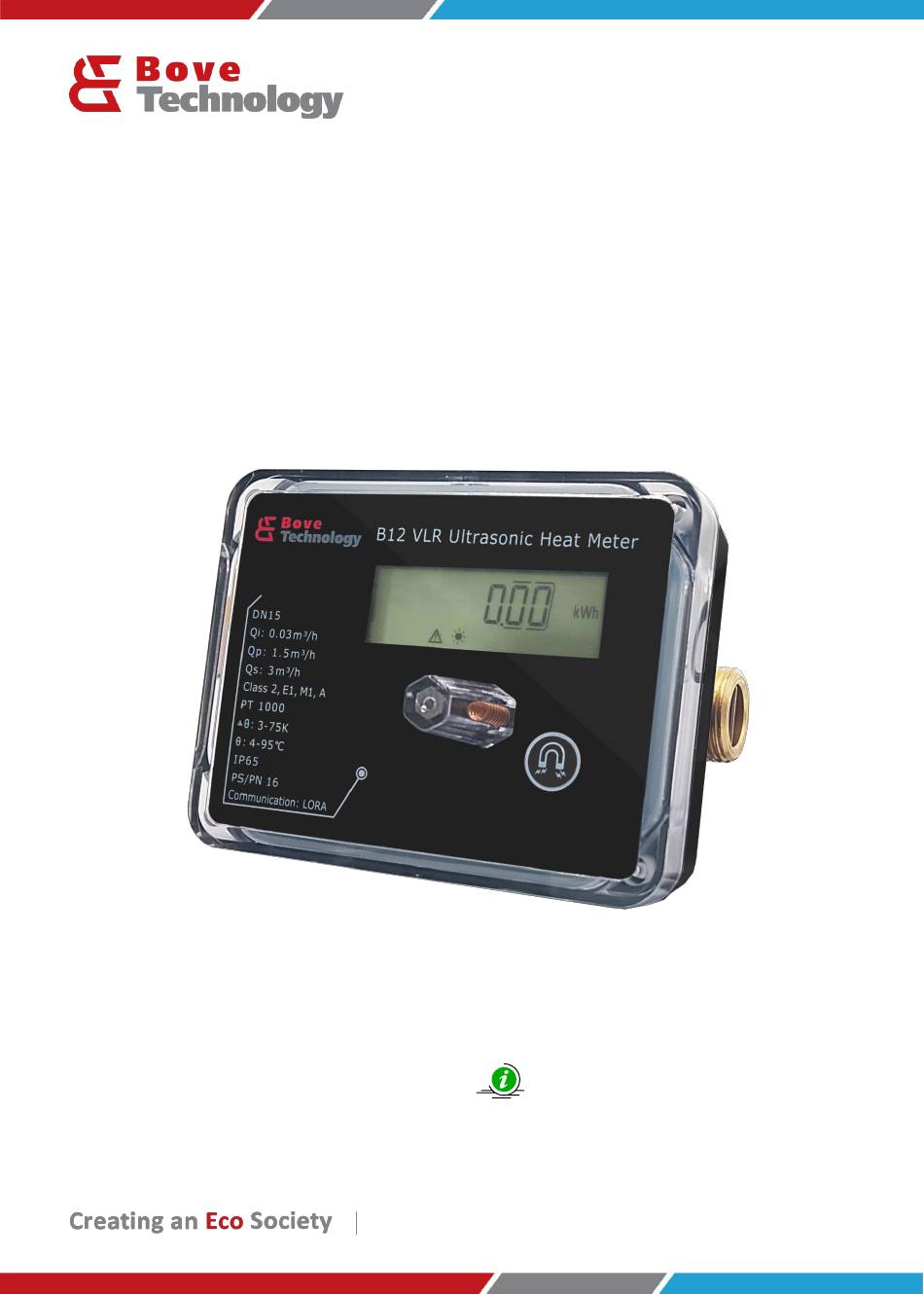

- Page 1 Installation & User Guide B12 VI Ultrasonic Heat Meter Read this Guide before installing the meter www.bovetech.com...
- Page 2 BOVE TECHNOLOGY. Copying or reproducing all or any part of the contents of this manual without the permission of BOVE TECHNOLOGY is strictly prohibited. Bove Intelligent Technology Co., Ltd Add: Level 9, Jiaxing Pioneer Building, No. 1539, ChengNan Road, Jiaxing, Zhejiang, P.R.
-
Page 3: Table Of Contents
CONTENT 1. GENERAL INFORMATION ......................1 2 INSTALLATION ..........................2 2.1 R ....................2 EQUIREMENTS FOR INSTALLATION ENVIRONMENT ............................3 2.2 B EFORE NSTALLATION ..........................3 2.3 M OUNTING OF ENSOR ........................ 4 2.4 M OUNTING OF EMPERATURE ENSORS 2.5 M ........................... -
Page 4: General Information
The flow sensor must not be separated from the Maintenance and repair calculator. B12 VI Series must be connected to a temperature sensor pair type Pt1000. B12 VI Series can be fitted with ER18505 or ER26500 with Battery for replacement operating time of 6/11 years replaceable. -
Page 5: Installation
The below general principles prior to and after mounting the system shall be followed. 2.1 Requirements for installation environment B12 VI Series has been designed for indoor installation in non-condensing environments with ambient temperatures from 5~55° C. The meter must not be under any mechanical stress when installed in the pipe. -
Page 6: Before Installation
All control cables must be drawn separately and not parallel to e.g. power cables or other cables with the risk of inducing electromagnetic interference. There must be a distance of min. 25cm between signal cables and other installations. If two or more meters are to be installed shall be in parallel, the axis-center distance between two meters shall be at least 135mm minimum. -
Page 7: Mounting Of Temperature Sensors
2.4 Mounting of Temperature Sensors Temperature sensors used to measure the flow temperature are usually installed ex-factory, i.e. integrated into the flow pipe. Installation instructions for sensor used to measure pipe and return temperature are as followings: 2.4.1 Matched Pairs The Sensors are color-coded. -
Page 8: Mounting Of Calculator
2.5 Mounting of Calculator The calculator is mounted directly on the plate of flow sensor. Having been mounted, the calculator is sealed with seal and thread. In case of strong condensation or water temperature above 90 ℃, we recommend wall mounting of the calculator. The ambient temperature of the calculator must not exceed 55°... -
Page 9: Power Supply
2. Power Supply B12 VI Series can be fitted with one ER18505 or ER26500 with operating time of 6 or 11 years respectively. Brand Type Lithium Battery Model No. ER18505, ER26500 Rated capacity 4000mAh, 9000mAh Rated voltage 3.6V Max recommended continuous operating current... -
Page 10: Pulse Output (Optional)
Version/Color Pulse M-Bus (2-wire) Pulse M-Bus Black M-Bus 4.3 Pulse Output (Optional) Pulse output for heat or volume, with 2m cable connected, with galvanic isolation Pulse significance: 1 pulse per kWh, 1 pulse per 100 liter or 1 pulse per 0.001 Gcal Pulse length: 100 ms (Programmable) Heat / Volume: specify in order or change with service-software Voltage: max. -
Page 11: Nb-Iot(Optional)
Data transmission Each 12h 4. Operation & Display B12 VI Series is fitted with an easily readable LCD, including 8 digits, measuring units and information field. The display automatically returns to LCD sleep mode 10 minutes after the latest activation of the push button. -
Page 12: Operations On How To Display
Error warning Warnings for error Heat Accumulated heat consumption Temperature of inflow water Accumulated cold consumption Temperature of in/outflow Water temperature in/return pipe water 5.1 Operations on how to display Users may press the button to read the meter information such as Accumulated volume, current flow rate, water temperature, etc. - Page 13 5.1.3 Menu A1 Shortly pressing the button to display items under Menu R1 one by one in the following order to check the measurement data: Copyright© 2018 Bove Intelligent Technology Co., Ltd 10 / 17...
- Page 14 5.1.4 Menu A2 Shortly pressing the button to display items under Menu A2 one by one in the following order to check the meter information: Copyright© 2018 Bove Intelligent Technology Co., Ltd 11 / 17...
- Page 15 5.1.5 Menu A3 This Menu shows history date records of last 36 months. Click the button to select the month, then the month, monthly flow and monthly heat consumption will be displayed in turn. Copyright© 2018 Bove Intelligent Technology Co., Ltd 12 / 17...
- Page 16 5.1.6 Menu A4 The content are similar to Menu A1, but for calibration only. The following diagram shows Menu A4 (Calibration mode only). Copyright© 2018 Bove Intelligent Technology Co., Ltd 13 / 17...
-
Page 17: Monthly Data
5.2 Monthly Data The calculator stores the following values for 36 months at each end of month - Volume (meter reading) - Heat Energy (meter reading) - Cold Energy (meter reading) From the month set day display, press the service button for 2s to enter the previous month's values. -
Page 18: Error And Warning
5. Error and Warning 6.1 Error Display The meter constantly performs self-diagnosis and can display various faults. Visual indication on the LCD display in the event of an error. Error code Meaning How to handle the error Low battery Contact service Check the pipe if stop water supply or Empty pipe the meter in storage... - Page 19 All trademarks in this material are property of the respective companies. Bove and the Bove logotype are trademarks of Bove Technology. All rights reserved. Copyright© 2018 Bove Intelligent Technology Co., Ltd...
