DA-FM1600 INSTALLATION MANUAL

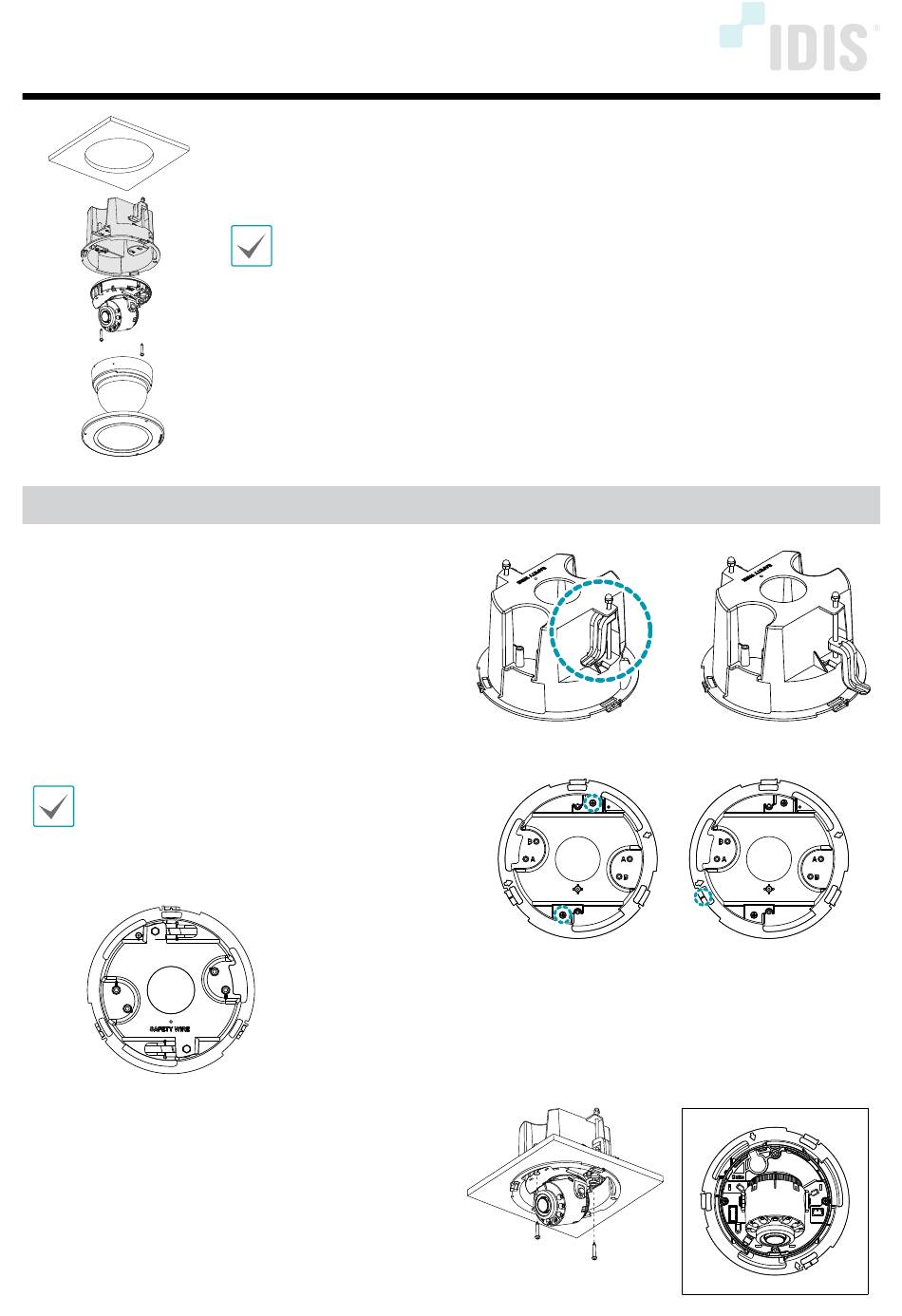

Mounting
1
Make a hole in the ceiling to install the
bracket using the provided guide pattern.
2
Place the foot of the product as shown in the
figure and push it into the ceiling.
3
Mount the bracket to the ceiling, then fix it
by turning the screws clockwise. Refer to the
logo direction when installing the mount.
• Be careful not to tighten the screws with too
much force.
• Satety wire can be applied to the mount if
necessary, but the wire and the screw are not
provided.
4
Use the screws (M4 2ea) provided with the
camera to secure on the bracket.
This manual is intended for the users of the DA-FM1600 ceiling mounting
bracket. It includes the instructions for mounting the DA-FM1600 ceiling
mounting bracket to the ceiling.
• This bracket is intended to be used with DC-D4237RX / DC-D4536RX
/ DC-D4537RXA / DC-D4538RA / TC-D5531RX / TC- D5531RXP / TC-
D5532RX / DC-D4236X / DC-D4236RX. Ask your retailer for details
on a specific model and do not use it with other models of cameras.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the ceiling. If the ceiling is not strong
enough to support the camera, the camera may fall. The ceiling has
to be thicker than 3mm(0.11").
• Do not use this product for other purposes.
< O >
< Screw Points >
< X >
< Logo Points >
