DA-FM2100 INSTALLATION MANUAL
This manual is intended for the users of the DA-FM2100 mounting bracket. It
includes the instructions for mounting the DA-FM2100.

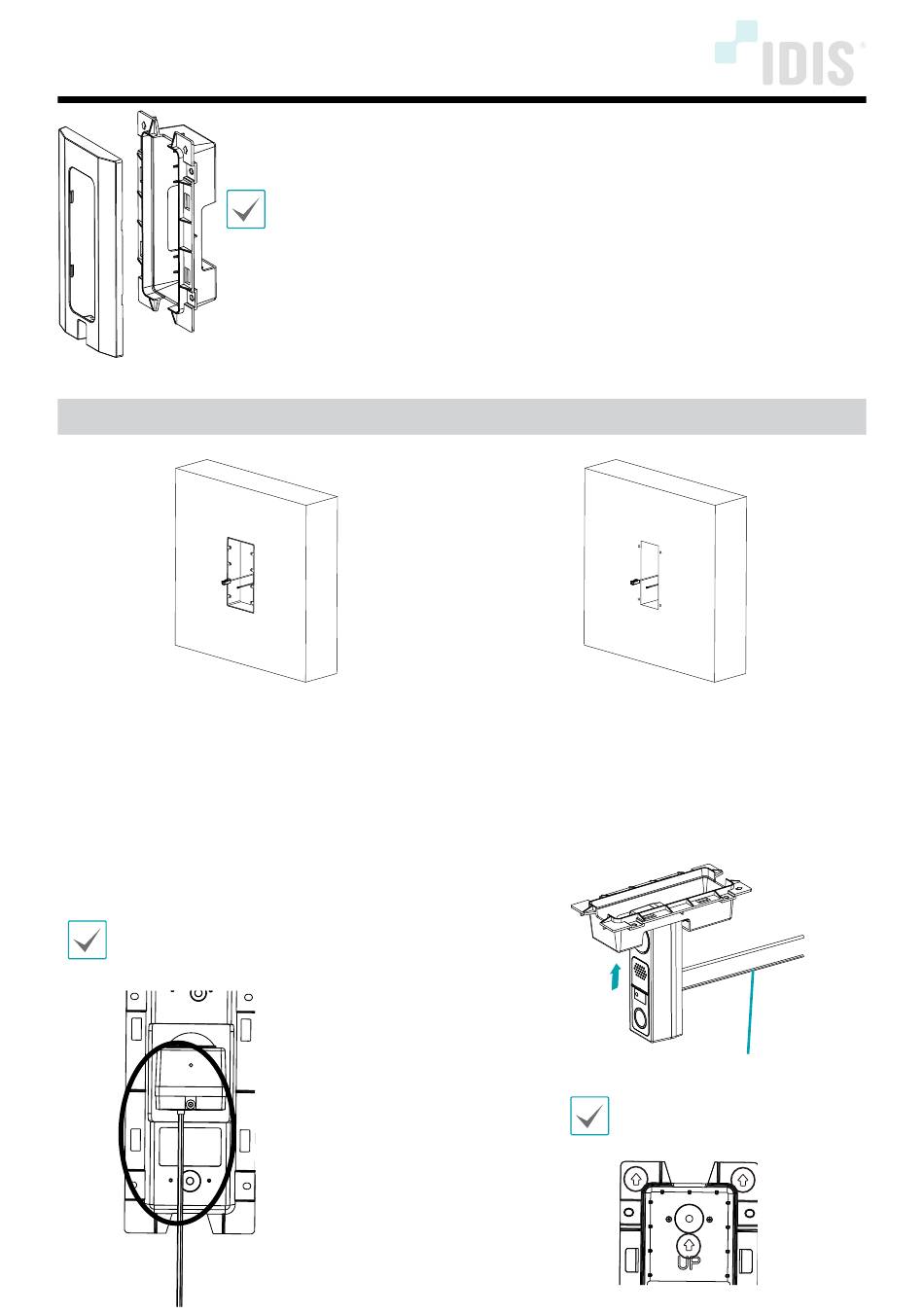

Mounting
• When installing in a 4-gang electrical box (not
provided)
1
Attach the cable connection and installation plate to
the Intercom (DC-I6212WRX) main body.
When inserting the intercom body with cable connection
completed into the back hole of the flush mount, insert it
vertically as shown in the picture below.
• This bracket is intended to be used with DC-I6212WRX model. Ask
your retailer for details on a specific model and do not use it with other
models of cameras.
• This installation should be performed by a qualified service personnel
in conformance to all local codes.
• You may need to reinforce the wall. If the wall is not strong enough to
support the product, the product may fall.
• Do not use this product for other purposes.
• When installing on a regular wall (ensuring a
depth of at least 40mm and a size of at least
178.8mm x 65.8mm for the main body insertion
part), use a flush mount to create an insertion
space.
• When installing on a regular wall, use the 4
provided screws and anchors with DC-I6212WRX.
Install with attention to the
UP direction, as shown in the
picture below.
Cable
