DA-MA4100 INSTALLATION MANUAL
Mounting

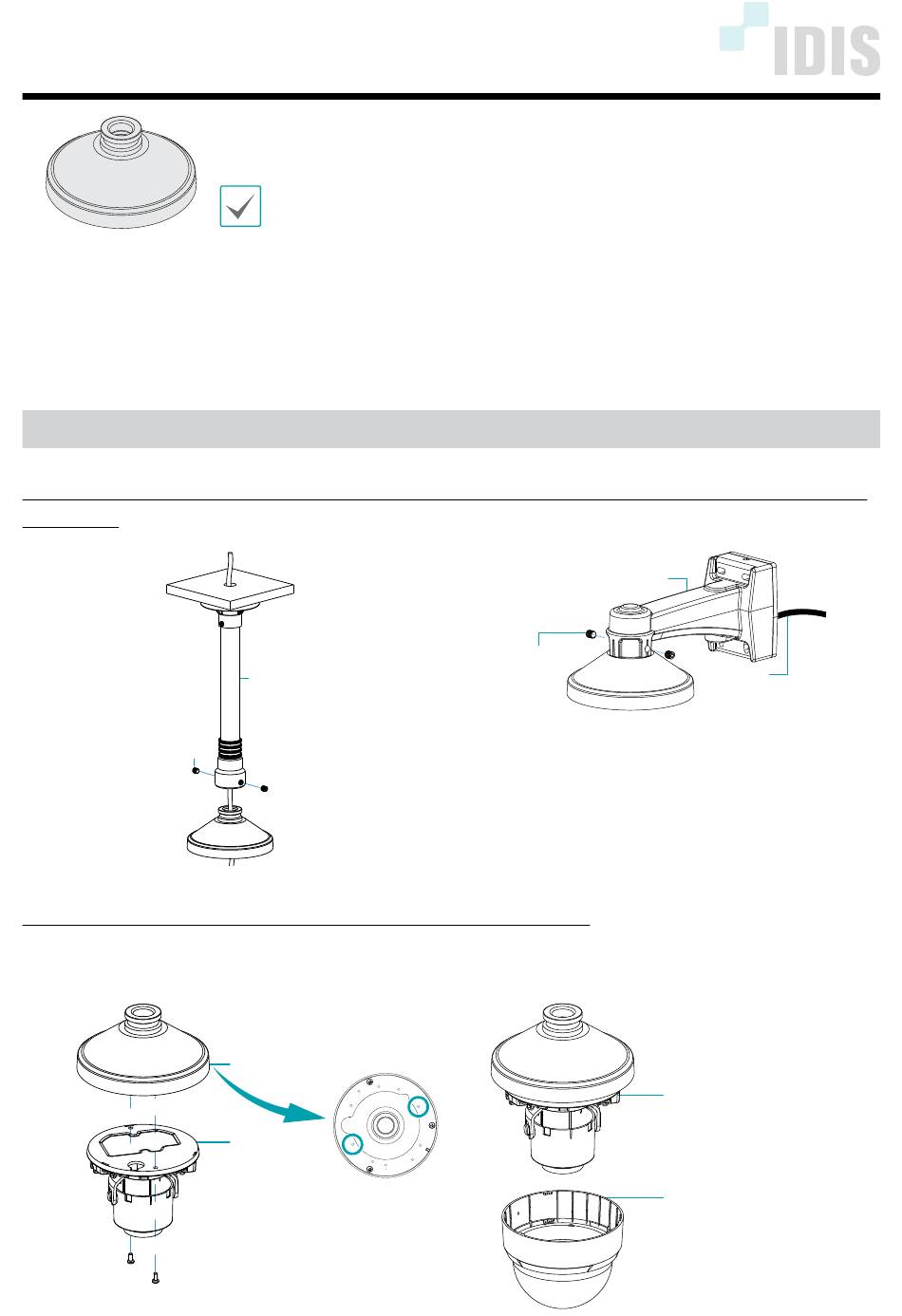

Mount the bracket to the ceiling pipe(DA-CM2050) or wall mounting bracket(DA-WM2050)
as follows:
Screw Set M8X8, 2EA
Connect your camera(DC-D4223RX) to the bracket as follows:
3
Screw the bottom cover onto bracket and then screw the camera dome cover onto the bottom
cover.
This manual is intended for users of the DA-MA4100 mounting bracket. It
includes instructions for mounting DA-MA4100 to DA-CM2050 or DA-WM2050.
• This bracket is intended to be used with a specific model of camera.
Do not use it with other models of cameras except for those
approved by the dealer or distributor.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the ceiling. If the ceiling is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Ceiling Pipe
(DA-CM2050)
Bracket
Bottom
cover
Wall Mounting Bracket
(DA-WM2050)
Screw Set M8X8, 2EA
1
Insert cables from external devices, network and
power adapter into bracket.
2
Assemble bracket into the ceiling pipe (DA-
CM2050) or wall mounting bracket(DA-WM2050)
and fix it by using the screws. The ceiling pipe
and wall mounting bracket are sold separately.
Cable
Bottom
Cover
Camera
Dome
Cover
