Summary of Contents for Shinco SDX1-80P/S3

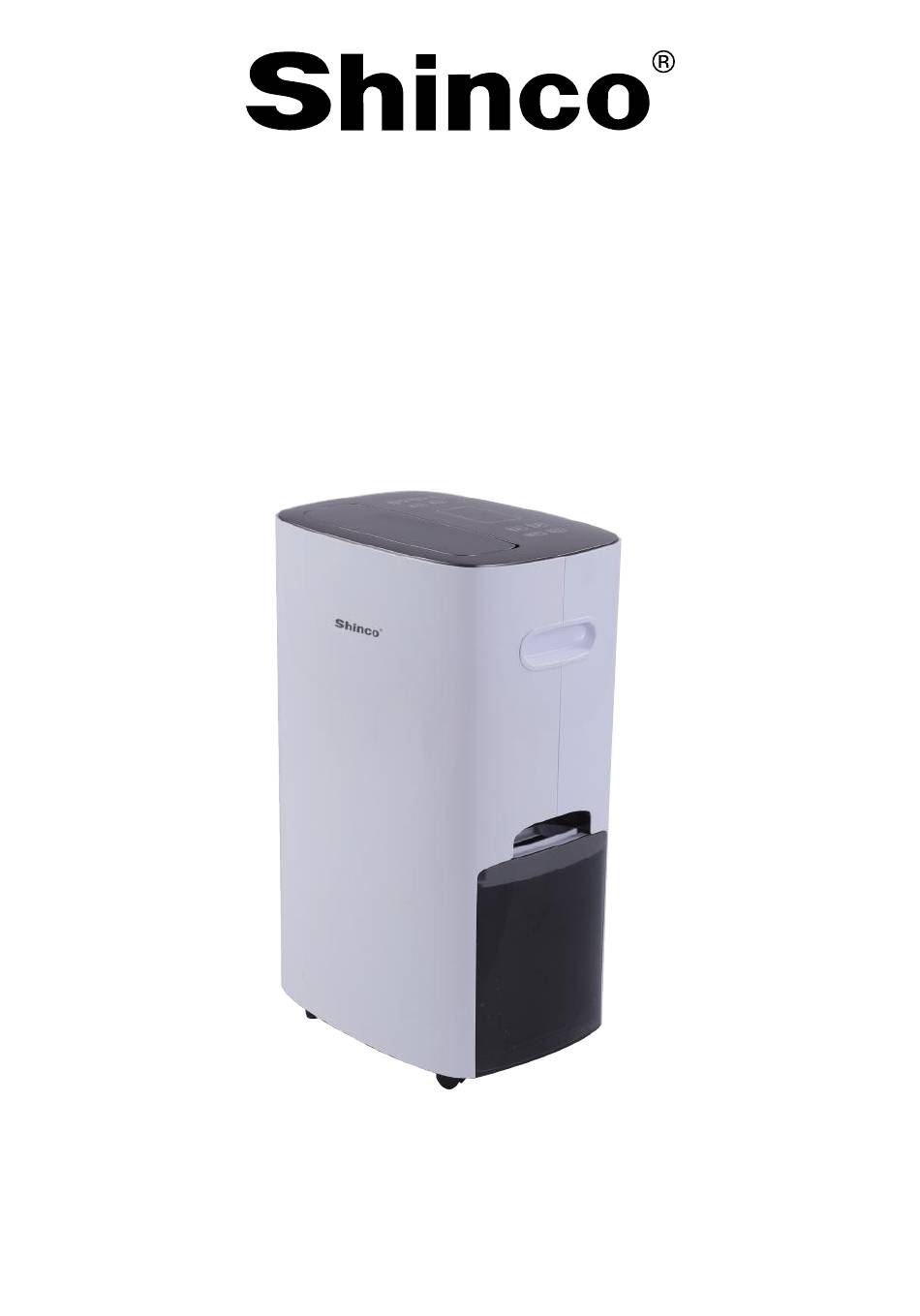

- Page 1 Manual of dehumidifier Model No. SDX1-80P/S3...
-
Page 2: Table Of Contents
Content Important Notice..........02 Important Safety Instructions......03-04 Component Parts ..........05-06 Function Options..........07 Preparation and Confirmation......08 Drying Laundry..........08 How to Operate..........09-11 Continuous Drainage.........12 Maintenance Tips..........13 Operation and Performance.......14 Troubleshooting..........15 Specifications............16 Warranty..............17... -
Page 3: Important Notice
Important Notice Thank you a lot for choosing Shinco's dehumidifier, let it be a member of your family to protect the health of the whole family. Please read the manual carefully before you use the dehumidifier, it will help you operate the machine better, so as to achieve the best effect and extend the life of the machine. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning Carefully read the instructions before operating the unit. • This appliance is for indoor use only and intended for use in a domestic environment only. Any • other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 5 If the appliance is installed, used or stored in an unventilated room, the room must be such as • to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion once the refrigerant comes into contact with electric heaters, stoves or other sources of ignition.
-
Page 6: Component Parts
Component Parts 匠 Top Cover Louver Pre-filter Front Panel Handle Water Tank Cover Back Panel Drainage Outlet Water Tank Handle Cord Tie Water Tank Caster Water Tank Do not remove the Float from the Water Tank, or otherwise the Dehumidifier cannot detect the water level that may cause leakage and malfunction. - Page 7 Component Parts (Cont.) Control panel Key Function 1. Functional Key: Internal drying function of the body;Negative ion function; 2. Swing key: Swing function of louver; 3. Sleep key: Sleep key: Sleep mode; 4. Timer key: Timing setup; 5. Fan speed key: Fan speed adjustment; 6.
-
Page 8: Function Options
In this Mode, the Unit operates intermittently. When the current humidity is higher than the preset humidity level by 5%, the compressor turns on and the Fan starts operating with the preset Fan Speed. When the current humidity is lower than the preset humidity level by 5%, the compressor stops operating, Fan stops running. -
Page 9: Preparation And Confirmation
Drying Laundry Proper use of the Laundry Drying Mode Hang and space the laundry evenly Pointing airflow from the Unit directly at the laundry and spacing the laundry evenly could shorten the laundry Position of the Dehumidifier Shifting the position of the Dehumidifier and the laundry to shorten the drying time. Sort the laundry according to fabric type and thickness and position the laundry accordingly. -
Page 10: How To Operate
How to Operate (Dehumidification and Internal Dry Operation) 骂；c震。 言骂＼言霄 ＼言 。望芦 亿＼言昙？ h p e y res in elec ric shock, fire, he g ener ion, shor circ nd ig ni Warning Proh心ted Pl u g In • Al rm beeps once. - Page 11 How to Operate (Cont.) Fan Speed Fan Speed can be adjusted in both Automatic Mode and Laundry Drying Mode between High airflow mode and Low airflow mode. Swing Press this button to turn on/off the swing function. Function Press Function button to activate the internal dry function. Sleep Press and hold this button for 3 seconds to turn on/off the display.
- Page 12 Insert the Water Tank back Coil up the power cord when moving the Dehumidifier...
-
Page 14: Maintenance Tips
Maintenance Tips Do not plug in or unplug the Dehumidifier with wet hand. Warning Doing so could result in electric shock. No Wet Hand Turn off the Unit and unplug the power cord before cleaning it to prevent electric shock. Unplugging Caution Do not remove the Float from the Water Tank. -
Page 15: Operation And Performance
Operation and Performance How does a dehumidifier work? The Unit draws moist air from the environment and cools it with evaporator. As moist air passes through the evaporator coils, moisture freezes and transforms into water droplet that drips down into the Water Tank. Warm dry Air Evaporator Condenser Moist Air... -
Page 16: Troubleshooting
Troubleshooting Please check the following items of the Dehumidifier before calling for service. Symptoms and remedies 1. The remedies that could resolve the symptoms listed below. Symptom Possible Cause Remedy Plug the power cord fully into Is the power cord properly inserted? the power socket. -
Page 17: Specifications
Model SDX1-80P/S3 Power source 115V~60Hz Moisture Removal (65°F,60%RH) 22 Pints/Day(10.4L/Day) Moisture Removal (80°F,60%RH) 32Pints/Day(14.7L/Day) Moisture Removal (86°F,60%RH) 63Pints/Day(29.8L/Day) Highest Moisture Removal 86Pints/Day(40.7L/Day) Input Power(65°F,60%RH) 200W Total Current 3.0A IEF(65°F,60%RH) 2.0L/kW/H Motor Fla 0.32A Motor Compressor(Rla/Lra) 2.6A/14.0A Refrigerant R32/225g Maximun Allowable Pressure 5.0MPa... -
Page 18: Warranty
Warranty TO OBTAIN WARRANTY SERVICE: Please contact us by email. Sales support: service@shinco.net WARRANTY PERIOD: Labor: 1 Year from the Date of Purchase. Parts: 1 Year from the Date of Purchase. Jiangsu Yoau Intelligent Technology Co.,Ltd reserves rights to upgrade products without user...
