Manual of dehumidifier
Model No. SDZ-10D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDZ-10D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinco SDZ-10D

Summary of Contents for Shinco SDZ-10D

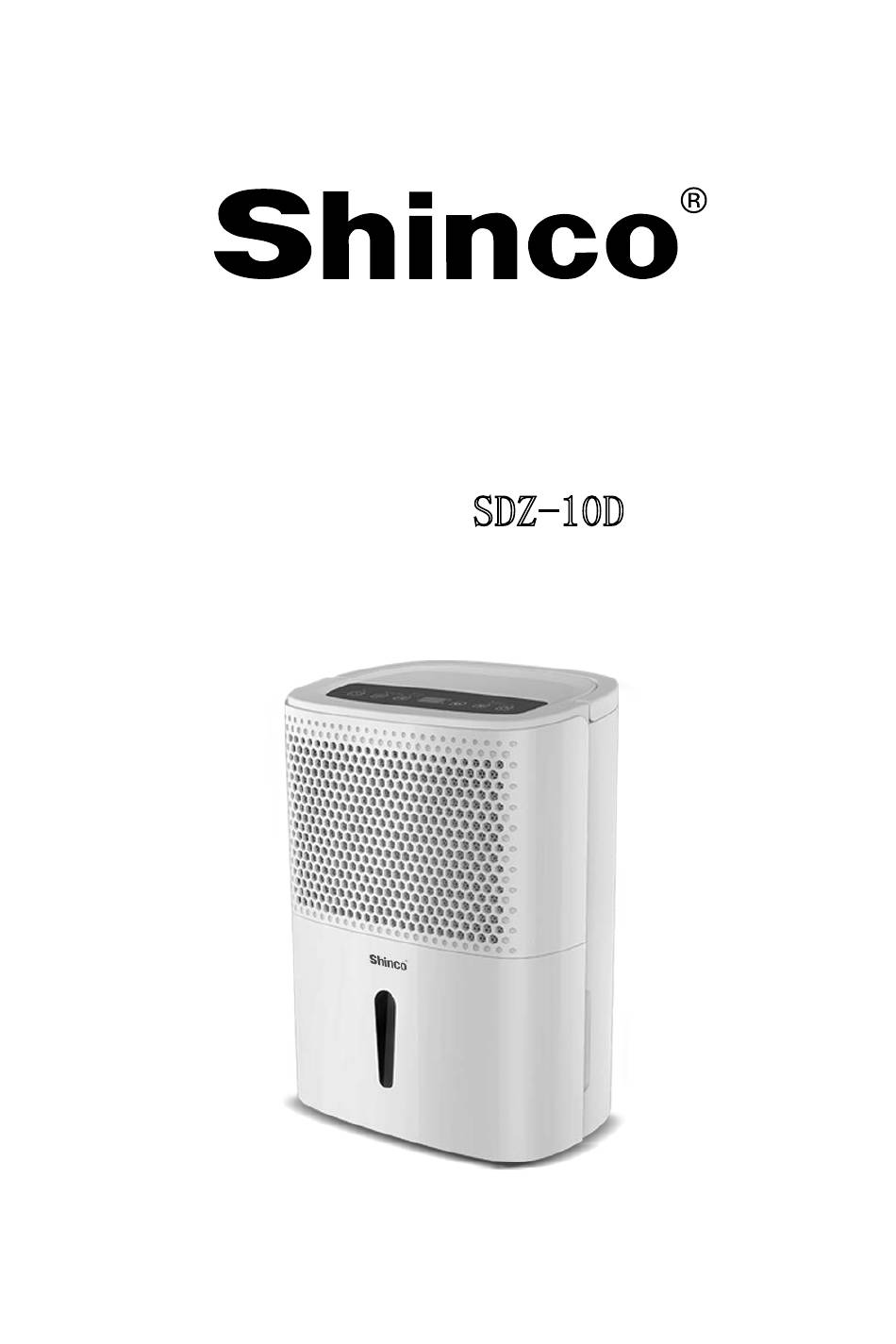

  • Page 1 Manual of dehumidifier Model No. SDZ-10D...

  • Page 2: Dear Customer

    Dear customer Thank you for having chosen a Shinco product. The Shinco products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.
  • Page 3 Do not repair the device by yourself. Please contact authorized personnel. In order  to avoid hazards a damaged mains cable must be replaced with an equivalent cable by the manufacturer or qualified specialist. Except for cleaning and maintenance work described in this manual, no other ...

  • Page 5: Product Description

    Environmental Information This unit contains fluorinated greenhouse gases covered by the Kyoto Protocol. Maintenance and disposal must be carried out by qualified personnel only. (R134a, GWP=1430). The materials used for packaging can be recycled. You are therefore  recommended to dispose of them in special differentiated waste collection containers.

  • Page 6: Electrical Connection

    Electrical connection Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service. After moving the appliance, wait at least an hour before turning it on again. ...

  • Page 7: Control Panel

    Control Panel Notes: - Water tank must be correctly installed for the dehumidifier to operate. - Do not remove the tank while unit is in operation. - If you want to use drain hose to drain water away, please install the hose according to section “continuous external draining”.

  • Page 8: Turning Off

    - Allow at least 24 hours for the dehumidifier to achieve the humidity level. If you still have damper air than desired, set the humidity level to a lower setting or select Continuous for maximum dehumidification. - After a period of working, when the environment humidity is lower than the selected humidity by 5%, the compressor will stop and fan stops working after a presetting time later.

  • Page 9: Other Instructions

    Other instructions Water tank full indicator light Glows when the tank is ready to be emptied, or when the tank is removed or not replaced in the proper position after a few minutes. Auto shut off The Water Level Control Switch shuts off the dehumidifier when the water tank is full, or when it is removed or not replaced in the proper position.

  • Page 10: Continuous External Draining

    Fig. 1 Fig. 2 B) Continuous external draining If the appliance is to be operated for long periods but you are unable to empty the tank regularly, you are recommended to use the continuous drain facility. 1. Plug a plastic pipe (with an inner diameter of 9mm) to draining hole. 2.

  • Page 11: Cleaning And Maintenance

    Cleaning and Maintenance Always unplug the appliance from the power socket before performing any cleaning or maintenance operations. For safety reasons, never wash the dehumidifier using a jet of water. Cleaning the cabinet - Clean the appliance using a damp cloth then dry with a dry cloth. - Do not use petrol, alcohol or solvents to clean the appliance.

  • Page 12: Storing The Dehumidifier

    Clean the air filter Store the unit upright in its original packaging to keep it free of dust. Store in a cool and dry place. Specifications Model SDZ-10D Specification Power Supply 220-240V~50Hz Power Input 240W Rated current 1.3A...

  • Page 13: Troubleshooting

    Troubleshooting You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling service centre. Problem Possible Cause Solution Has the power cord been Plug the power cord into disconnected? the outlet.
  • Page 14 Display code Instrustion The water tank is full The coil sensor has error,abnormal The temperature sensor has error,abnormal The unit is in the defrosting state,normal The unit is in the internal drying state,normal Child lock funtcion starts Disposal – Environment policy Disposal The appliance is manufactured using recyclable material.

  • Page 15: To Obtain Warranty Service

    Guarantee TO OBTAIN WARRANTY SERVICE: Sales support: service@shinco.net Working Time : From 8:30AM to 5:00PM Monday through Friday WARRANTY PERIOD: Labor: 1 Year from the Date of Purchase.
