Summary of Contents for Shinco SDZ1-30P

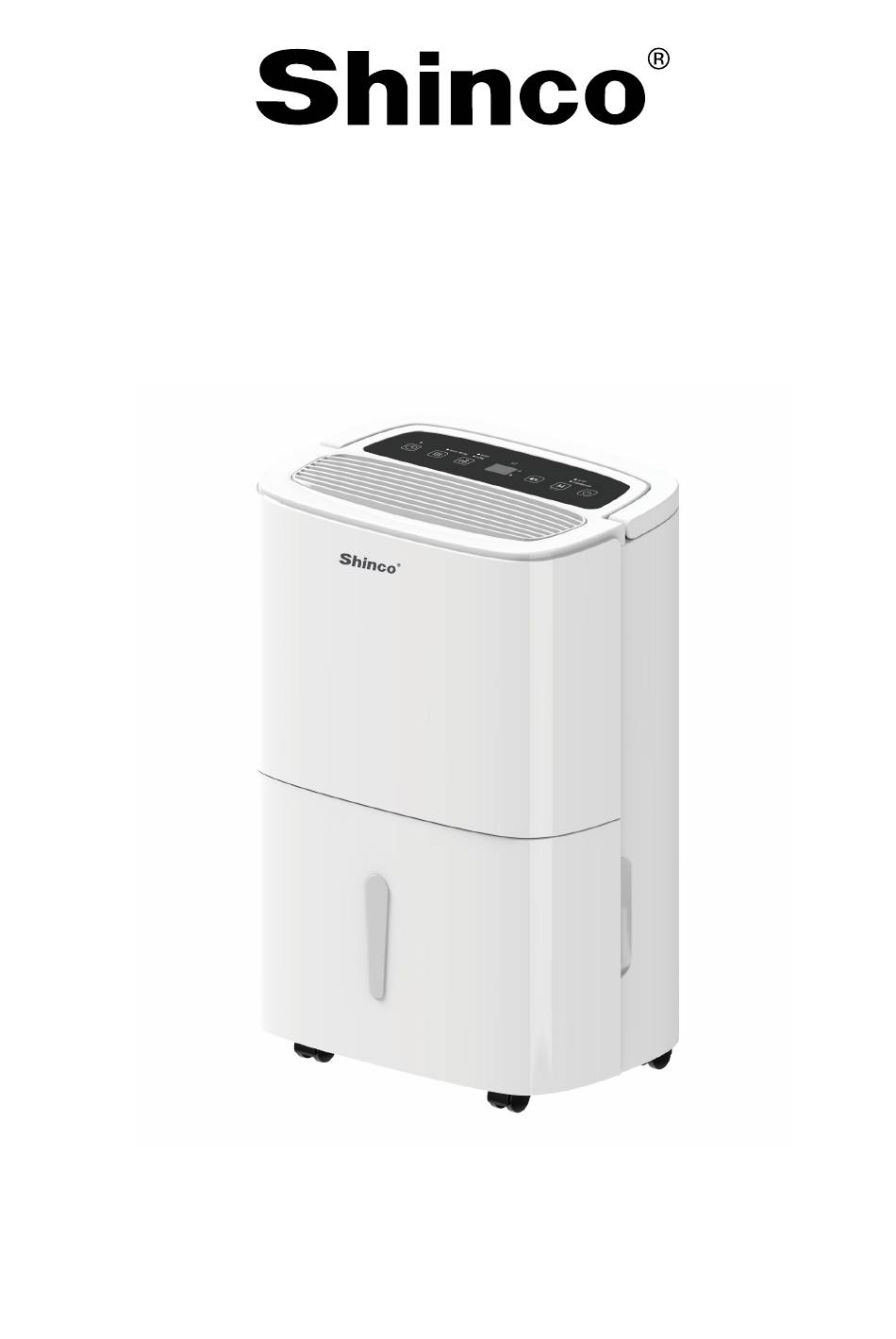

- Page 1 Manual of dehumidifier Model No. SDZ1-30P...
-
Page 2: Table Of Contents
Table of Contents Safety Warning…..............2 Frequent enquiries..............3 Installation…................4 Components................5 Control Panel................6 Operation Methods..............7 Drainage..................8-9 Maintenance................10 Troubleshooting................ 11 Technical Parameters.............. 12... -
Page 3: Safety Warning
Safety Warning For your safety, please read the following contents carefully before using this dehumidifier: Requirements: Install this humidifier in smooth place to reduce vibration and noise. Do not place this dehumidifier in water or other liquids. In order to prevent accidents, please do not use this dehumidifier if wires or other connections are damaged. -
Page 4: Frequent Enquiries
Frequent enquiries Q: Why is less water stored in water tank of the dehumidifier in winter? In winter temperature is low and air is dry. In comparison with summer, the dehumidification ability of the dehumidifier decreases remarkably, this is not a fault. Q: Why the dehumidifier cannot run or stops running suddenly？... -
Page 5: Installation
Installation Please drain the water from water tank before running. During running please do not open doors and windows as much as possible since this can save energy resources. When the dehumidifier is installed, a certain space must be reserved ... -
Page 6: Components
Components Front side Control panel Water tank cover Front panel ater tank handle Back panel Water tank Back side Handle Filter frame Drain plug Wrapping post Castor... - Page 7 Timer 24h timer setup, press this key to set on/off time of the dehumidifier, and the setting range is 1-24h. If you cancel timer setup, press twice continuously after confirmation of setting time. Dry key in dehumidifier Press this key start drying procedure in the dehumidifier Air speed In AUTO or CONTINUOUS mode air speed, HIGH and LOW can be circularly selected.
-
Page 8: Operation Methods
Operating methods Description of functions Setting of timer off When the dehumidifier is running, press the [Timer key] to adjust time from 1h to 24h, pressing the key once to increase the setting time by 1h, after the setting time exceeds 24h, the figure returns to 1 to start cycle. -
Page 9: Drainage
Drainage 1. Use of water tank When the water tank is full of water, the full water icon on LED flashes (the compressor, fan and negative ion will stop running), the BUZZER sounds for 10 times to remind the user till water is drained. Place both hands... - Page 10 2. Continuous drainage If you do not want to drain water in the water tank frequently, you can onnect a drainage pipe on the back of this dehumidifier to drain water. Two kind of pipe is optional . One is inner diameter 9mm ,which provided by manufacturer.
-
Page 11: Maintenance
Maintenance Precautions: Please disconnect power supply before maintenance or repair to prevent electric shock. If the dehumidifier is not used for long time, please disconnect power supply. Please do not clean the dehumidifier body with chemical solvents such as ... -
Page 12: Troubleshooting
Troubleshooting If the following problems occur to the dehumidifier, the following solutions can be adopted. Symptoms Possible reasons Solutions Does power plug fall? Insert power plug into socket. Is the water tank full of water? (the Drain water from the water water tank is full of water or is placed tank, and then install... -
Page 13: Technical Parameters
Technical Parameters Model SDZ1-30P Operating voltage 110-120V/60Hz 60Pts(86 F/RH90%) Dehumidification ability 30Pts(80 F/RH60%) 24Pts(6 5 F/RH60%) Rated power 260W Capacity of water tank Net Weight 28.7lbs Dimensions (in) 20.1x13.5x9.4 (HxWxD) All data are for reference only, and are modified for improvement... - Page 14 When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge TO OBTAIN WARRANTY SERVICE: Sales support: service@shinco.net Working Time : From 8:30AM to 5:00PM Monday through Friday Standard (Eastern) Time WARRANTY PERIOD: Labor: 1 Year from the Date of Purchase.
Need help?
Do you have a question about the SDZ1-30P and is the answer not in the manual?
Questions and answers

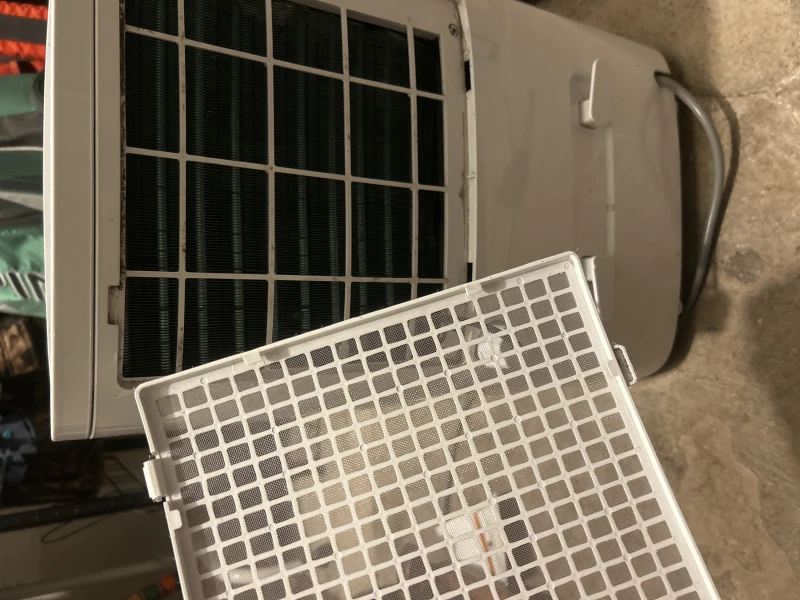

My Shinco SDZ1-30P dehumidifier keeps freezing up and the coils get covered with ice when i try to run it.. i have used it successfully for a few years and this has just started happening. I have cleaned the screen in the back and wiped down the coils.. what else can i do to try to fix the problem? Thank you.
The Shinco SDZ1-30P dehumidifier may freeze up due to cold room temperatures. When in dehumidifying mode, the unit absorbs humid air and freezes it to reduce humidity. This is a normal operation process. If the unit is in the defrosting state, it will automatically defrost.
To fix this issue:
- Ensure the room temperature is not too low.
- Allow the unit to complete its defrost cycle.
- Check if the unit is in automatic defrosting mode.
If the problem persists, refer to the troubleshooting section of the manual.
This answer is automatically generated
