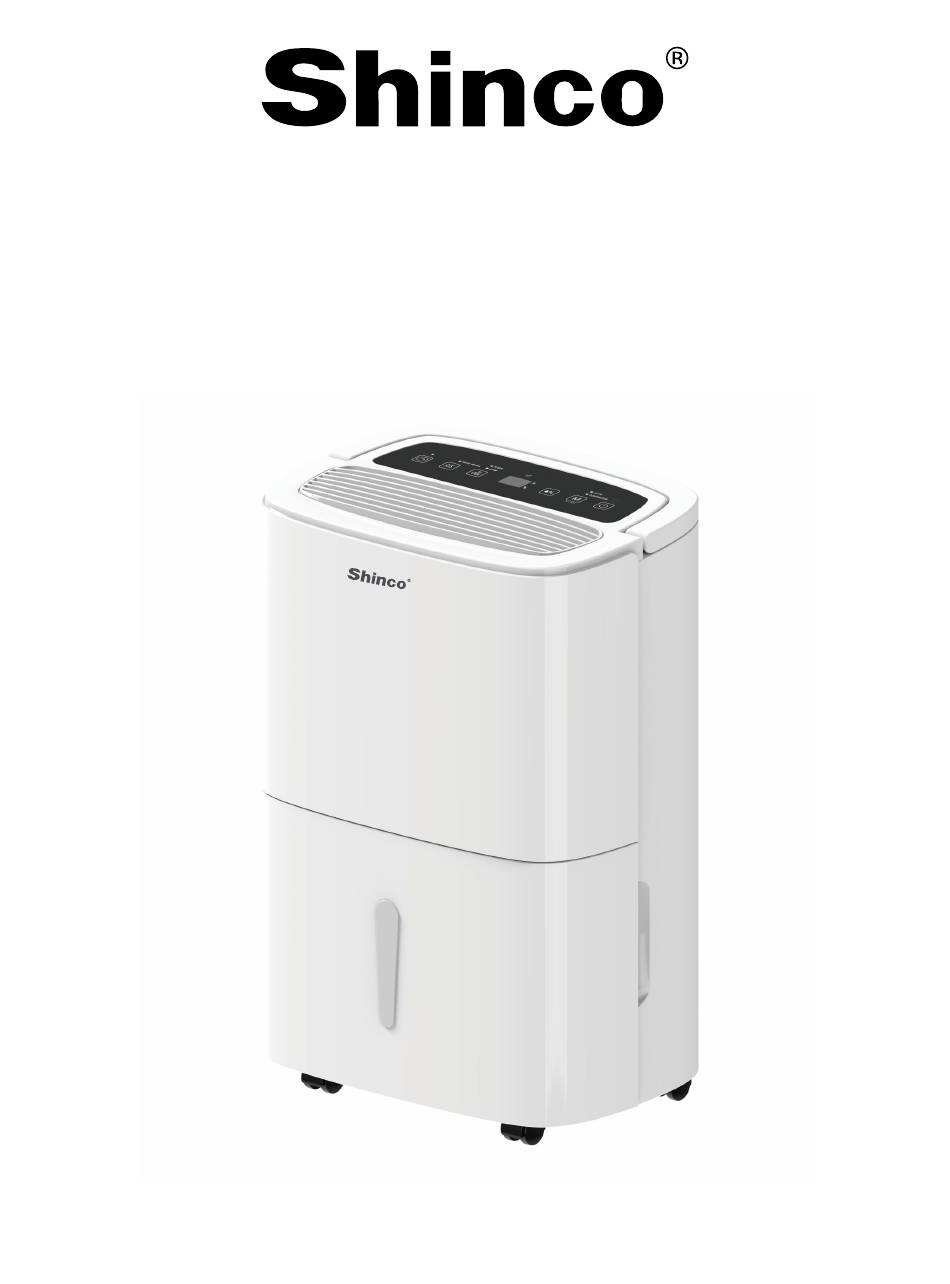

- Page 1 Manual of dehumidifier Model No. SDZ1-30P...
-
Page 2: Table Of Contents
Content Important Notice..........02 Important Safety Instructions......03 Location & How it works ........05 Product Overview..........06 Operation Instruction........07 Removing Collected Water........09 Care and Cleaning & Storage......11 Troubleshooting..........12 Technical Data...........13 Warranty............14... -
Page 3: Important Notice
IMPORTANT NOTICE Thank you a lot for choosing Shinco's dehumidifier, let it be a member of your family to protect the health of the whole family. Please read the manual carefully before you use the dehumidifier, it will help you operate the machine better, so as to achieve the best effect and extend the life of the machine. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning Carefully read the instructions before operating the unit. • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 5 Before moving the appliance,the water tank should be emptied. • The handle on the appliance is designed to aid in its movement and should not be used to • support the full weight of the dehumidifier. When carrying the unit, it should be kept upright and sufficiently supported from its base.
-
Page 6: Location & How It Works
First, humid air is pulled into the Shinco dehumidifier through the grill on the front of the unit. The warm, moist air is pulled across freezing-cold pipes where... -
Page 7: Product Overview
Product Overview... -
Page 8: Operation Instruction
Operation Instruction 1. Plug the power cord into a properly grounded 115 volt AC outlet. 2. To turn the unit on, press the ON/OFF button. The unit will run n the factory setting of AUTO mode and low fan speed. And the default dehumidification is 50%.And the unit will display the RH,if the room humidity drops to 50%, the machine will automatically shut down. - Page 9 5.You can also press to change the fan speed to HIGH or LOW. The indicator light will show the setting you have selected. A higher fan speed will result in quicker moisture removal. Then to run the dehumidifier for a preset amount of hours, press ."0"...
-
Page 10: Removing Collected Water
Removing Collected Water There are two ways to remove collected water: 1. Use the bucket When the bucket is full, remove the bucket and empty it. Do not move the unit at this time otherwise water may spill on the floor. - Page 11 Note: Make sure the connection is tight and there is no leaking. Lead the water hose to the floor drain or a suitable drainage facility, the drainage facility should be lower than the drain outlet of the dehumidifier. ...
-
Page 12: Care And Cleaning & Storage
Care and Cleaning & Storage Warning: Turn the dehumidifier off and remove the plug from the wall outlet before cleaning. 1. Clean the bucket Clean the bucket with water every two weeks. 2. Clean the air filter Clean the filter with potable water at least once every 30 days. (Notes: It must be air-dried naturally after cleaning. -
Page 13: Troubleshooting
When you press the Mode button for 3s,this code will display on the screen. Code (Please contact our Customer Service by writing an email to: service@shinco.net. if dehumidifier operates abnormally or does not operate, and the solutions above are not useful.) -
Page 14: Technical Data
TECHNICAL DATA SDZ１-30P Model Color white Power supply 110~120V/60Hz Power input (w) Rated current(A) Specification Moisture Removal (80°F,RH60%) Water tank capacity(Water full)(Liter) Refrigerant R410A ３９ Noise level (dbA) Type Mechanical/Electronic Electronic Timer Display water-full alarm Features cloth-dry function Continuous drianage function Frost prevention Net Weight (Kg) Specification... -
Page 15: Warranty
TO OBTAIN WARRANTY SERVICE: Please contact us by email. Sales support: service@shinco.net WARRANTY PERIOD: Labor: 1 Year from the Date of Purchase. Parts: 1 Year from the Date of Purchase. SHINCO Electric Co., Ltd reserves rights to upgrade products without user notice.
Need help?
Do you have a question about the SDZ1-30P and is the answer not in the manual?
Questions and answers
Where the # normally displays it's been saying HI for couple days but blowing out cold air not collecting water..
When the Shinco SDZ1-30P displays "HI" and blows out cold air without collecting water, it likely means the room temperature or humidity is outside the optimal operating range. The dehumidifier works best between 61–90℉ and 30%–80% relative humidity. If the temperature or humidity is too high or too low, the unit may not function properly, resulting in cold air output and no water collection.
This answer is automatically generated
@Mr. Anderson How would I correct it without turning air on
I have attached a hose to the back of the unit but the machine fills the bucket and water is not coming out of the hose
Water may not be coming out of the hose on the Shinco SDZ1-30P due to the following reasons:
1. The hose is too long or bent, creating pressure that prevents drainage.
2. The end of the hose is submerged in water, causing back pressure.
3. The hose is blocked by dirt and needs cleaning.
Check hose installation and positioning to ensure proper drainage.
This answer is automatically generated
How do you disconnect and devert the water flow from the tank to the dranage hose.
To disconnect and divert the water flow from the tank to the drainage hose on the Shinco SDZ1-30P:
1. Cut off the power to the unit.
2. Unscrew the water cap by turning it counterclockwise and pull out the rubber water plug from the drainage outlet.
3. Connect a water hose (inner diameter 9 mm, wall thickness 2 mm, length 60 cm) to the drainage outlet.
4. Ensure the hose connection is tight with no leaks.
5. Lead the hose to a floor drain or suitable drainage facility that is lower than the drain outlet.
6. Make sure the hose slopes downward to allow smooth water flow.
Improper setup may cause water to fill the bucket and shut off the unit.
This answer is automatically generated
On the right rear panel of my Shinco SDZ1-30P dehumidifier there is a 1" x 1" grid of small holes under the filter panel. What is the grid of holes for?
