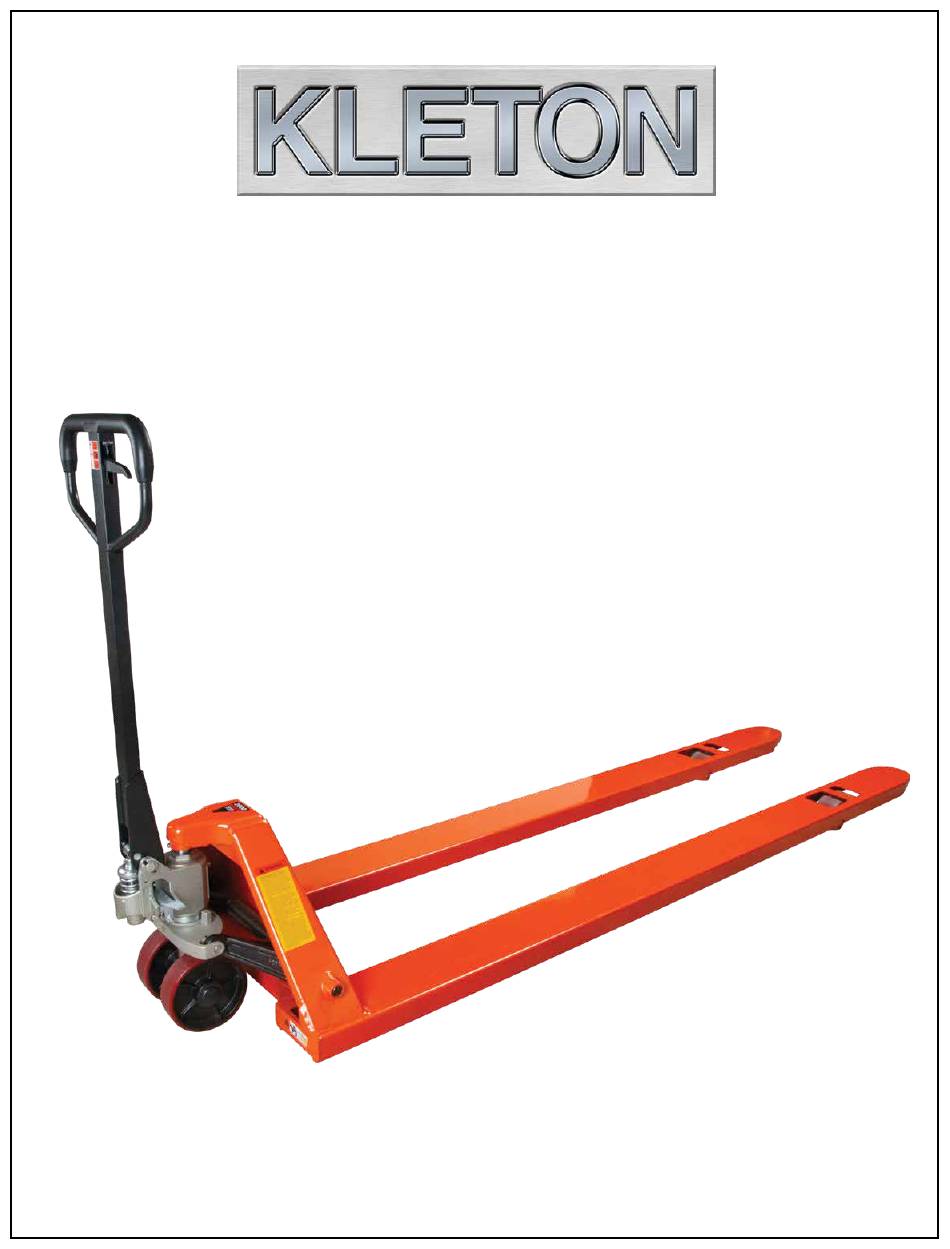

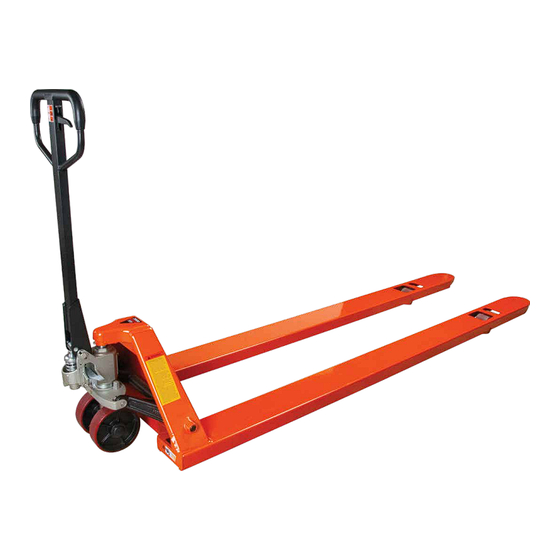

- Page 1 HYDRAULIC HAND PALLET TRUCK (MQ019) INSTRUCTION MANUAL...
- Page 2 WARNING! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 11,000 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. •...
- Page 3 *** IMPORTANT - CHAIN**** Make sure that handle pin is Before this step, make sure to completely through the handle feed the chain on the outside and resting on the other side. of the piston stem roller (see yellow arrow). If left in its proper position, it will not be possible to insert the handle pin and chain, breakage may occur.
- Page 4 OPERATING PALLET TRUCK To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWN NEUTRAL Figure 2 To lower forks, pull lever to DOWN position (upper part of the slot). To freely move the handle, set the lever in NEUTRAL (center notch of the slot). To lift a load: 1.
-
Page 6: Technical Parameter
TECHNICAL PARAMETER Standard MQ019 Model 4400 lbs. Capacity 2000 kg 7-7/8" Raised Height 200mm 3-3/8" Lowered Height 85mm 6-1/4" Fork Width 160mm 27” Fork Outside Distance 685mm 7"Φ x 2" Steer Wheel Diameter Φ180 × 50mm 3-1/8" Load Wheel Diameter... -
Page 7: Troubleshooting
TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Hydraulic unit does Steel ball not seated in hydraulic unit See “Cleaning Relief Valve"... - Page 8 HYDRAULIC HAND PALLET TRUCK ASSEMBLY...
- Page 9 Ten Part # Description Ten Part # Description MJ552 Handle Assembly MJ643 Hex Nut MJ588 Wheel Shaft Rocker Arm Screw M8x60 Pump Assembly Washer MJ584 Bearing Single Loading Wheel Base Tanden Loading Wheel Nipple Bushing Snap Ring MJ572 Spring Pin 5x40 MJ585 Spring Pin 5x30 Shaft...
