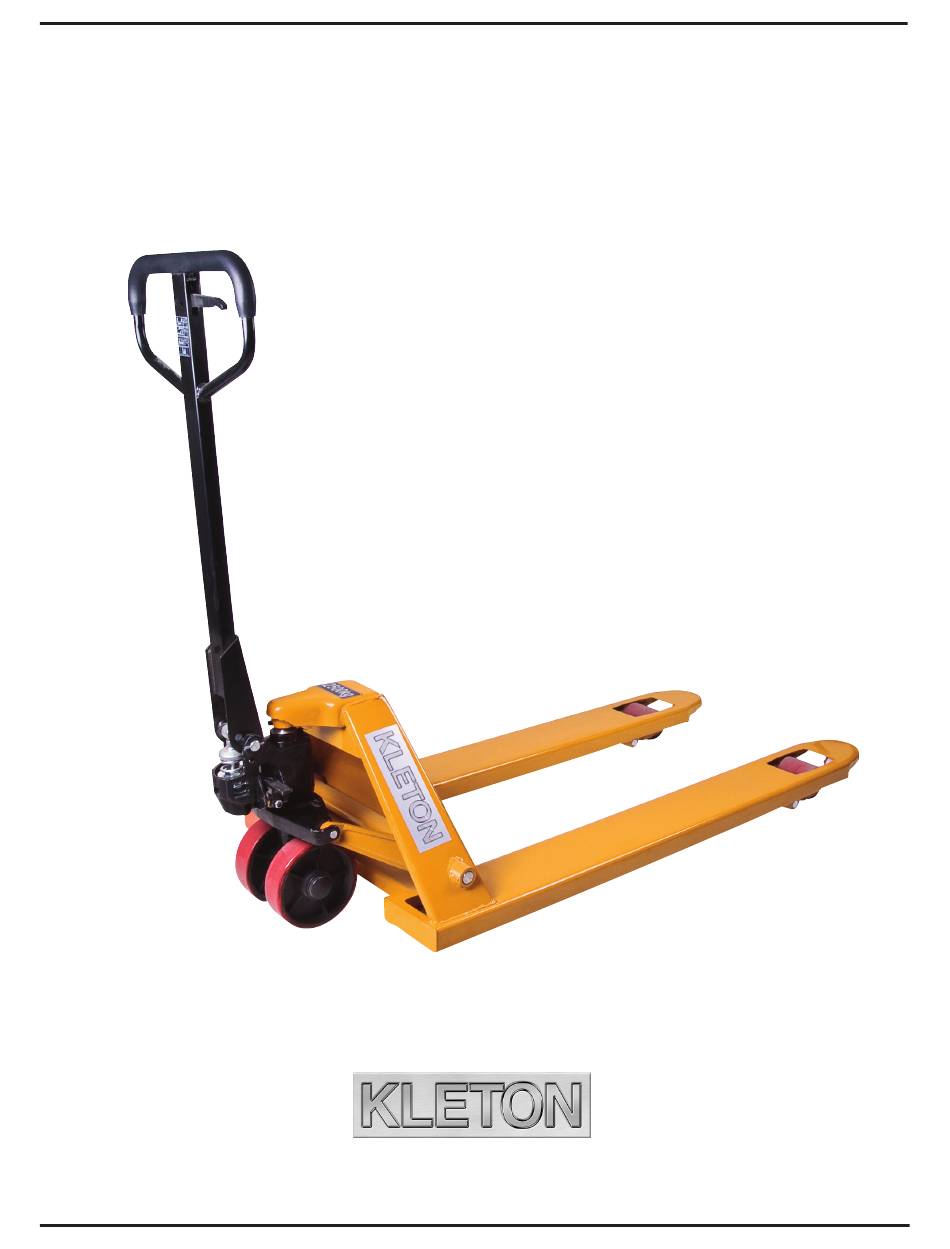

Instruction Manual ML966 to ML972 Hydraulic Hand Pallet Truck 9008-08/29/07 9257-07/18/16...
Page 2
WARNING! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 5,500 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. • Always wear appropriate safety shoes. • Never leave a loaded pallet truck unattended in the raised position; always lower load to the floor. PALLET TRUCK ASSEMBLY Note: Individual trucks are assembled and ready to use. Pallet trucks purchased in crate quantities (6 units to a crate) require some assembly. Tools needed for assembly: hammer, flat screwdriver, 14mm wrench To attach handle assembly to the frame: *** IMPORTANT - SAFETY ***...
Page 3
*** IMPORTANT - CHAIN**** Make sure that handle pin is Before this step, make sure to completely through the handle feed the chain on the outside and resting on the other side. of the piston stem roller (see yellow arrow). If left in its proper position, it will not be possible to insert the handle pin and chain, breakage may occur.
Page 4
OPERATING PALLET TRUCK To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWN NEUTRAL Figure 2 To lower forks, pull lever to DOWN position (upper part of the slot). To freely move the handle, set the lever in NEUTRAL (center notch of the slot). To lift a load: 1.
TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"...
Page 7
HYDRAULIC HAND PALLET TRUCK ASSEMBLY AND PARTS LISTS General Assembly Handle Assembly Order No. Description Order No. Description PULLING ROD BODY WELDMENT CHAIN INNER HEXAGONAL SCREW M6X14 MN465 DROP BOLT M5X30 CONNECTING SHAFT HEXAGONAL NUT M5 LEVER FRAME (520/685) LEVER SHAFT (520/685) LOCK NUT M5 MN235 HANDLE LOCATING SHAFT...
Page 8
PUMP ASSEMBLY AND PARTS LISTS General Assembly: Order No. DescriptIon Order No. DescriptIon SPRING GLAND MN260 STEEL BALL 19 SPRING PEDAL CONTROL ARM PUMP PLUNGER ELASTIC CYLINDRICAL PIN 8X50 ANTI-DUST RING DHS18 MN258 NUT M8 SEALING RING UHS18 FASTEN SCREW M8X20 SMALL PUMP "O"RING 8X1.8 COPPER SHEET...
