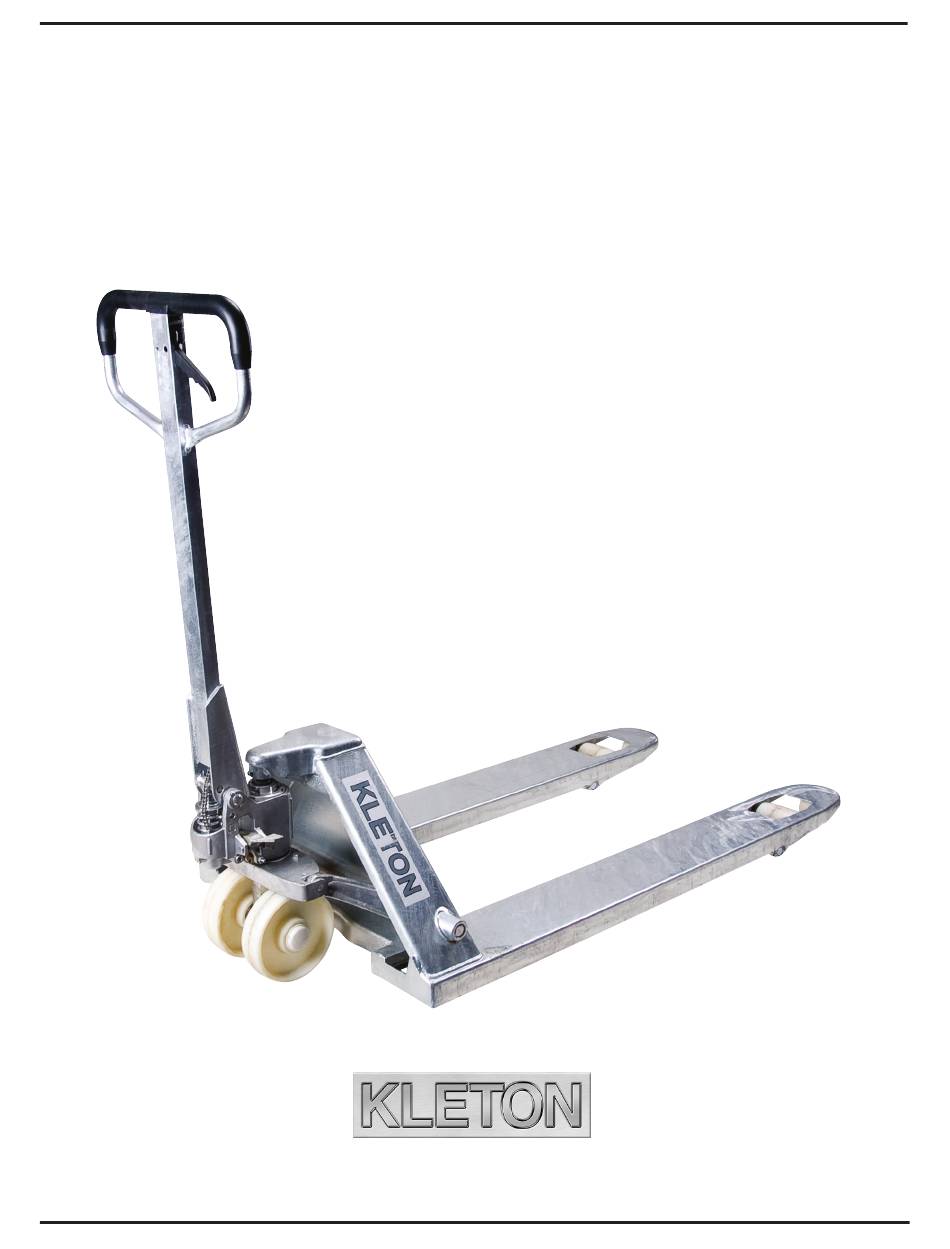

- Page 1 Instruction Manual Galvanized Hydraulic Hand Pallet Truck (MN059 & MN648) 9258-01/15/16 9008-08/29/07...
- Page 2 WARNING! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 5,500 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. • Always wear appropriate safety shoes. • Never leave a loaded pallet truck unattended in the raised position; always lower load to the floor. PALLET TRUCK ASSEMBLY Note: Individual trucks are assembled and ready to use. Pallet trucks purchased in crate quantities (6 units to a crate) require some assembly. Tools needed for assembly: hammer, flat screwdriver, 14mm wrench To attach handle assembly to the frame: *** IMPORTANT - SAFETY ***...
- Page 3 *** IMPORTANT - CHAIN**** Make sure that handle pin is Before this step, make sure to completely through the handle feed the chain on the outside and resting on the other side. of the piston stem roller (see yellow arrow). If left in its proper position, it will not be possible to insert the handle pin and chain, breakage may occur.
- Page 4 OPERATING PALLET TRUCK To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWN NEUTRAL Figure 2 To lower forks, pull lever to DOWN position (upper part of the slot). To freely move the handle, set the lever in NEUTRAL (center notch of the slot). To lift a load: 1.
- Page 5 TECHNICAL PARAMETER 1214 421.5 Model No. MN648 MN059 5500 lbs. 5500 lbs. Capacity 2500 kg 2500 kg 7 1/2" 7 1/2" H - Maximum Raised Height 190 mm 190 mm 3" 3" S - Lowered Height 75 mm 75 mm 42"...
-
Page 6: Troubleshooting
TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"... - Page 7 HYDRAULIC HAND PALLET TRUCK ASSEMBLY AND PARTS LIST Order No. DESCRIPTION Qty. Order No. DESCRIPTION Qty. MN319 Handle Assembly GB879-86 Spring Pin 5X28 MN977 Steer Wheel Shaft SYBC.5-06 Shaft 16X85 GB5782-86 Bolt M8X55 DF-04 Shaft 20X152 MJ584 Bearing 8111 GB879-86 Spring Pin 5X35 BF-03 Supporting Base...
- Page 8 PUMP ASSEMBLY AND PARTS LIST Order No. Description Qty. Order No. Description Qty. B101 DF.1-01a Blade Spring B128 BF.2-5 Spring 1.2X9.8X22 B102 GB879-86 Spring Pin 4X30 B129 AF.2-7 Strike Pin B103 DF.1-02 Roller B130 GB3452.1-82 O-Ring 7X1.8 B104 GB879-86 Spring Pin 4X20 B131 AF.2-06a Seat of Strike Pin...
