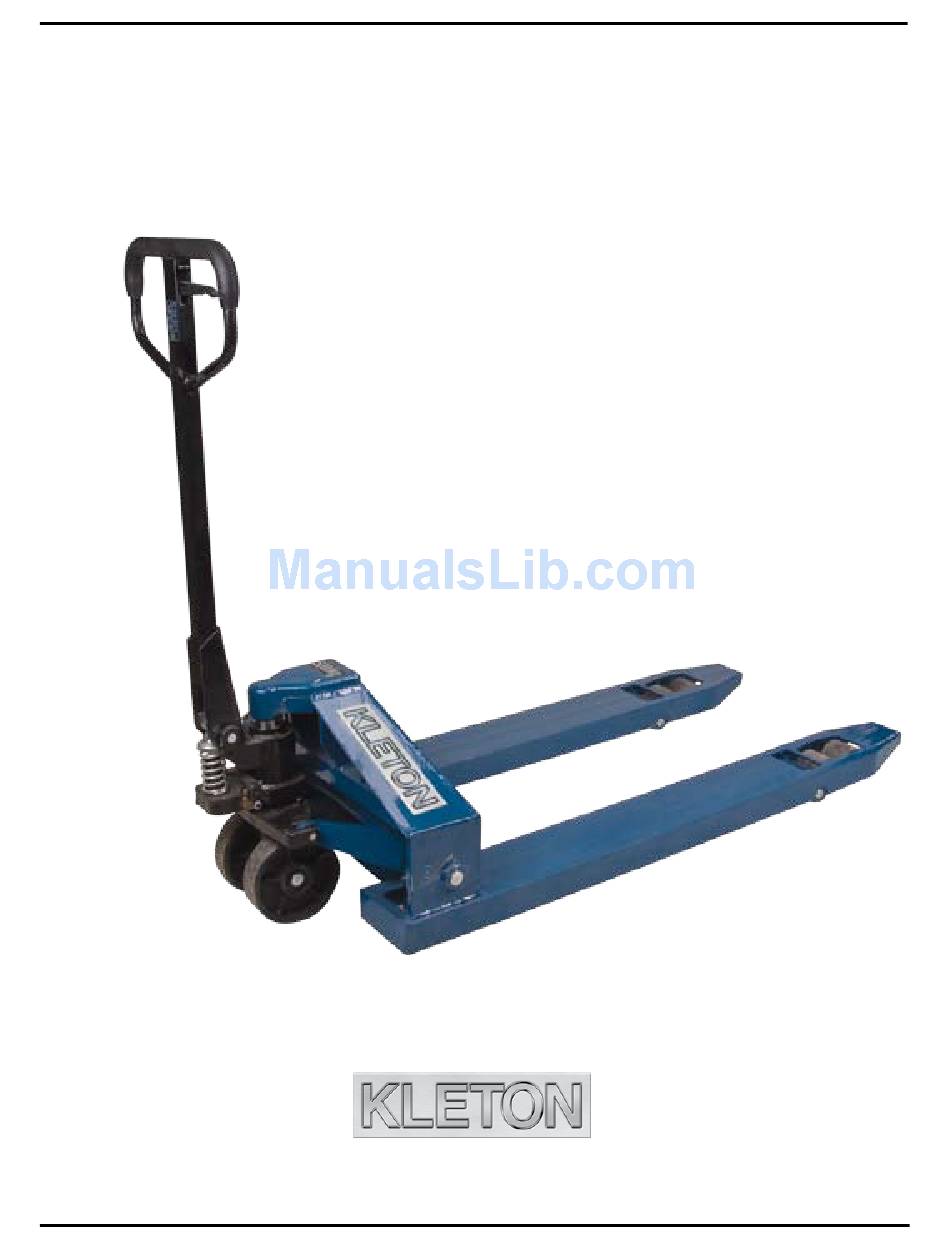

- Page 1 Instruction Manual ML994 Super Heavy-Duty Hydraulic Hand Pallet Truck 9008-08/29/07 9257-07/18/16...
- Page 2 Warning! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 11,000 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. • Always wear appropriate safety shoes. • Never leave a loaded pallet truck unattended in the raised position; always lower load to the floor. Pallet truck assembly Note: Individual trucks are assembled and ready to use. Pallet trucks purchased in crate quantities (6 units to a crate) require some assembly. Tools needed for assembly: hammer, flat screwdriver, 14mm wrench, 3/16"...
- Page 3 Drive in the spring pin using a Make sure that handle pin is hammer. completely through the handle and resting on the other side. Feed the chain and nut first back Pull down on the handle to inside the handle THROUGH the release the tension on the safety handle pin’s center hole.
- Page 4 OPerating Pallet truck To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWn neutral Figure 2 To lower forks, pull lever to DOWn position (upper part of the slot). To freely move the handle, set the lever in nEUTRAL (center notch of the slot). To lift a load: 1.
- Page 5 76 mm x 76 mm maintenance Lubrication Your KLETOn pallet truck is equipped with grease fittings in order to facilitate greasing its bearings. It is recommended to apply grease every 6 months. Adding Oil (if required) 1. Lower the pallet truck forks to their lowest point using the up/down lever on the handle. You will notice that the piston is now completely inside the pump assembly.
-
Page 6: Troubleshooting
trOubleshOOting Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"... - Page 7 Hydraulic Hand Pallet truck assembly and Parts lists General Assembly General Assembly Handle Assembly Order No. Description Order No. Description BODY WELDMENT MN369 PULLING ROD ADJUSTMENT SCREW CHAIN 04B-1-121 CONNECTING FORK EAR DROP BOLT M5X30 CIRCLIP FOR SHAFT HEXAGONAL NUT M5 CONNECTING SHAFT LOCK NUT M5 CIRCLIP FOR HOLE...
- Page 8 PumP assembly and Parts lists General Assembly: Order No. Description Order No. Description SPRING GLAND SEALING RING PUMP PLUNGER PUMP WELDMENT SPRING OIL FIL PLUG ANTI-DUST RING BONDED SEAL SEALING RING O RING GAG LEVER POST COPPER NUT MN527 HALF RING...
