Summary of Contents for Kleton MO890

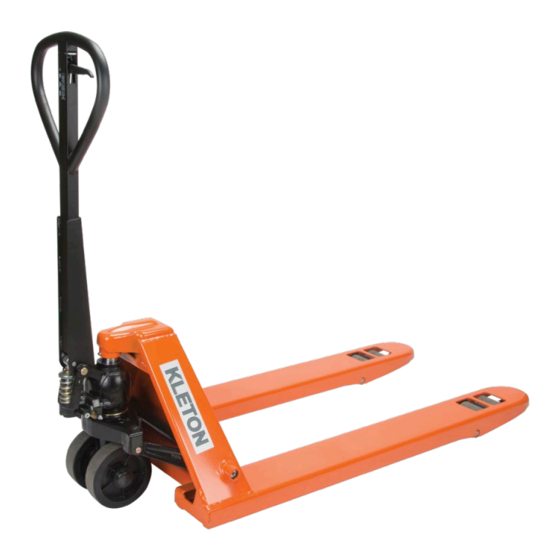

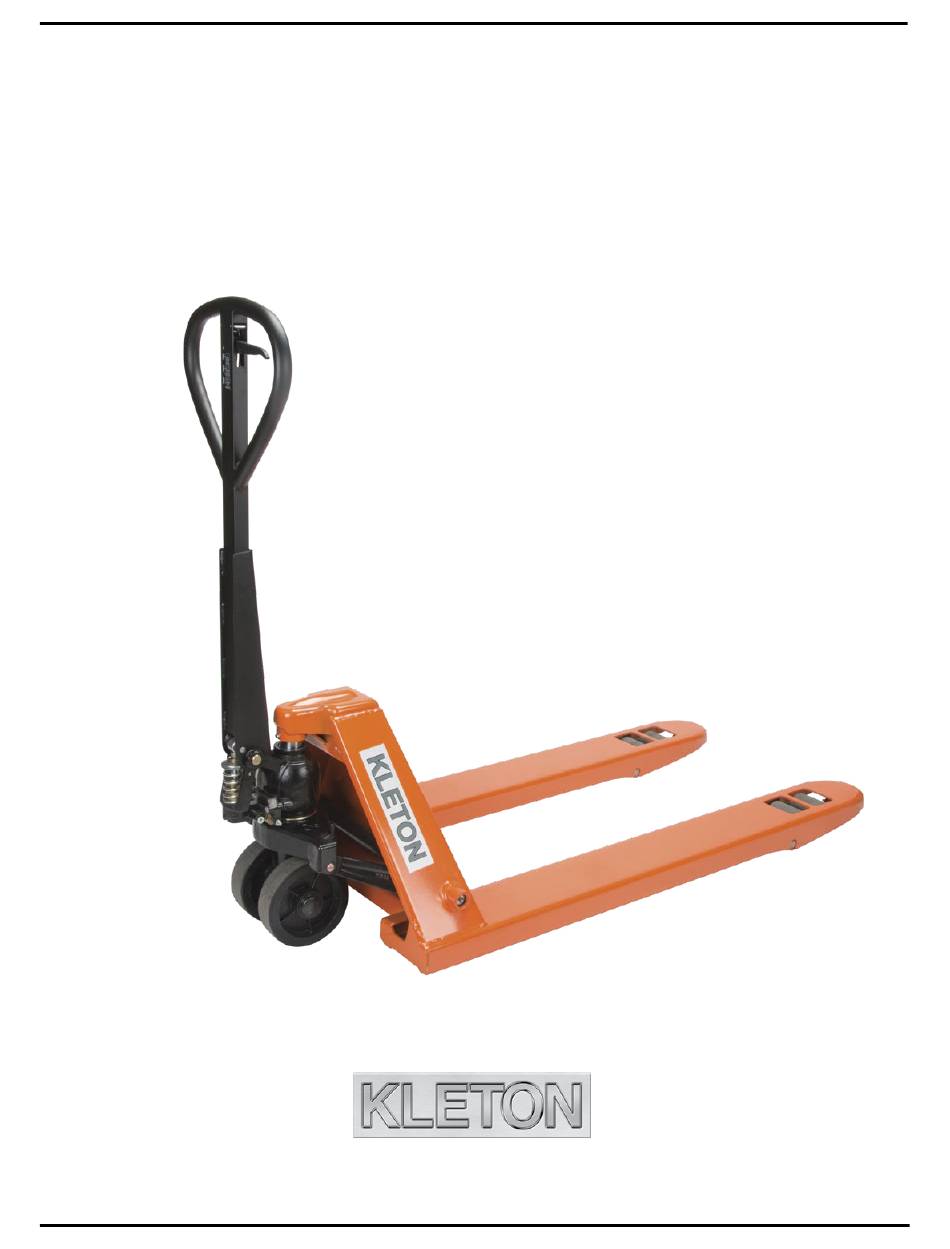

- Page 1 Instruction Manual MO890 Hydraulic Hand Pallet Truck 9008-08/29/07 9257-07/18/16...
- Page 2 WARNING! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 11,000 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. •...
- Page 3 *** IMPORTANT - CHAIN**** Make sure that handle pin is Before this step, make sure to completely through the handle feed the chain on the outside and resting on the other side. of the piston stem roller (see yellow arrow). If left in its proper position, it will not be possible to insert the handle pin and chain, breakage may occur.
- Page 4 OPERATING PALLET TRUCK To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWN NEUTRAL Figure 2 To lower forks, pull lever to DOWN position (upper part of the slot). To freely move the handle, set the lever in NEUTRAL (center notch of the slot). To lift a load: 1.
- Page 5 TECHNICAL PARAMETER 1226 11,000 lbs. Capacity 5,000 kg 5.5" H - Maximum Raised Height 139.70 mm 3" S - Lowered Height 76.20 mm 48" L - Fork Length 1219.20 mm 6 1/4" E - Fork Width 158.75 mm B - Fork Outside 27"...
- Page 6 TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"...
- Page 7 PUMP ASSEMBLY AND PARTS LISTS General Assembly: Part No. Model No. DescriptIon Part No. Model No. DescriptIon MO941 Handle assembly CSB-F Bushing CSB-F Bushing WA-01 Axial compression MO940 Oil pump CSB-F Bushing WB.9-01 Axle BF12.3-02 Coupling head WB-02 Ring DF-01 Pin roll GB893.1-86 Circlip...
- Page 8 HYDRAULIC HAND PALLET TRUCK ASSEMBLY AND PARTS LISTS Pump Assembly Part No. Model No. Description AM.2.3-02 Washer KC.2-05 Spring cap CN.2-3 Spring DH18 Dustproof ring UHS18 Y-type seal ring DWIR Dustproof ring GB893.1-86 Circlip GB3452.1-82 O-ring GB3452.1-82 O-ring WB.2-01 Guiding cover WB.2-04 Pipe sleeve WB.2-05...
