Summary of Contents for Kleton MP792

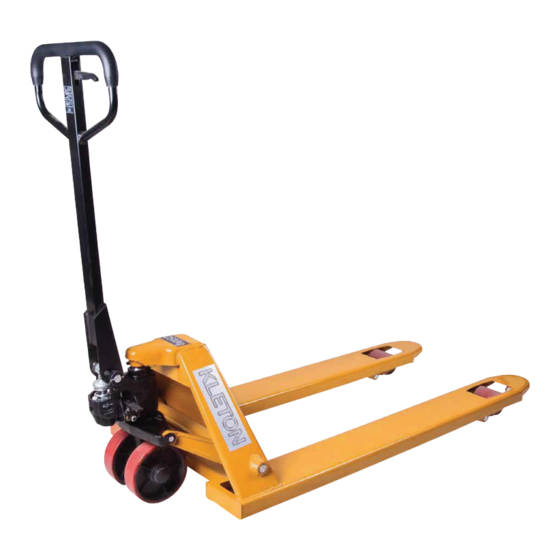

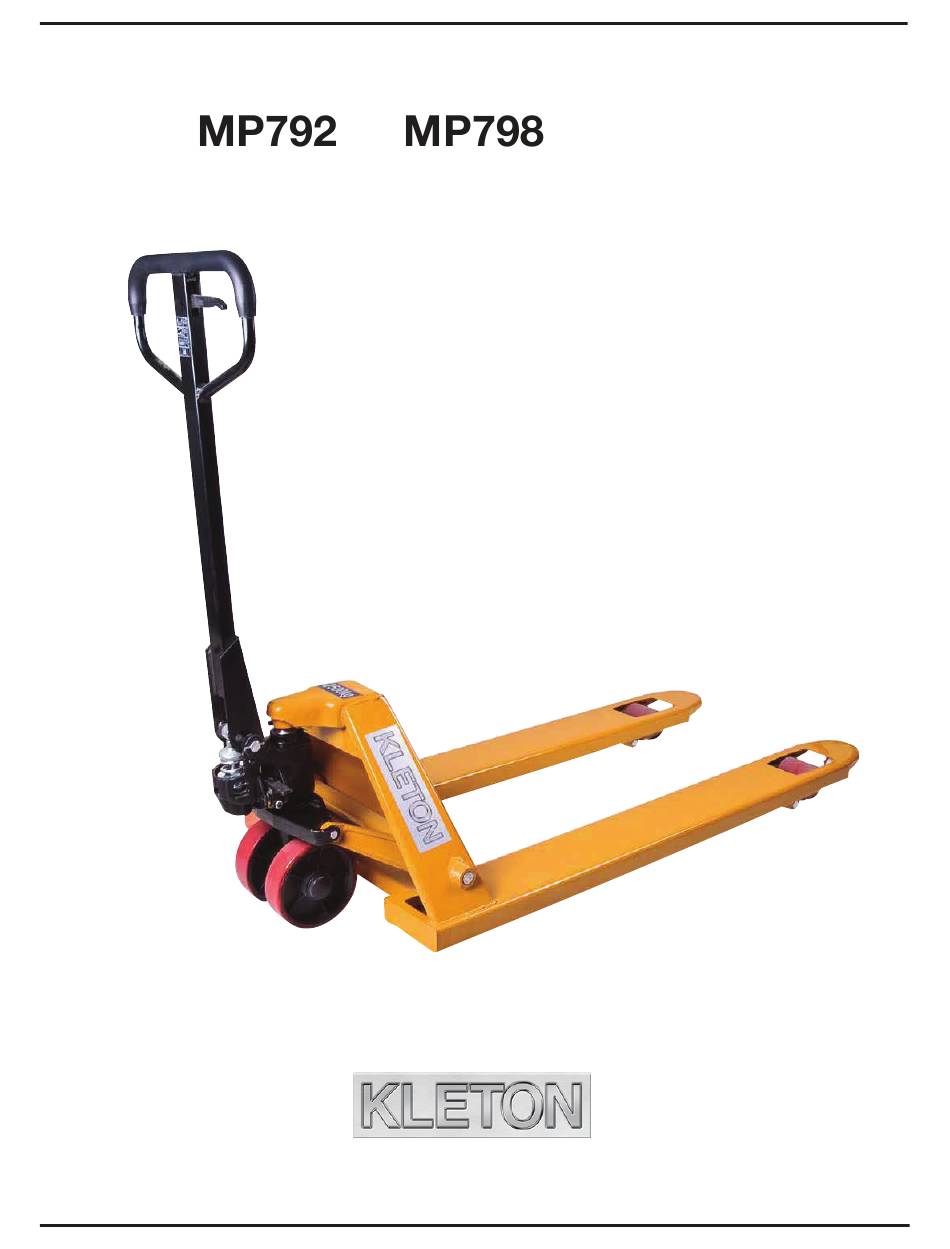

- Page 1 Instruction Manual Hydraulic Hand Pallet Truck 9008-08/29/07 9257-07/18/16...
- Page 2 WARNING! PALLET TRUCK ASSEMBLY Individual trucks are assembled and ready to use. Pallet trucks purchased in crate quantities (6 units to a crate) require some assembly. hammer, flat screwdriver, 14mm wrench To attach handle assembly to the frame: *** IMPORTANT - SAFETY *** Insert handle pin into cor- responding holes and using a Verify that spring safety pin is in place.
- Page 3 *** IMPORTANT - CHAIN**** Make sure that handle pin is Before this step, make sure to completely through the handle feed the chain on the outside and resting on the other side. of the piston stem roller (see yellow arrow). If left in its proper position, it will not be possible to insert the handle pin and chain, breakage may occur.
- Page 4 OPERATING PALLET TRUCK To raise the forks, place handle lever in UP position (bottom part of the handle slot). See Figure 2. DOWN NEUTRAL Figure 2 To lower forks, pull lever to DOWN position (upper part of the slot). To freely move the handle, set the lever in NEUTRAL (center notch of the slot). To lift a load: 1.
-
Page 5: Technical Parameter
TECHNICAL PARAMETER 1214 421.5 MP792 MP793 MP794 MP795 MP796 MP797 MP798 Model No. 5500 lbs. Capacity 2500 kg H - Maximum Raised Height S - Lowered Height 5 mm 36" 42" 48" 36" 42" 48" 48" L - Fork Length... -
Page 6: Troubleshooting
TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"... - Page 7 Manual with complete parts list are available in the "Product Resources" section of our website. Please visit www.kleton.com or contact our customer service team at 1-866-392-1912 / info@kleton.com...
