MV33G User Manual V1.0
Learn how to set up your new MiCODUS Tracker
Copyright ©2023 MiCODUS | All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV33G and is the answer not in the manual?

Questions and answers

Related Manuals for MICODUS MV33G

Summary of Contents for MICODUS MV33G

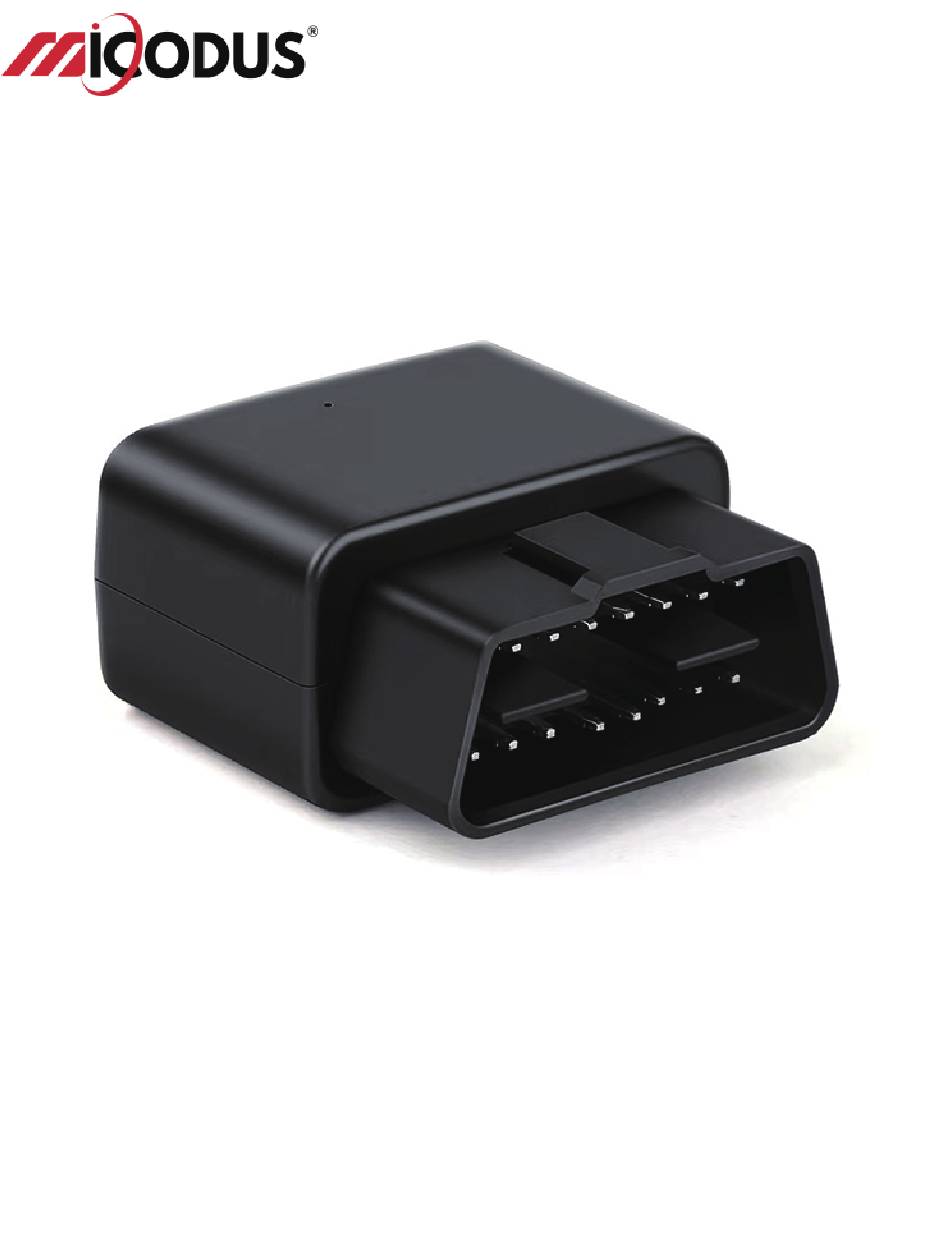

  • Page 1 MV33G User Manual V1.0 Learn how to set up your new MiCODUS Tracker Copyright ©2023 MiCODUS | All Rights Reserved...

  • Page 2: Main Features

    Vibration Displacement Overspeed Plug Out Alarm OBD2 Geo-fence Alarm OFF Alarm Alarm Alarm 2.Specifications Model MV33G Weight Device Information 47mm(L)x46mm(W)x25mm(H) Dimensions Battery Built-in 80mAh Lithium Battery Working Voltage 9-40V DC Working Power: around 0.72w Working Power Working Temperature -20℃ - 60℃...

  • Page 3: Activate Device

    3.Activate Device First Step： Prepare And Install Sim Card * If use your local SIM card, please make sure the SIM card already enabled SMS, internet data traffic, call and caller ID displaying functions; * If use our spionlink SIM card, then please recharge it via this website www.spionlink.com to get data plan firstly Nano SIM...

  • Page 4: Package Content

    Note: The APN information is very important, it must 100% correct to match with the sim card of the tracker, if you configured wrong APN, the tracker also will reply "SET APN ok" but it will can't get online! 4.Package Content MV33G 4G OBD Tracker USB Charging Cable User Guide Packing Box 5.Functions Explanation...
  • Page 5 2. Engine Start/Flameout Alarm For example: MV33G * Set admin number: admin123456,number For example, if your cellphone number is admin123456,+8613366668888 +8613366668888, then the command should be admin ok sent like this:admin123456,+8613366668888 smartacc 123456,1 smartacc ok * Enable ACC status detection:...
  • Page 6 6. Installation Recomendation Where is the OBD interface? Where is the OBD interface? Most of the car‘s OBD interface is located in A and B, Most of the car's OBD interface is located in A and B, A small part of the car will be in C,D and E. A small part of the car will be in C,D and E.
  • Page 7 7. Full SMS Commands List Functions Command Format Explanation Query Commands param,1 firmware version、ID、IP、port、domain、APN admin number, SOS number,move distance, Parameter Query overspeed, auto arm time, auto disarm time, param,2 alarm interval BAT:10 GPRS: GSM: GPS:A/V ACC:on/off Status status oil:on/off power:on/off IMEI Checking imei123456 Check Command...
  • Page 8 123456,d.micodus.net:7700 IP/Domain&Port ip/domain name:port Micodus tracking platform: Domain name: d.micodus.net, IP: 47.254.77.28, Port: 7700 A: Time interval value: 1-3600s; if A is less than 600s, for example, A=10s, then device will upload data every 10s when moving, after the car stop more than 5min, it will just upload...

  • Page 9: Troubleshooting

    Functions Command Format Explanation Example: vib,2,4 Sensitivity Level: 1-9, 1 is the most sensitive；Mode: 1-4： vib,<level>,[mode] Vibration Alarm 1、Platform+SMS；2、Platform+Call；3、Platform+SMS+Call； 4、Platform only Default: 4 Example: autorep123456,33 A=0 (Engine ON: No Alarm); A=1 (Engine ON: SMS only); Engine On/Off Alarm autorep123456,AB A=2 (Engine ON:Platform only); A=3 (Engine ON: SMS+Platform) B=0 (Engine OFF: No Alarm);...

  • Page 10: Download App

    9.After-sale Contact Information E-mail:support@micodus.com Skype:MiCODUS 10. Download APP Search "MiCODUS" in iOS APP store or Google Play Store, or just scan the QR code as below to download MiCODUS APP:...
