WriteProtect PORTABLE
Logicube

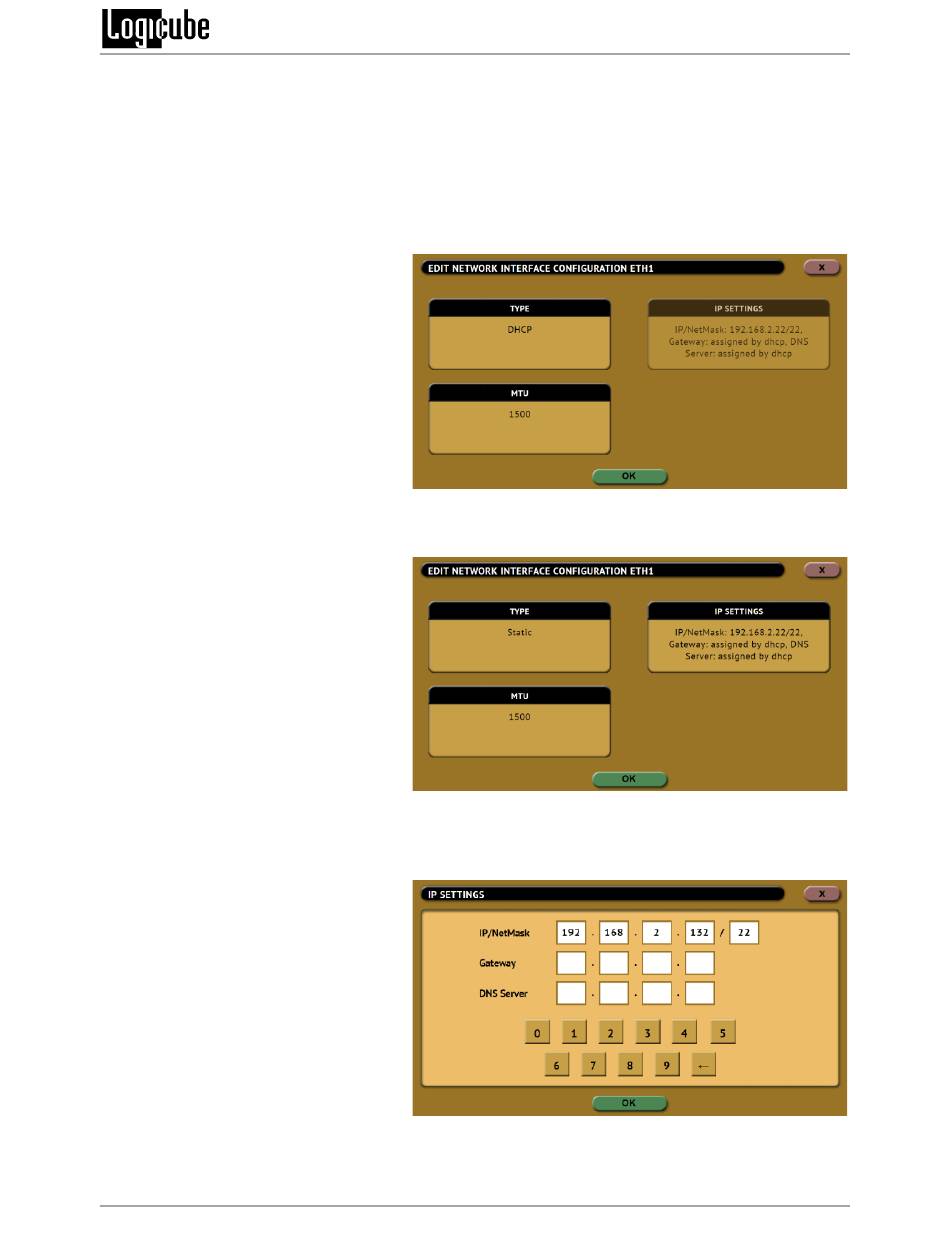

1. Select Network Settings from the types of operation on
the left side.
2. Select the Interfaces tab.
3. Tap ETH0 to highlight it.
4. Tap Edit Configuration to edit the entry. The Edit
Network Interface Configuration screen should appear.
5. Tap the Type box and select STATIC then tap the OK
icon. The IP SETTINGS box should now be selectable.
6. Tap the IP SETTINGS box to manually set the IP address,
netmask, Gateway, and DNS Server. When finished, tap
the OK icon.
User's Manual
24
WEB INTERFACE
