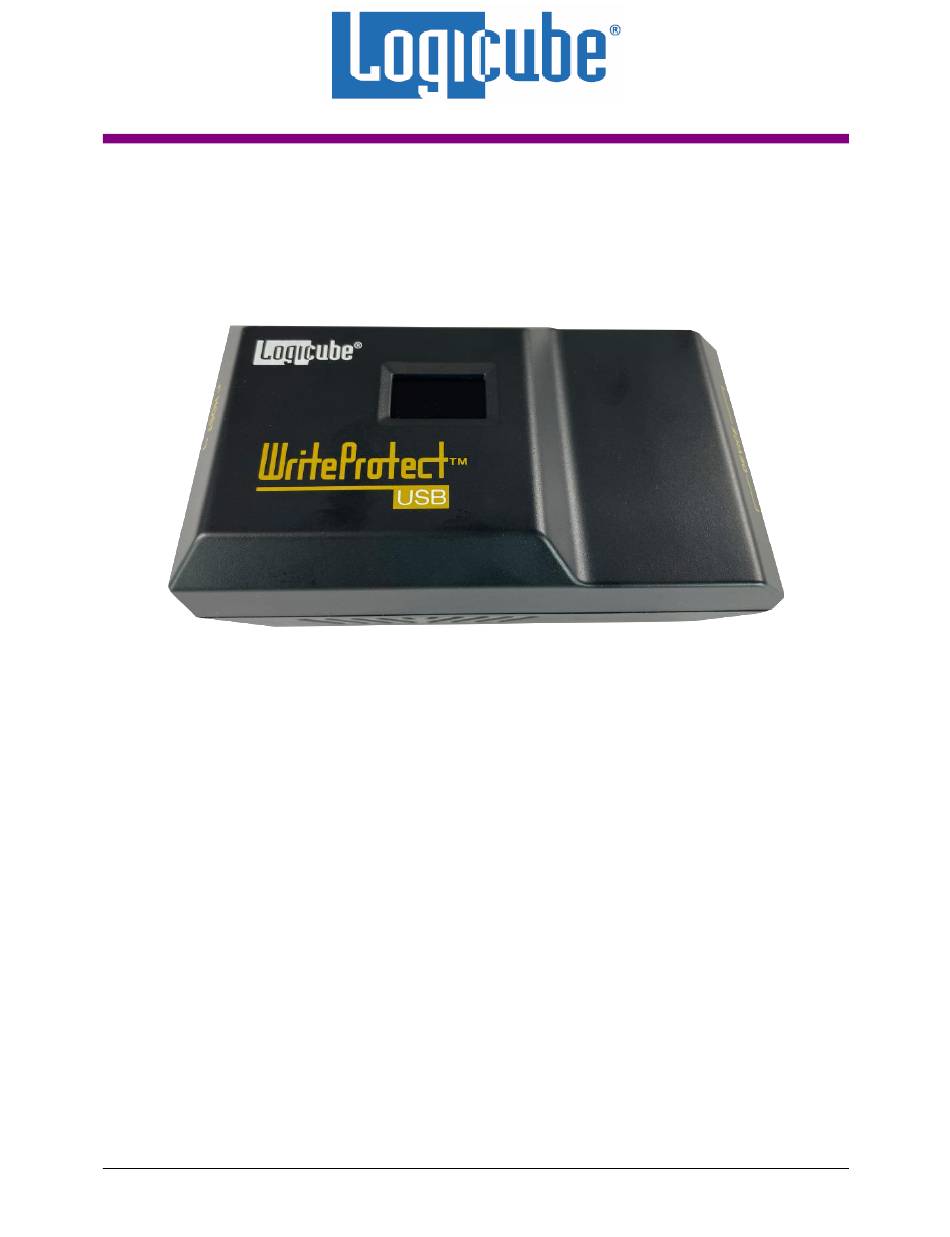

- Page 1 WriteProtect™ USB User’s Manual Logicube, Inc. Chatsworth, CA 91311 Phone: 818 700 8488 Fax: 818 700 8466 Version: 1.0 Date: 10/19/22 MAN-WP-USB Logicube WriteProtect™ USB User’s Manual...
- Page 2 LOGICUBE IS NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO PROPERTY DAMAGE, LOSS OF TIME OR DATA FROM USE OF A LOGICUBE PRODUCT, OR ANY OTHER DAMAGES RESULTING FROM PRODUCT MALFUNCTION OR FAILURE OF (INCLUDING...
- Page 3 IS NO LONGER SUPPORTED BY LOGICUBE THE PRODUCT MAY BE REPLACED WITH AN EQUIVALENT OR SUCCESSOR PRODUCT AT LOGICUBE’S DISCRETION. THIS WARRANTY EXTENDS ONLY TO THE END PURCHASER OF LOGICUBE PRODUCTS. THIS WARRANTY DOES NOT APPLY TO, AND IS NOT FOR THE BENEFIT OF, RESELLERS OR DISTRIBUTORS OF LOGICUBE PRODUCTS. UNLESS OTHERWISE AGREED IN WRITING BY LOGICUBE, NO WARRANTY IS PROVIDED TO RESELLERS OR DISTRIBUTORS OF LOGICUBE PRODUCTS.
- Page 4 SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. RoHS Certificate of Compliance LOGICUBE PRODUCTS COMPLY WITH THE EUROPEAN UNION RESTRICTION OF THE USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRONIC EQUIPMENT, ROHS DIRECTIVE (2002/95/EC). THE ROHS DIRECTIVE PROHIBITS THE SALE OF CERTAIN ELECTRONIC EQUIPMENT CONTAINING SOME HAZARDOUS SUBSTANCES SUCH AS MERCURY, LEAD, CADMIUM, HEXAVALENT CHROMIUM AND CERTAIN FLAME-RETARDANTS IN THE EUROPEAN UNION.
- Page 5 5.1.1 Drives ............................8 5.1.2 Exports ............................8 5.2 W -USB S ......................9 RITE ROTECT TATISTICS 5.2.1 About ............................9 5.2.2 Adv. Drive Statistics ........................9 5.2.3 Network Interface Stats ......................9 5.2.4 Debug Logs ..........................9 Logicube WriteProtect™ USB User’s Manual...
- Page 6 6.2.1 From Network (Over the Internet) ..................21 6.2.2 From USB Drive (Through a software file download) .............. 22 6.3 F ..........................23 IRMWARE PDATE 6.4 PXEBOOT UPDATE ........................... 24 ....................... 24 ECHNICAL UPPORT NFORMATION ..........................24 OFTWARE TTRIBUTION Logicube WriteProtect™ USB User’s Manual...
- Page 7 Connect to your network using the WriteProtect’s Gigabit Ethernet port Compatible with forensic acquisition and analysis software • The WriteProtect-USB features a compact size measuring 6 3/4” x 3 1/8” x 2” for use in the lab • or the field Logicube WriteProtect-USB User’s Manual...
- Page 8 Extended 1 and 2-year warranties are available. WARNINGS: • Avoid dropping the Logicube WriteProtect-USB or subjecting it to sharp jolts. When in use, place it on a flat surface. • Keep the unit dry. If the WriteProtect-USB needs to be cleaned, use a lightly damp, lint free cloth.
- Page 9 Special Icons – Throughout this manual, two icons can be seen. Please pay close attention when any of these two icons are found. These icons highlight additional information or important warnings on specific topics. WRITEPROTECT-USB WRITEPROTECT-USB TOP VIEW BACK VIEW WRITEPROTECT-USB WRITEPROTECT-USB LEFT VIEW RIGHT VIEW Logicube WriteProtect-USB User’s Manual...
- Page 10 Hostname • IP Address (if available) • Device Temperature • If the IP address or HostName changes while the WriteProtect-USB is on, the display will not show the new information until the WriteProtect-USB is rebooted. User’s Manual WriteProtect USB Logicube...
- Page 11 3.1 Connected Drives Depending on the Operating System on the computer, drives connected to the WriteProtect may or may not be automatically mounted. Windows may automatically assign a drive letter to partitions that it can recognize. Logicube WriteProtect-USB User’s Manual...
- Page 12 QUICK START When drives are disconnected and a different drive is connected, a Refresh or Rescan Disks in Disk Management may be required to refresh the list of connected drives. User’s Manual WriteProtect USB Logicube...
- Page 13 The WriteProtect comes with a gigabit network connection. Connecting the WriteProtect to a network allows remote access from any computer within the same network using a supported Internet browser. A network connection with Internet access also allows the WriteProtect software to be updated using the FROM NETWORK option. Logicube WriteProtect-USB User’s Manual...
- Page 14 This screen allows the user to see basic information about the drive connected to the device. The More Info icon shows additional information about the drive. 5.1.2 Exports button resets the USB connection without having to physically disconnect and re-connect the USB host cable from the WriteProtect or the workstation. Logicube WriteProtect-USB User’s Manual...
- Page 15 5.2.4 Debug Logs There may be times when Logicube Technical Support will ask for debug logs. This tab allows the user to export the debug logs to a USB flash drive. To export the debug logs: 1.
- Page 16 QR code or scan the QR code from a mobile phone or tablet that has internet access. 5.3 System Settings The System Settings screen allows users to configure the following settings for the WriteProtect: Profiles, Passwords, Language/Time Zone, and USB Device. 5.3.1 Profiles User’s Manual WriteProtect USB Logicube...
- Page 17 To delete a profile, highlight the profile to be deleted then click the delete icon. A confirmation screen will appear. Click the Yes icon to delete the selected profile. When loading a profile, it may take several seconds to completely load the different profile. User’s Manual WriteProtect USB Logicube...
- Page 18 For example, if the Config Lock key is set, and the USB DEVICE is set to Write Suppress, the user will be unable to change this to Read Only. User Account: LOGICUBE – This allows the user to change the logicube local account. •...
- Page 19 Logicube • • iSCSI • All user account passwords can be changed on this screen. To change the password for any of the accounts, tap the LOGICUBE, IT, or ISCSI button. A screen will appear: User’s Manual WriteProtect USB Logicube...
- Page 20 Changing this password will take effect immediately. If the User Account password is forgotten, contact Tech Support assistance. 5.3.3 Language/Time Zone The WriteProtect menu’s language can be changed along with the time zone setting. User’s Manual WriteProtect USB Logicube...
- Page 21 After selecting the region, select the time zone then click the OK icon to set the time zone. The web browser should be refreshed (by pressing F5 or the refresh button on the web browser) to show the recently set time zone. User’s Manual WriteProtect USB Logicube...
- Page 22 DCO. By default, this is set to DISABLED, disallowing changes to the DCO. If changes need to be performed to the DCO, set this to ENABLED. 5.4 Network Settings The Network Settings screen has the following tabs: Interfaces, HTTP Proxy, Network Configurations, and HTTPS. User’s Manual WriteProtect USB Logicube...
- Page 23 Configuration. The Edit Network Interface Configuration screen should appear. 5. From the Edit Network Interface Configuration screen, click the Type box and select STATIC then click the OK icon. The IP SETTINGS box should now be selectable. User’s Manual WriteProtect USB Logicube...
- Page 24 The following services can be disabled (enabled by default): SSH – Disabling this will block Secure Shell (SSH) traffic. • Telnet – Disabling this will block Telnet traffic. • HTTP – Disabling this will block web browser connections to the unit. • User’s Manual WriteProtect USB Logicube...
- Page 25 5.4.3 Network Configurations The WriteProtect-USB’s hostname and NTP Server list can be configured in this tab. Changes on this screen take effect immediately. Multiple NTP server entries are separated by a space. For example: ntp-b.nist.gov time.google.com us.pool.ntp.org User’s Manual WriteProtect USB Logicube...
- Page 26 USB drive. Section 6.0 Updating/Loading/Re-loading New Software for step-by-step information on how to update the software and firmware. 5.6 Power Off This screen allows the user to remotely turn off or reboot the WriteProtect-USB. User’s Manual WriteProtect USB Logicube...
- Page 27 Connect the WriteProtect-USB to a network with Internet access and turn the WriteProtect-USB on. Using the web interface (see Section 4.1 for details on the web interface), connect to the WriteProtect. From the main menu on the WriteProtect-USB, click Software Updates on the left side. Logicube WriteProtect-USB User’s Manual...
- Page 28 6.2.2 From USB Drive (Through a software file download) Aside from the network option, the latest software can also be downloaded from Logicube’s website and placed onto a USB flash drive to perform the software update/reinstallation. It is recommended to use an empty USB flash drive.
- Page 29 1. Connect the WriteProtect-USB to a network (so it can be accessed through the web interface) and turn the WriteProtect-USB on and turn the WriteProtect-USB on. User’s Manual WriteProtect USB Logicube...
- Page 30 This screen is reserved for future use. Technical Support Information For further assistance please contact Logicube Technical Support at: (+1) 818 700 8488, option 3 8 am - 5 pm PST, M-F (excluding US legal holidays) or by email to techsupport@logicube.com...
- Page 31 SOFTWARE UPDATES wkhtmltopdf 0.12.6-1 User’s Manual WriteProtect USB Logicube...
