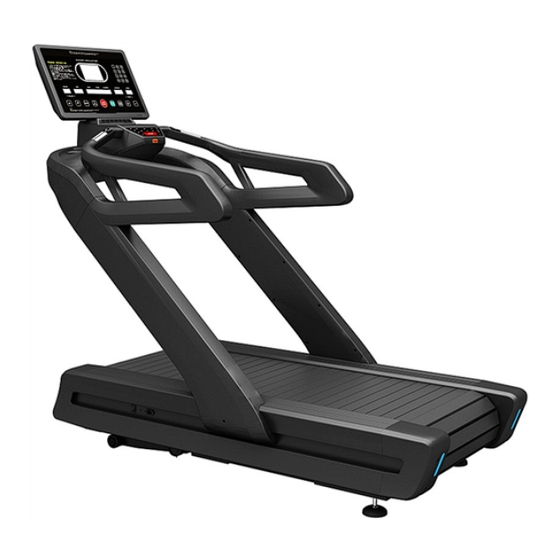

- Page 1 FF-ST100 FRENCH FITNESS ST100 SLAT BELT COMMERCIAL TREADMILL (NEW) ASSEMBLY MANUAL...
-
Page 2: Tech Specs
F E AT U RE S Crawler Belt Material: Aluminum and Elastic Polyurethane • Crawler Strip Size: 22.12" x 2.4" (56.2 cm x 6.09 cm) • Crawler Strip Thickness: 1.26" (32 mm) • Neoprene Multi-Ribbed Belt • Slope Range: 0 to 15% •... - Page 3 T AB L E OF CONT E NT S SAFETY INSTRUCTIONS ..............4 ASSEMBLY INSTRUCTIONS ............. 5 START ASSEMBLY ................7 LED DISPLAY BOARD FUNCTION OPERATION INSTRUCTIONS ................12...
-
Page 4: Safety Instructions
SAF E T Y I NST RU CT I ONS Safety Tips: This safety manual contains important safety information, please read it carefully before use. – To avoid the risk of electric shock, please unplug the power plug before cleaning or servicing this equipment;... -
Page 5: Assembly Instructions
ASSE MB L Y I NST RU CT I ONS Warning: You need an assistant to assist in assembling this equipment. Do not try to assemble it alone. Steps for preparing to assemble the treadmill: Ask your assistant to help place the shipping wooden box near your location where you plan to use the treadmill. - Page 6 Hardware Step 1 abbreviated Name quantity drawing ① M10 * 20 Cylindrical head inner-hexagon screws ② M10 flat gasket ③ M10 spring washer Step 2 abbreviated Name quantity drawing ① M8 * 20 Half round head inner-hexagon screws ② M8 flat gasket Step 3 abbreviated Name...
-
Page 7: Start Assembly
ST ART ASSE MB L Y Note: make sure the treadmill is not connected to any power supply before doing the following. There is an opening on both sides of the left and right handrail side frame tubes of the treadmill. The following figure shows the cable channel position of the side frame tube. - Page 8 ST ART ASSE MB L Y STEP 3 NOTE：In the figure ①3.9*16 Phillips tapping screws,13pcs；② 4*10 Round head Phillips screw， 4pcs Install the upper shell to the upper frame with 13pcs of Phillips tapping screws lock the inner and outer sides with 4pcs of Round head Phillips screw lock.
- Page 9 ST ART ASSE MB L Y STEP 4 Heart rate line fan line Cable USB wireless charging Line Holding the lifting line Holding the speed line Emergency stop line Rear light line Rear light line and signal line Small panel control line After fixing the meter head and handle, press the connector to insert the wire into the corresponding connector and small key board...
- Page 10 ST ART ASSE MB L Y STEP 5 Note: figure① 4 * 10 half round head cross screw 2pcs; ②3.9 * 16 cross shaped self tapping screws 11pcs. After buckling the lower shell to the upper shell, use 11pcs Phillips self- tapping screws and 2pcs of half- round...
- Page 11 Adjust Running Belt, Use this procedure to adjust and align the running belt. User turns on the treadmill and adjusts the running speed below 4km / h. If the running belt is dragged to the ground or the rear drum makes abnormal noise, the running belt needs to be adjusted. If there is no abnormal condition, please do not adjust the running belt.
-
Page 12: Led Display Board Function Operation Instructions
L E D D I SPL AY B OARD F U NCT I ON OPE RAT I ON I NST RU CT I ONS Electronic Watch and key Board Surface Stickers Buttons and Functions 1,MODE (mode key): switch mode RUN MODE/LEVEL MODE. RUN MODE means treadmill mode; LEVEL MODE means no power and resistance mode. - Page 13 8. Slope -: Adjust the slope and reduce the value of the selected item (slope, time, distance, heat). 9. Speed shortcut key: quickly select speed 3/6/9 10. Slope shortcut key: Quickly select slope 3 / 6 / 9 11. Enter key: (1) After selecting the fixed program, press enter to confirm the program.
- Page 14 stops running. Reciprocal distance （1）Press the program key to select the distance countdown mode, the distance window flashes "1.0", the range is 1-999 kilometers, press SPD+, SPD- or INC+, INC- to adjust the distance. （2）Press the start key to run, and the treadmill starts running at the lowest speed. Press the speed key to select the speed, and the distance window displays the countdown.
- Page 15 2、Lifting calibration Press the emergency stop switch, press the start key and stop key on the display board at the same time, the emergency stop switch will reset and the factory key will be displayed. After pressing the start key, the hoisting will start self inspection; CHL is displayed during self-test. 3、Program form FIXED PROGRAM...
- Page 16 FIXED PROGRAM LEVEL SPEED SLOPE SPEED SLOPE 10.0 10.0 12.0 11.0 14.0 12.0 16.0 13.0 12.0 14.0 16.0 13.0 14.0 12.0 12.0 14.0 10.0 12.0 10.0 12.0 11.0 14.0 12.0 16.0 13.0 12.0 14.0 16.0 13.0 14.0 12.0 12.0 14.0 10.0 12.0 10.0...
- Page 17 4.Frequency converter error message： Fault code Fault meaning Treatment countermeasures 1. Check whether the power plug, socket and switch connecting wire are loose and fall off. Undervoltage E01H 2. After cutting off the power supply for 2 minutes, power on again. fault 3.
- Page 18 1. Power on the device 2 minutes after the power-off. Dynamic brake E0EH protection 2. Replace the frequency converter. 1. Power on the device 2 minutes after the power-off. Flash exception E21H protection 2. Replace the frequency converter. 1.Confirm whether the input power supply voltage is normal. Low voltage E23H alarm...
Need help?
Do you have a question about the FF-ST100 and is the answer not in the manual?
Questions and answers
Is there a more specific instruction to connect the wires from the console to the unit?
To connect the wires from the console to the FRENCH FITNESS FF-ST100 unit:
1. Locate the openings on both sides of the left and right handrail side frame tubes.
2. Identify the wire coming out of the large frame and the wire from the column.
3. Thread the wire from the large frame into the lower opening of the side frame.
4. Connect it with the wire coming out of the side frame.
5. Ensure the wire exits at the designated arrow position.
6. Secure the side frame handle to the side frame using M10 * 20 hexagon socket head screws (8 pcs), M10 flat gaskets (8 pcs), and M10 spring shims (8 pcs).
7. Use M8 * 20 round head screws (8 pcs) and M8 flat gaskets (8 pcs) to further secure the assembly.
This answer is automatically generated
