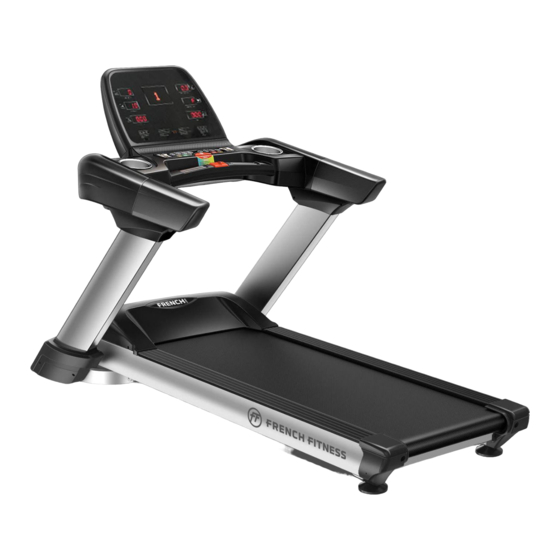

- Page 1 FF-FT500 FRENCH FITNESS FT500 LIGHT COMMERCIAL TREADMILL ASSEMBLY MANUAL...
-
Page 2: Tech Specs
FEAT URES Super folding 18mm Soft Running board LED 110 VAC 60Hz standard 2.0 HP continuous AC Motor Peak: 4.0HP Speed range: 0.62 - 15.5mph Incline: Auto 0-10% Running Belt: 580 x 1600mm T ECH SPEC S ... - Page 3 C O N T E N T S...
-
Page 4: Safety Instruction
1 . S A F E T Y I N S T R U C T I O N... -
Page 5: S P E C I A L S A F E T Y I N S T R U C T I O N
2 . S P E C I A L S A F E T Y I N S T R U C T I O N... -
Page 6: C O N F I G U R A T I O N L I S T
3 . C O N F I G U R A T I O N L I S T... -
Page 8: E X P L O S I O N D I A G R A M
4 . E X P L O S I O N D I A G R A M... - Page 9 5 . L I S T O F E X P L O S I O N D I A G R A M One of each side...
- Page 10 Lower cover of panel...
-
Page 11: S T E P S O F A S S E M B L Y
6 . S T E P S O F A S S E M B L Y... - Page 13 7 . S T R U C T U R E O F F I N I S H E D P R O D U C T...
- Page 15 8. OPERATING INSTRUCTION OF TREADMILL...
- Page 17 9. OPERATING INSTRUCTION OF INSTRUMENT Parameter Specification Motion Parameters under different running modes: Lowest speed displayed: 1 km/h Highest speed displayed: 25 km/h Longest running time under TIME MODE: 99 mins Shortest running time under TIME MODE: 8 mins ...
- Page 18 DISTANCE window: 1. Display running distance when running 2. When automatic program is set, display the serial number of the program CALORIE window: 1. Display calories consumed when running HEART RATE window: 1. Display the corresponding heart rate when both hands grasp the heartbeat sheet steel INCLINE window: 1.
- Page 19 PROG— functional description: selects automatic program and FAT Operation instruction: This key may access to setting of automatic program when electronic meter is under full-manual operation mode 2. After under automatic program setting, fat rate test setting may be available if continue to use this key.
- Page 20 Volume +/- — functional description: Adjust volume of songs in USB Operation instruction: 1. May adjust the volume of songs in connection with USB (when MP3 jack is in vacancy) after power on and connect safety key Specification on Running Modes A.
- Page 21 Operation instruction: Initial speed is 1KM/H. CALORIE window counts down as per the set calorie. Positive counting of time and distance is started from 0. Adjust speed through SPEED +/- and incline through INCLINE +/-. When the set calorie counts down to 0, the electronic meter gradually stops.
- Page 22 VIII. Sleeping Function Specification on Safety Key Function Specification on Quick Stop After safety key is connected, the quick stop switch must be closed for the normal start of the treadmill. When the treadmill is running, once pressing STOP, it will quickly stop. The lattice window of the electronic meter displays “QUICK STOP OPEN”.
- Page 23 Appendix 1: P1—P12 Program Motion Diagram Instruction on Common Errors of Treadmill 1: Electronic meter display: E01! Communication failure Troubleshooting: check upper and lower control connection lines to see if they are well connected; if so, replace the electronic meter or frequency converter 2: Electronic meter display: E05! Overcurrent protection Troubleshooting: Overcurrent when the motor is running and excesses the set value;...
- Page 24 10. DESCRIPTION OF PROGRAM...
- Page 25 1-20.8KM/H Ascension 0-10% (18 Levels) Mileage...
- Page 27 11. FAULT ANALYSIS AND HANDLING...
- Page 28 1 2 . D A I L Y M A I N T E N A N C E Maintenance of electric treadmill: Appropriate maintenance is the only way to keep your treadmill in optimum state. Wrong maintenance will damage or shorten the service life of treadmill.
- Page 30 1 3 . I M P O R T A N T M A T T E R...
