Summary of Contents for Orlaco CornerEye LHD

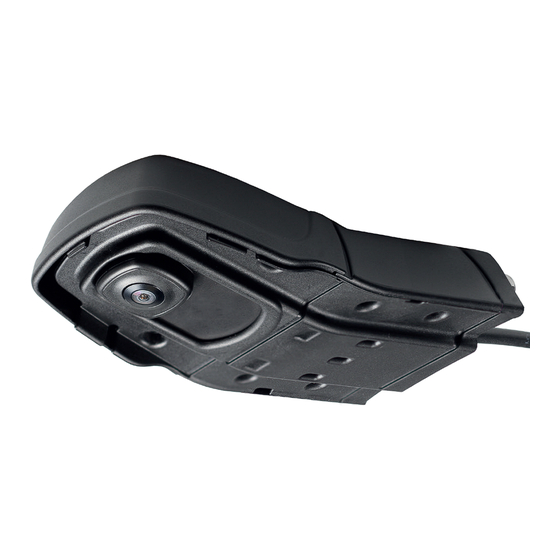

- Page 1 DAF Drilling template CornerEye ® Manual for drilling pattern No. IM0973601, A 05 09/2016 English...
-
Page 2: Table Of Contents
Manual drilling pattern DAF Drilling template CornerEye ® Safety In order to guarantee safe operation, these safety instructions must be read before you start using this equipment. Bolts 2x M6 x 35 Bolts 2x M6 x 35 • Do not open the enclosure. This can cause damage, short-circuiting or electrical shocks. -
Page 3: Introduction
Manual drilling pattern 1. introduction Description to drill the hole pattern for the CornerEye® Camera on the: Reference point • Corner shields DAF XF and CF. • Sun visor DAF LF. 2. DAF XF, CF Corner shields 2.1. Step 1 Determine the height position of the 23mm hole. -
Page 4: Step2
Manual drilling pattern 2.2. Step 2 Using this template, you can determine the other dimensions on the corner shields. NOTE: To print this page, use the setting “actual size” or “scale 100%” = A3. 95mm Position this side to outer edge of corner shield 23mm hole 8mm hole (2x) 170mm to Reference point... - Page 5 Manual drilling pattern IM0973601 A 05...
-
Page 6: Daf Lf Sun Visor
Manual drilling pattern Manual drilling pattern 3. DAF LF Sun visor Using this template, you can determine the dimensions on the DAF LF Sun visor. Attention! Only Class VI possible for DAF LF! NOTE: To print this page, use the setting “actual size” or “scale 100%”. -
Page 7: Maintenance And Cleaning
Manual drilling pattern Manual drilling pattern 4. Maintenance and cleaning This product can only work correctly by using fluid for glass cleaning used in the automotive industry with desired temperature of -40°C to +85°C. Do absolutely not use aggressive chemicals or abrasive cleaning agents. - Page 8 At our facility in Barneveld we locate our design, manufacturing, warehousing and service department. Vision is our mission ® . Orlaco therefore deploys the development, manufacture, supply and service of camera and display systems that will improve safety and efficiency of all vehicles, machinery and vessels.
