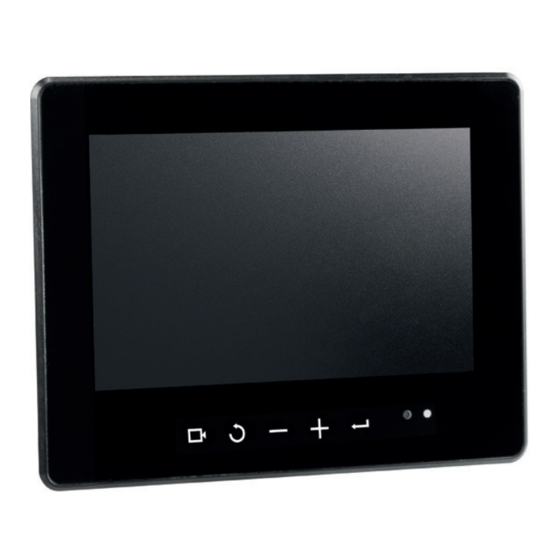

- Page 1 Monitor 7” HLED Installation manual Manual No. IM0973585 A 02 01/2019 English Article number: 0226010...
-
Page 2: Table Of Contents
Orlaco Products BV Service department. The camera and monitor systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations. All products are manufactured in accordance with the ISO 9001 quality manage- ment, IATF 16949 quality automotive and ISO 14001 environmental management. -
Page 3: Monitor Placement
1. HLED variants HLED Art. No. Video Cable Bracket Power Cable Page Monitor 7” HLED 0226010 1 metre 4 pin female, digicoax 1 metre 2. Monitor placement (guideline) Moderate Good The correct placement of the monitor depends on the type of the vehicle. -
Page 4: Basic System Installations
Installation manual 3. Basic system installation 1 camera system Monitor 7” HLED Art. No. 0226010 Camera HMOS with bracket Power Cable Uni DigiCoax 12...24V/DC 4 camera system HMOS Camera with bracket Camera 1 Monitor 7” HLED Cable DigiCoax Art. No. 0226010... -
Page 5: Emc
Installation manual 3.1. Electromagnetic compatibility installation instructions (EMC). Preferred installation Installation especially for forklifttrucks. Warning! On vehicles with separated powerwiring like electrical forklifttrucks no other installation is allowed, the shielding may NOT in any way be connected to the battery: Color/wire Function Vehicle connection:... -
Page 6: Technical Specifications
Temperature/humidity test According IEC60068-2-1/2/3/14/30/38. Certifi cation Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001, ISO14001, ISO-TS16949. Approvals R10, EN13309, ISO EN 14982, ISO 13766. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Assembly, Connection And Data Monitor 7
Installation manual 5. Assembly, connection and data Monitor 7” HLED Article No. 0226010 Monitor 7” HLED Cables 1m multicable (power) open wired, 1m multicable (video) with M16 molded 4p Digicoax female connector Weight 0,84kg (Monitor, cables and connector) 178,9 151,5... -
Page 8: Maintenance And Cleaning
Orlaco. This also applies to the associated drawings and figures. Orlaco reserves the right to make changes to components at any time without informing customers beforehand or directly. - Page 9 Installation manual IM0973585 A 02...
- Page 10 Installation manual IM0973585 A 02...
- Page 11 Installation manual IM0973585 A 02...
- Page 12 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
