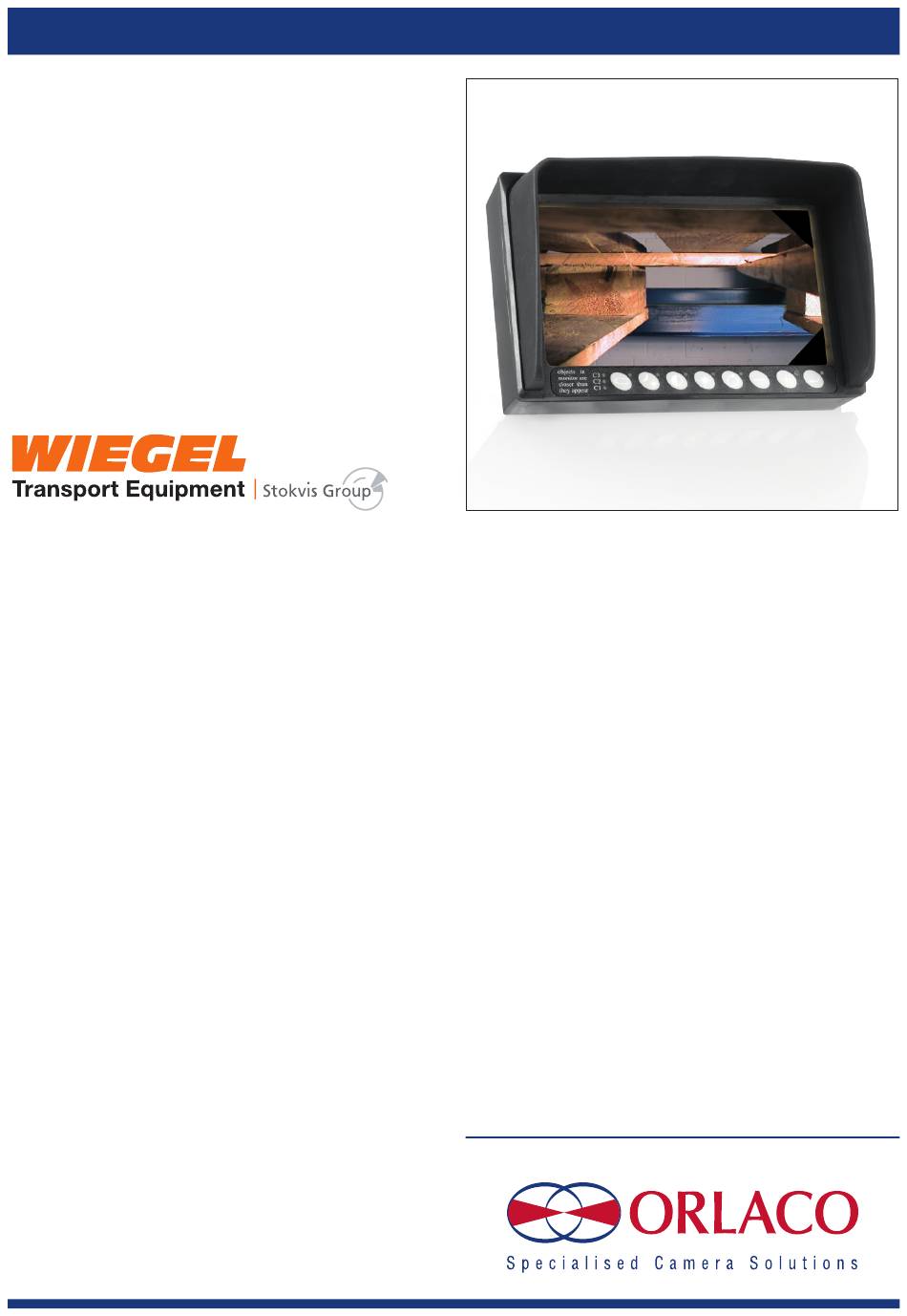

- Page 1 Toyota (BT) RR Series System Manual Manual No. IM0993610, A 01 English Article no. 0401412...
-
Page 2: System Manual
Orlaco Products BV Service department. The camera and monitor systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations. All products are manufac- tured in accordance with the ISO 9001 quality management, IATF 16949 quality automotive and ISO 14001 environmental management. - Page 3 System Manual Connector 8P male To BT X50 connector (See Fig. 3 on page 4) Connector 8P female Connector 3P female 1 white 2 blue 3 red Art. No. 0310820 Connector 3P male Mastcable Forklift 15m 8p 3P male 8P female Springplates included 4P male 1 coax...
- Page 4 Roll out the mastcable entirely to remove kinks before installing it in the mast of the truck. The Orlaco mastcable (0301820) is placed in the mast instead. The original BT springs are connected to the spring plates (0403390) that are included at the mastcable (0301820), and both junctionboxes are installed in the forkcarriage and in the reachwagon.

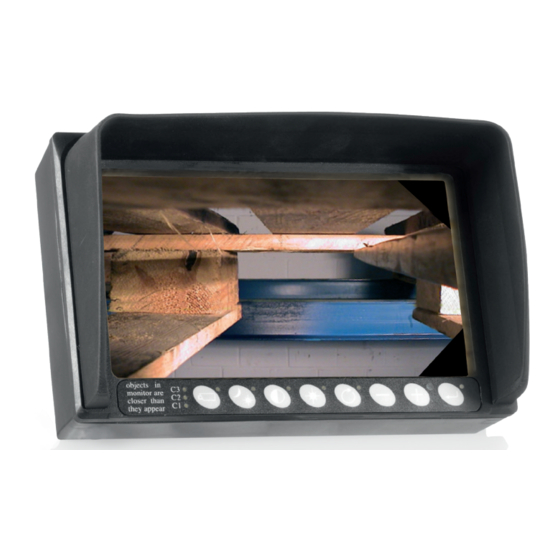

- Page 5 System Manual Further installation pictures: Junctionbox (0404720) in forkcarriage Junctionbox (0404710) in reachwagen Installation of the 0225000 monitor with clamping bracket SM0993610 A01...
- Page 6 System Manual Springplates forklift connected to existing springset SM0993610 A01...
- Page 7 BV. All rights reserved. No part of this manual may be reproduced and/ or made public in printed form, in photocopy form or on microfilm, or in any other way, without the prior written permission of Orlaco. This also applies to the associated drawings and figures.
- Page 8 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the profes- sional market that improve the drivers view and increase operating efficiency.
