BT Reflex RRE-Series

Reachtruck

System Manual

Manual no. 0993630 A 02

Art. No. Set 0401442

English

Need help?

Do you have a question about the Wiegel BT Reflex RRE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Orlaco Wiegel BT Reflex RRE Series

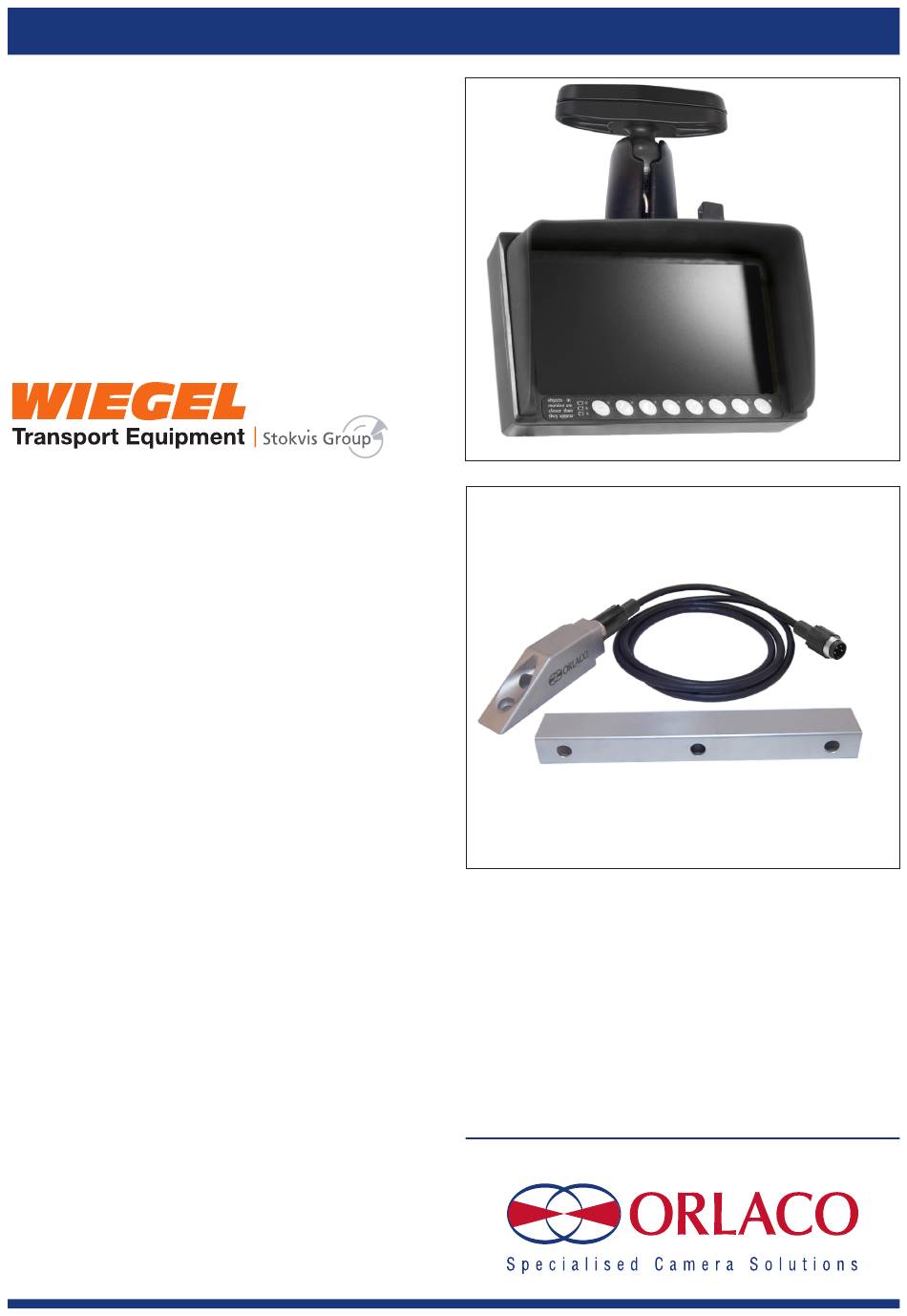

Page 1 BT Reflex RRE-Series Reachtruck System Manual Manual no. 0993630 A 02 Art. No. Set 0401442 English...
Page 2: Installation
BT Reflex RRE-series reachtruck The BT Reflex RRE-Series reachtruck has a 12-wire mastcable as stan- dard for control of the functions in the forkcarriage such as the solenoid valve. Especially for this model reachtruck Orlaco developed a mastcable. Tyco connector male Important Roll out the mastcable entirely to remove kinks before installing it in the mast of the truck.
Page 3 Installation Tyco connector female 0305970 Mast cable forklift 15m BT RRE Springplates (0403390) included Springplates forklift 4p female 4P male 0301960 Uni cable 1m Included with 0198710 camera 0198710 Forkcamera IM0993630 A 02...
Page 4 Figure 2. Camera installed on fork The standard BT mastcable is removed from the mast. To mount the Orlaco mastcable it is recommended to start at the side of the forkcarriage. The female connectors must be at the side of the forkcarriage.
Page 5 Installation The original BT springs are connected to the spring plates that are included in the mastcable. see figure 6. Figure 6. Springsets connected In some circumstances it occurs that the mastcable is moving along hydraulic connection at the free lift cylinder. To prevent this to cause any problem with the mast cable, a simple adjustment can be made.

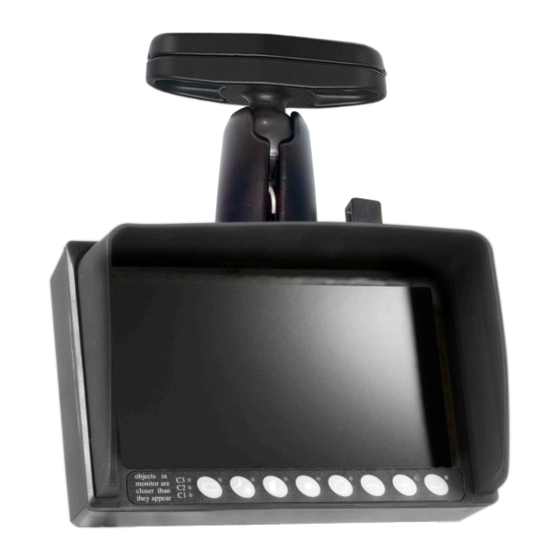

Page 6 Installation The monitor can be mounted at the cabin roof, as shown in figure 9. Figure 9. Mounting base for the monitor The camera cable from the monitor is guided to the cabin via the roof support. The camera cable is connected to the 5-meter cable 0304341. The monitor’s power wires are connected to the 48V/DC main power sup- ply.
Page 7 • If there have been alterations or changes to this equipment that have or made public in printed form, in photocopy form or on microfilm, or in not been specifically approved by Orlaco, use of this equipment is not any other way, without the prior written permission of Orlaco. This also permitted.
Page 8 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the profes- sional market that improve the drivers view and increase operating efficiency.
