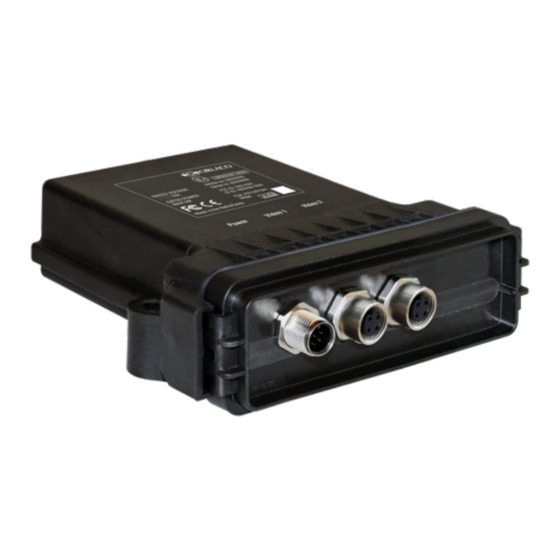

- Page 1 WISR SR/WISR LR User manual System setup and Local/Remote setup procedure No. UM0972260 A 07 Art. No: 0300100; WISR SR Art. No: 0300150; WISR LR 04/2021 English...
- Page 2 Used photographs and illustrations give general information and may differ from the products you use. Contact your Orlaco dealer if you have questions, additional information, or want to make changes that are not described in this manual.
-
Page 3: Table Of Contents
Internet Protocol (Address). Unique address inside a network. MAC (-address) Media Access Control Address. Worldwide unique address for Ethernet devices. Region Of Interest. Used to specify resolution or crops of the video image. WISR SR WiFi Sender Reciever Short Range WISR LR... -
Page 4: Wisr System Setup
User manual 1. WISR system setup The WISR consists of a minimal setup of the tablet with the PhotonView app, a WISR product and a camera. This can be expanded to a tablet with two WISR units and up to four cameras. The configuration of the system is extensive and everything can be configured and controlled with Figure 2... - Page 5 User manual connected WISR can be found by bringing up the menu screen and tap the Connections button (Figure 7). On the WISR connections screen select ‘COUNTRY’. See figure 5. The first country name in blue is the configured country. Figure 8 PhotonView opens with the on-screen menu, see figure 6, this screen disappears after 10 seconds...
-
Page 6: Camera Configuration
User manual it asks for the ‘WISR Password’, also the keyboard is displayed. See figure 13. Enter the password ‘orlacowireless’ and tap CONNECT. CAUTION: The WISR hardware and PhotonView app have a default configuration and it’s best to change the WiFi name and password. When you are trying out the system for the first time and get it working, leave it like it is. - Page 7 User manual Figure 18 Figure 17 connected cameras. After a few moments a screen like (figure 17) will appear. Figure19 Now for each ‘detected’ camera, tap on it (figure 18) and fill in the fields. Address all three fields to assure that they contain the right value.
-
Page 8: Manual Configuration (Emos)
User manual 1.2.2. Manual configuration (EMOS) Tap the screen for the On-screen menu and tap the Config icon, see figure 23, for the Settings selection screen, see figure 24 and tap ‘Camera configuration’. If the app asks to allow access to files, see figure 25, answer ALLOW. - Page 9 User manual Figure 31 Figure 32 Figure 27 Figure 28 Figure 29 Figure 30 UM0972260 A 07...
-
Page 10: Wisr Configuration
User manual 1.3 WISR configuration Tap the main view screen to open the on-screen menu and tap the Configuration icon, figure 33 and choose ‘WISR configuration’ on the Settings Selec- tion screen, see figure 34. This opens a web browser and shows the WISR Configuration portal, see figure 35, tap the User field and select ‘Administrator’, see figure 36, then tap Figure 33... - Page 11 Firmware, the firmware can be updated Over-The-Air or by connecting the WISR to a PC. A newer version will be distributed together with the PhotonView app from the Orlaco download site. Firmware updates can be done by the Administrator only. See chapter 1.4. WISR firmware update, page 10.
-
Page 12: Wisr Firmware Update
User manual 1.4 WISR firmware update The WISR firmware needs to be updated when the installed version of the PhotonView app detects when the version of the connected WISR does not match Figure 39 the version of the app. PhotonView displays a message like Figure 39 on the top-center of the screen. -
Page 13: Photonview Configuration
User manual 1.5. PhotonView configuration In PhotonView from the main view screen, tap for the on-screen menu, tap the configuration gear icon and in the Settings selector tap on ‘Photon- View App settings’. In the default configuration, there is no Google user account associated with the tablet and the PhotonView menu is ‘open’... - Page 14 User manual show the camera in a Normal, Mirrored, Flipped or Mirrored and Flipped way. This setting will override the current EMOS camera setting. The fields Command IP must be the same as in the Camera config for ‘Connection, Camera IP’, Com- mand Port must be the same as in the Camera config for ‘Connection, Camera Port’...
-
Page 15: Local/Remote Wisr Setup
User manual 2. Local/Remote WISR setup Connect the cameras to the WISRs and power everything up. In chapter 4, page 17, an overview sketch is shown On the tablet start PhotonView and go to the WiFi of a 4-camera system. selection screen. -
Page 16: Remote Wisr Setup
User manual 2.2. Remote WISR setup These instructions configure the cameras of the remote WISR to be displayed in the lower part of the quad screen. The lower left will be camera 3 and the lower right will be camera 4. Bring the main menu up again and go to the WISR configuration. -
Page 17: Local Wisr Setup
User manual 2.3 Local WISR setup These instructions are like the ones in the previous chapter, except that the cameras of the local WISR will be displayed in the upper part of the quad screen. Upper left will be camera 1 and upper right will be camera 2. -
Page 18: Troubleshooting Guide
User manual 3. Troubleshooting guide. 3.1. Your WISR is not on the WISR connections screen On the WISR connections screen, a list of WISRs will be visible. If ‘your’ WISR is not on the list, tap Figure 57 the Search button, see figure 57, to refresh the screen and show all WISRs that are in range. -
Page 19: System Overview
User manual 4. System overview 2 camera system This configuration is valid only for WISR SR system. WISR router Power Wi-Fi ® Power Extension Tablet cable Power WISR router local 4 camera system Power Wi-Fi ® Power Tablet Wi-Fi ®... - Page 20 User manual Application of the WISR Long Range system System overview WISR LR Cabin Tablet Power supply Art. No. 0503810 Power extension cable(To be designed). 1 x 8p Male input 3 x 8p Female output To be designed. Camera WISR router local 8p male EMOS Ethernet 230V...
-
Page 21: Version Details
User manual 5. Version details Version A 01. First issue, May 2019 Version A 02. Art. No. changed, October 2019 Version A 03. Changed text and images, March 2020 Version A 04. Art. No. Camera changed, June 2020 Version A 05. WISR LR added, February 2021 Version A 06. - Page 22 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
