Summary of Contents for Orlaco 0400120

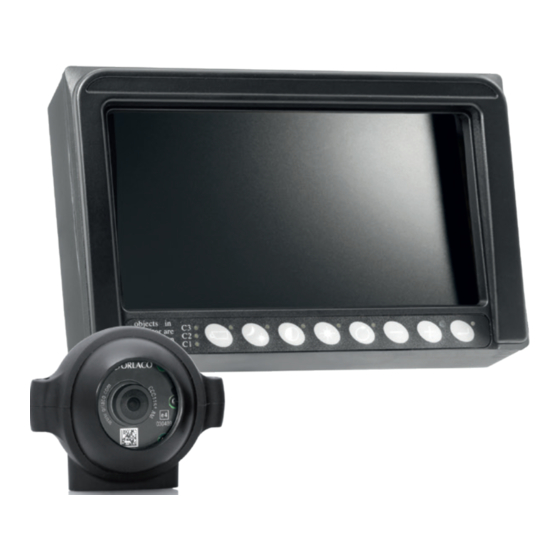

- Page 1 System Manual Economy line single camera kit Kit number 0400110 Economy line dual camera kit Kit number 0400120 Manual no. SM0974070 A 01 11/2011 English...
-
Page 2: Table Of Contents
Orlaco Products BV Service department. The camera/display systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations, where applicable. All products are manufactured in accordance with the ISO 9001 quality... -
Page 3: Monitor Placement
System manual 1. Monitor placement (guideline) The correct placement of the monitor depends on the type of the vehicle. Please take note of the following guidelines when installing the monitor. Good Obstruction of the field of vision Moderate The monitor must be placed in such a way that the field of vision of surrounding traffic and the work area is Good Good... -
Page 4: System Overview Kits
5 0303410 Cable 11m Uni potted plugs 3 0400610 Bracket Economy line display Power Economy line dual camera kit Kit No. 0400120 1 0207700 Display 7” Economy PL 4 0146010 Camera CMOS 115° PAL 2 0304081 Cable 1m + 1m Economy Line Display... - Page 5 System manual 3. Electromagnetic compatibility installation instructions (EMC) Preferred installation Installation especially for forklifttrucks. Warning! On vehicles with separated powerwiring like electrical forklifttrucks no other installation is allowed, the screening may NOT in any way be connected to the battery: Color/wire Function Vehicle connection:...
-
Page 6: Technical Specifications
Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001:2000, ISO14001: 2004, ISO TS 16949. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Mounting And Demounting Display
System manual 5. Mounting and demounting display 7" Economy PL DDIN adapter Adjustable bracket, Art no. 0400610, see figure 3. Clamp Bracket Display housing ∅ 6,2 4x units in mm Figure 3 Disassembling of the display (from bracket): ob jec ts ob jec ts ob jec ts mo nit or... - Page 8 System manual 6. Electrical connections Economy line single camera kit Cable 0,5m Economy Line Display, Art no. 0303070, see figure 4. Connections to the Display. 1 = Red = Power 2 = White = 0V 3 = Blue = Camera 1 Camera side 4 = Brown = Camera 2...
-
Page 9: Electrical Connections
System manual 7. Electrical connections Economy line Dual camera kit Cable 1.0m + 1.0m Economy Line Display, Art no. 0304081, see figure 5. Connections to the display 1 = Red = Power 2 = White = 0V 3 = Blue = Camera 1 4 = Brown = Camera 2... -
Page 10: Mounting The Cable Clamp
System manual 8. Mounting the cable clamp clamp Step 1 Step 2 clamp connector connector Step 1. Turn the cable first to the outside and push it to the clamp. Put the connector Step 2. Push the cable with a twisting motion between the hooks. against the clamp clamp clamp... -
Page 11: Disposal
Orlaco. This also applies to the associated drawings and figures. Orlaco reserves the right to make changes to components at any time without informing customers beforehand or directly. All dimensions given are for commercial purposes. - Page 12 At our factory in Barneveld, we have a production department, warehouse, design department, service department and showroom. Vision is our mission®, and Orlaco therefore deploys the deve- lopment, manufacture, supply and service of camera and display systems that will improve safety and efficiency of all vehicles, machinery and vessels.
