ASROCK Rack X570D4U-2L2T/BCM Quick Installation Manual

*15G065165006AK*
P/N: 15G065165006AK V1.1
Quick Installation Guide
X570D4U-2L2T/BCM | X570D4U-2L2T | X570D4U
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

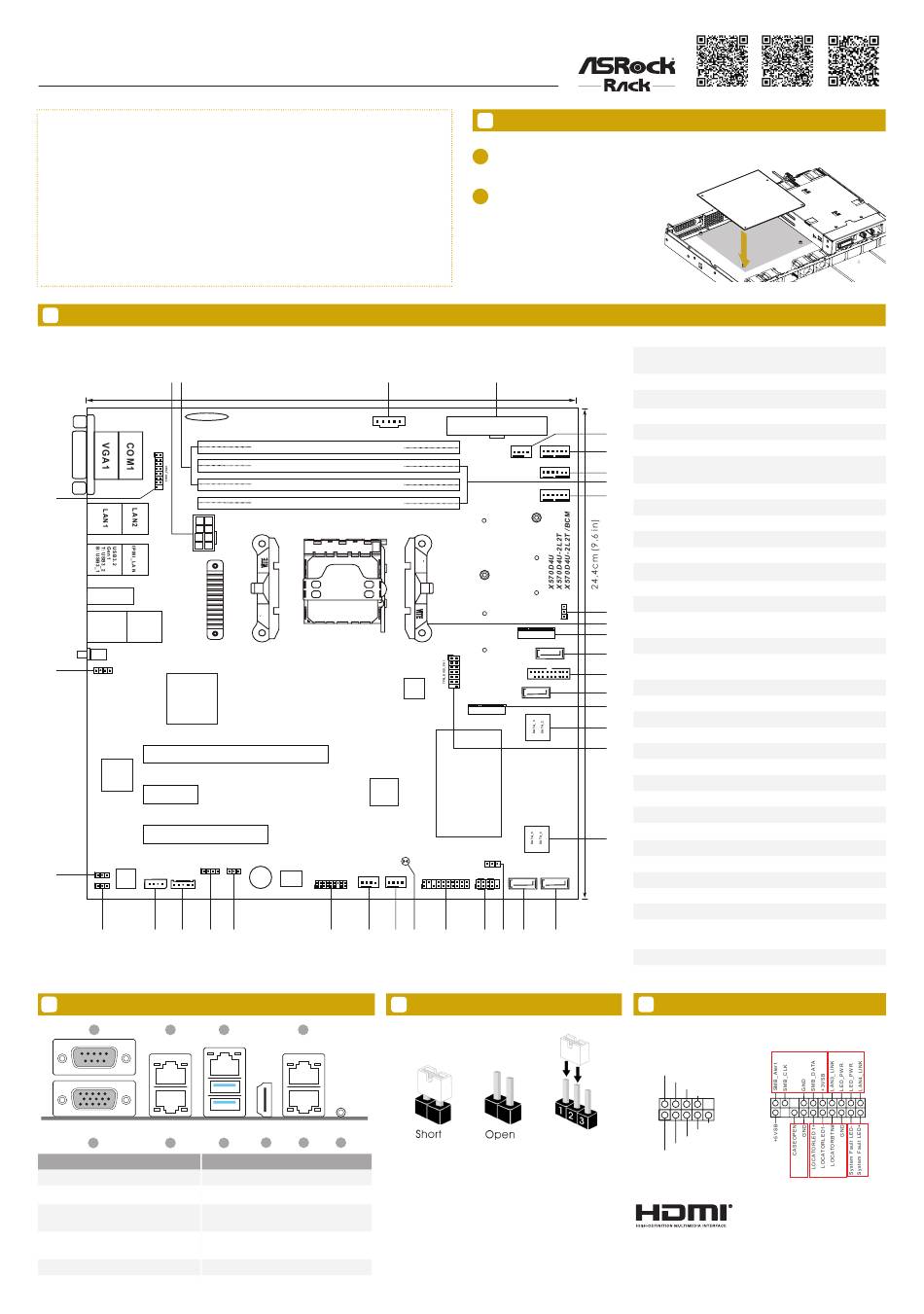

2 Motherboard Layout
1 2
BAT1
1
36
ATX12V3
HDMI1
LAN3 LAN4
(X570D4U-2L2T / (X570D4U-2L2T /
X570D4U-2L2T/BCM only) X570D4U-2L2T/BCM only)
UID1
LED_LAN_3_4
35
1
(X570D4U-2L2T /
X570D4U-2L2T/BCM only)
X550
(X570D4U-2L2T only)
BCM57416
(X570D4U-2L2T/BCM only)
PCIE6
ASPEED
2500
PCIE5
PCIE4
SPEAKER1
CHASSIS_ID3
34
BMC 1
IPMB_1 BMC_SMB_1
1
CHASSIS_ID2 ROM
1
1
1
33 32 31 30
3 I/O Panel
2
4
1 3
No. Description No. Description
1 VGA Port (VGA1) 6
2 Serial Port (COM1) 7
3 1G LAN RJ-45 Port (LAN1) 8
4 1G LAN RJ-45 Port (LAN2) 9
5 USB 3.2 Gen2 Ports (USB3_1_2) 10
3
24.4cm (9.6 in)
1
PSU_SMB1
DDR4_B1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_A2 (64 bit, 288-pin module)
Socket
AM4 PGA 1331
Super
I/O
RoHS
CLRCMOS1
CHASSIS_ID1
FAN1
1 FAN2
Dr.
TPM1
BUZZER1
Debug
1
29 28 27 26
4
6 9
5 7 8 10
LAN RJ-45 Port (IPMI_LAN1)
HDMI Port
10G LAN RJ-45 Port (LAN3)
(X570D4U-2L2T / X570D4U-2L2T/BCM only)
10G LAN RJ-45 Port (LAN4)
(X570D4U-2L2T / X570D4U-2L2T/BCM only)
UID Switch (UID1)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
4
ATXPWR1
FAN4
FAN3
FAN5
FAN6
NUT110_1 NUT80_2
NUT60_2
NUT80_1
NUT42_2
SATAPWR1
1
NUT60_1
M2_2
SATA_0
NUT42_1
1
USB3_3_4
SATA_1
BIOS
ROM
M2_1
AMD
X570
T 1 R
1
PANEL1
SATA_6 SATA_7
AUX_PANEL1
PLED PWRBTN
1
1
HDLED RESET
25 24 23 22 21 20
Jumper Cap On/Off
When the jumper cap is placed on the pins, the jumper
is "Short". If no jumper cap is placed on the pins, the
jumper is "Open".
The illustration shows a 3-pin jumper whose pin1 and
pin2 are "Short" when a jumper cap is placed on these 2
pins.
www.asrockrack.com
X570D4U-2L2T/BCM X570D4U-2L2T
1 ATX 12V Power Connector (ATX12V3)
2 x 288-pin DDR4 DIMM Slots
2
(DDR4_A1, DDR4_B1, Blue)
3 PSU SMBus Header (PSU_SMB1)
4 ATX Power Connector (ATXPWR1)
5 System Fan Connector (4-pin) (FAN3)
6 System Fan Connector (6-pin) (FAN4)
5
7 System Fan Connector (6-pin) (FAN5)
6
2 x 288-pin DDR4 DIMM Slots
8
7
(DDR4_A2, DDR4_B2, White)
8
9 System Fan Connector (6-pin) (FAN6)
9
10 SATA DOM Power Connector (SATAPWR1)
11 AM4 PGA 1331 Socket
12 M.2 Socket (M2_2) (Type 2242 / 2260 / 2280)
13 SATA3 DOM Connector (SATA_0), Red
14 USB 3.2 Gen1 Header (USB3_3_4)
15 SATA3 Connector (SATA_1)
16 M.2 Socket (M2_1) (Type 2242 / 2260 / 2280 / 22110)
10
SATA3 Connector (SATA_3)(Upper),
17
11
SATA3 Connector (SATA_2)(Lower)
12
18 TPM-SPI Header (TPM_BIOS_PH1)
13
SATA3 Connector (SATA_5)(Upper),
19
SATA3 Connector (SATA_4)(Lower)
14
20 SATA3 Connector (SATA_7)
15
21 SATA3 Connector (SATA_6)
16
22 Thermal Sensor Header (TR1)
17
23 System Panel Header (PANEL1)
18
24 Auxiliary Panel Header (AUX_PANEL1)
25 Clear CMOS Pad (CLRMOS1)
26 System Fan Connector (4-pin) (FAN1)
27 System Fan Connector (4-pin) (FAN2)
28 TPM Header (TPM1)
29 Chassis ID1 Jumper (CHASSIS_ID1)*
19
30 Speaker Header (SPEAKER1)
31 BMC SMBus Header (BMC_SMB_1)
32 Intelligent Platform Management Bus Header (IPMB_1)
33 Chassis ID2 Jumper (CHASSIS_ID2)*
34 Chassis ID3 Jumper (CHASSIS_ID3)*
Front LAN LED Connector (LED_LAN_3_4)
35
(X570D4U-2L2T / X570D4U-2L2T/BCM only)
36 Front VGA Header (FRNT_VGA1)
5 Headers
System Panel
PLED+
PLED-
PWRBTN#
GND
1
GND
RESET#
GND
HDLED-
HDLED+
The terms HDMI® and HDMI High-Definition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
X570D4U
*Reserved for BOM option.
