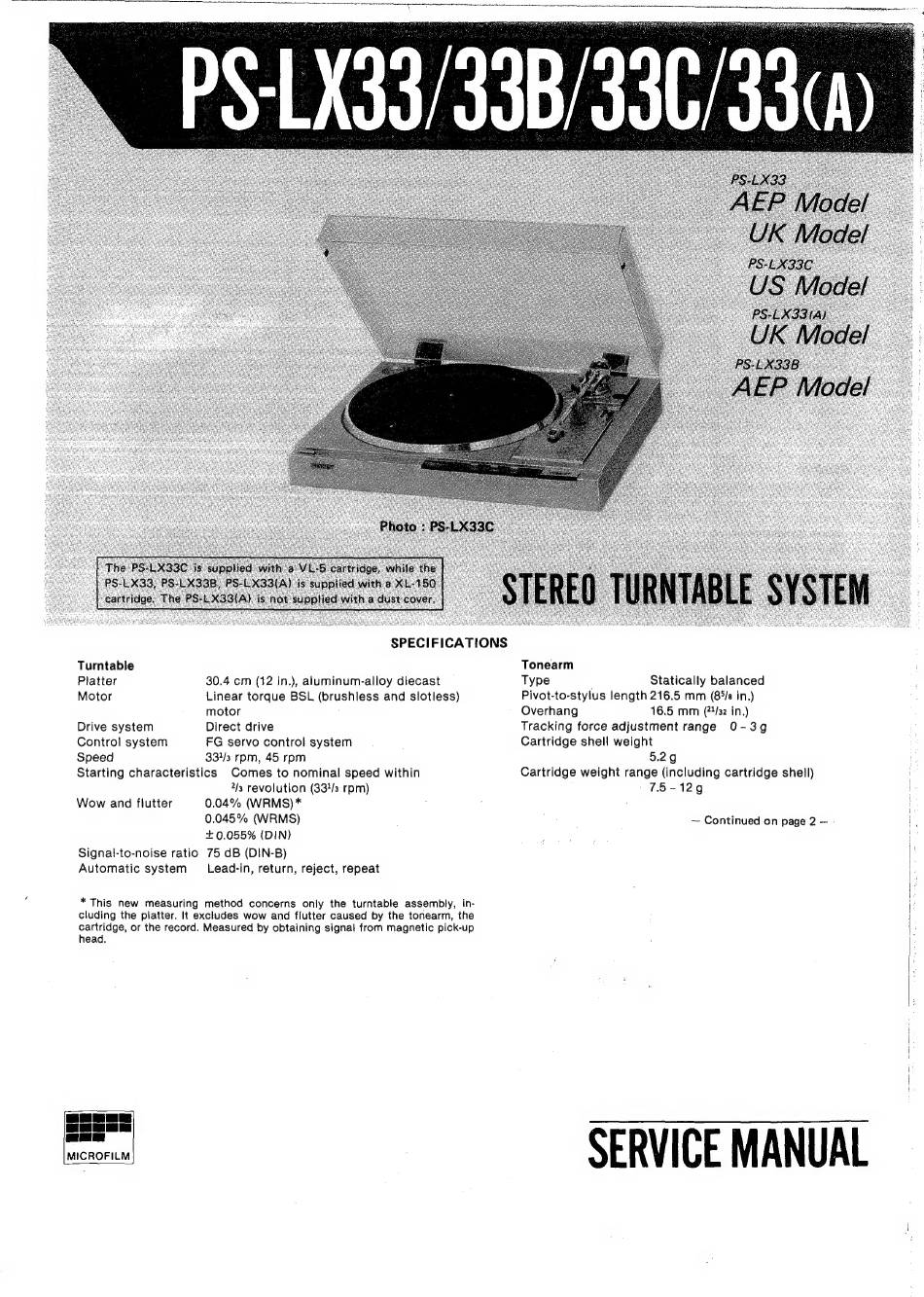

Sony PS-LX33 Service Manual

SPECIFICATIONS
Turntable Tonearm
Platter 30.4 cm (12 in.), aluminum-alloy diecast Type Statically balanced
Motor Linear torque BSL (brushless and slotless) Pivot-to-stylus length 216.5 mm (85s in.)
motor Overhang 16.5 mm (74/32 in.)
Drive system Direct drive Tracking force adjustment range 0O-3g
Control system FG servo control system Cartridge shell weight
Speed 3343 rpm, 45 rpm §.2g
Starting characteristics Comes to nominal speed within Cartridge weight range (including cartridge shell)
7s revolution (33+/3 rpm) 75-129
Wow and flutter 0.04% (WRMS) * ; :
0.045% (WRMS) ~— Continued on page 2 — -
+ 0.055% (DIN)
Signal-to-noise ratio 75 dB (DIN-B)
Automatic system —_Lead-in, return, reject, repeat
* This new measuring method concerns only the turntable assembly, in-
cluding the platter. It excludes wow and flutter caused by the tonearm, the
cartridge, or the record. Measured by obtaining signal from magnetic pick-up
head.
