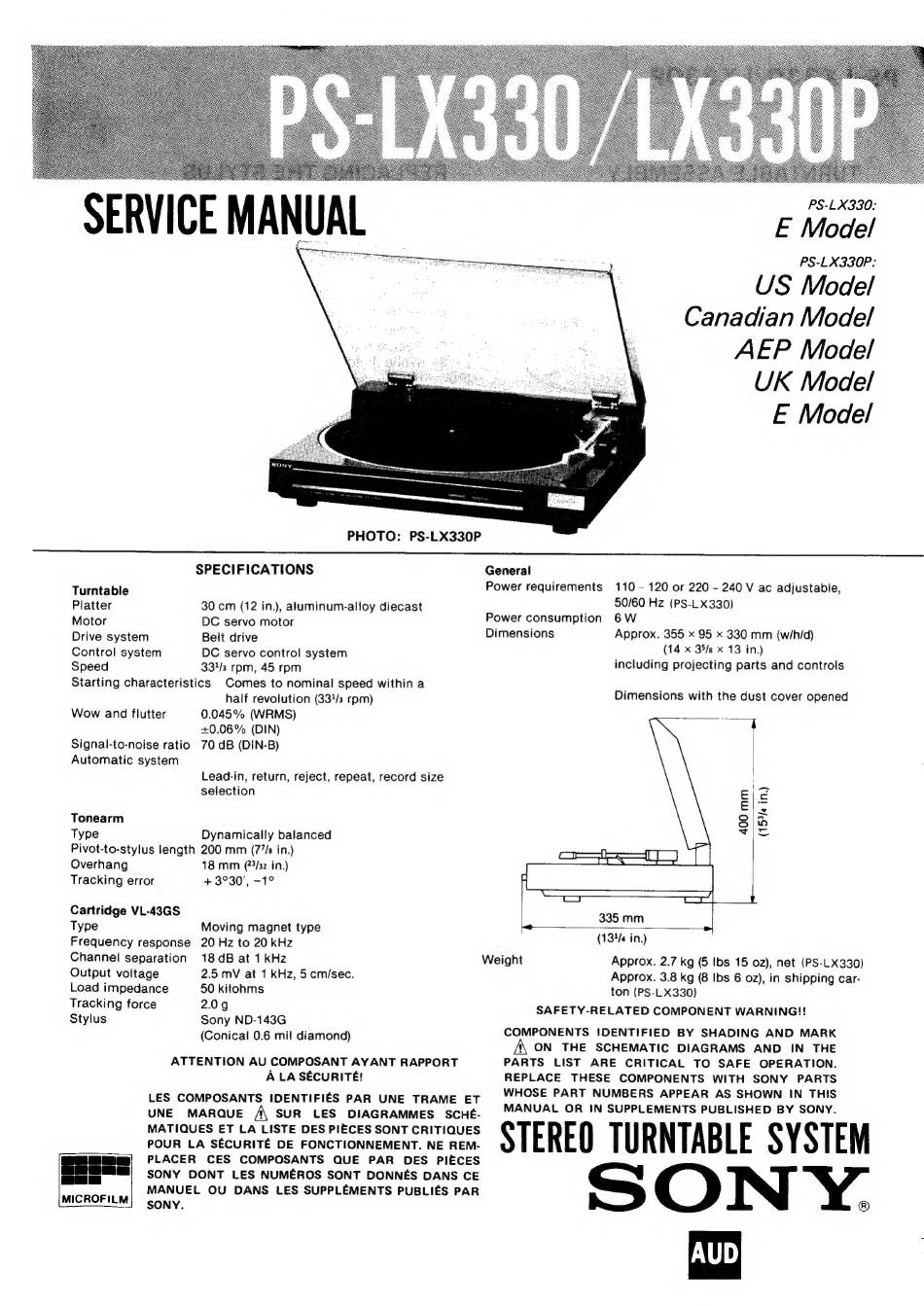

Sony PS-LX330 Service Manual

SERVICE MANUAL
Turntable
Platter
Motor
Drive system
Control system
Speed
Tec
PHOTO: PS-LX330P
SPECIFICATIONS
30 cm (12 in.), aluminum-alloy diecast
DC servo motor
Belt drive
DC servo control system
334/3 rpm, 45 rpm
Starting characteristics Comes to nominal speed within a
Wow and flutter
Signal-to-noise ratio
half revolution (334/3 rpm)
0.045% (WRMS)
+0.06% (DIN)
70 dB (DIN-B)
Automatic system
Tonearm
Type
Pivot-to-stylus length
Overhang
Tracking error
Cartridge VL-
Type
Frequency response
Channel separation
Output voltage
Load impedance
Tracking force
Stylus
MICROFILM
Lead-in, return, reject, repeat, record size
selection
Dynamically balanced
200 mm (77/s in.)
18 mm (73/32 in.)
+ 3°30', -1°
43GS
Moving magnet type
20 Hz to 20 kHz
18 dB at 1 kHz
2.5 mV at 1 KHz, 5 cm/sec.
50 kilohms
20g
Sony ND-143G
(Conical 0.6 mit diamond)
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE /\ SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
Power consumption
Dimensions
Weight
PS-LX330:
E Model
PS-LX330P:
US Model
Canadian Model
AEP Model
UK Model
E Model
General
Power requirements 110 - 120 or 220 - 240 V ac adjustable,
50/60 Hz (PS-LX330)
6W
Approx. 355 x 95 x 330 mm (w/h/d)
(14 x 35/e x 13 in.)
including projecting parts and controls
Dimensions with the dust cover opened
(15% in.)
335 mm
(13% in.)
ton (PS-LX330)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
STEREO TURNTABLE SYSTEM
SONY.
