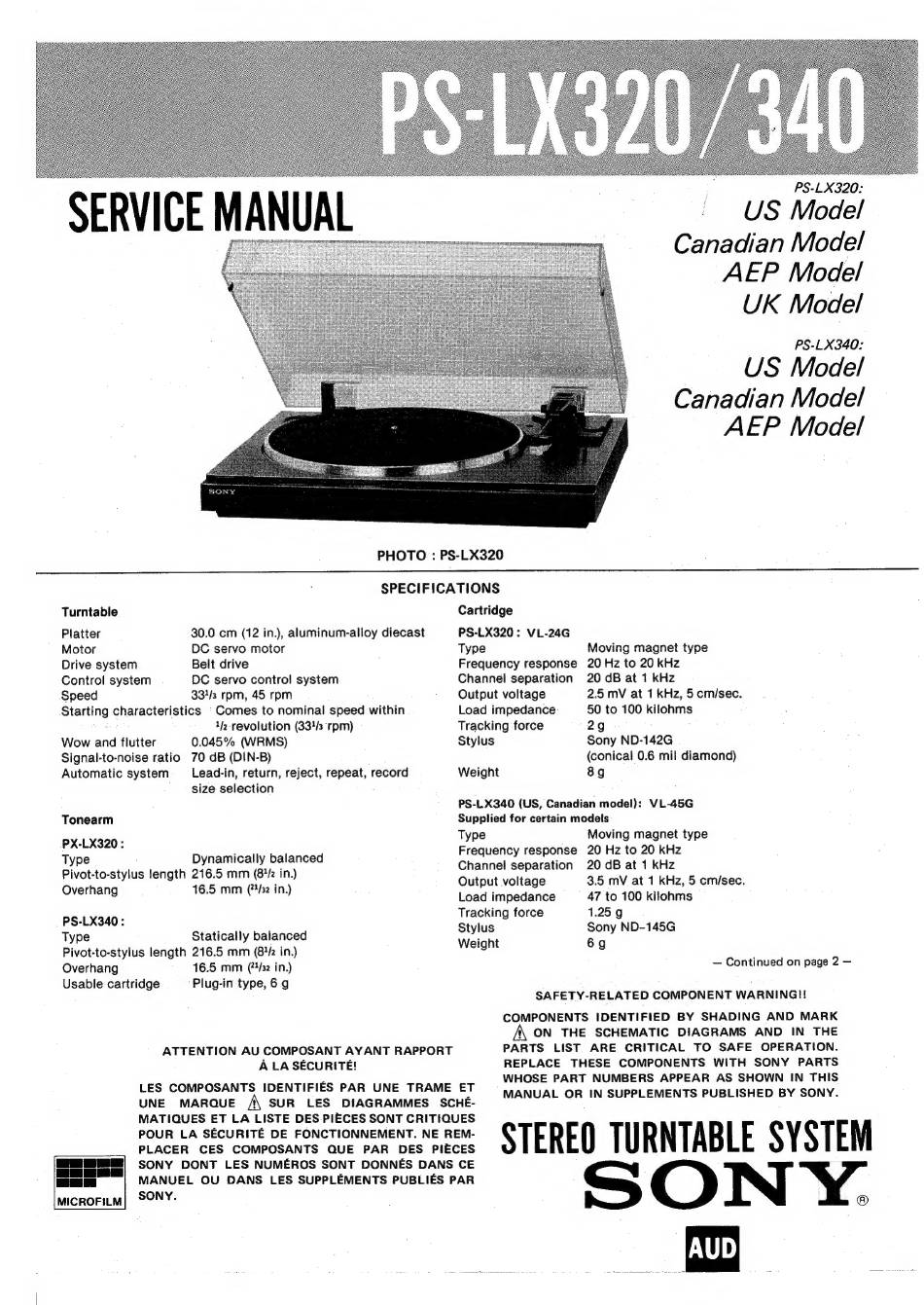

Sony PS-LX320 Service Manual

PS-LX320:
US Model
Canadian Model
AEP Model
UK Model
PS-LX340:
US Model
Canadian Model
AEP Model
PHOTO : PS-LX320
SPECIFICATIONS
Turntable Cartridge
Platter 30.0 cm (12 in.), aluminum-alloy diecast PS-LX320: VL-24G
Motor DC servo motor Type Moving magnet type
Drive system Belt drive , Frequency response 20 Hz to 20 kHz
Control system DC servo contro! system Channel separation 20 dB at 1 kHz
Speed 334/3 rpm, 45 rpm - Qutput voltage 2.5 mV at 1 kHz, 5 cm/sec.
Starting characteristics 'Comes to nominal speed within Load impedance 50 to 100 kilohms
: 4f2-revolution (334/3 rpm) Tracking force 29
Wow and flutter 0.045% (WRMS) Stylus Sony ND-142G
Signal-to-noise ratio 70 dB (DIN-B) (conical 0.6 mil diamond)
Automatic system Lead-in, return, reject, repeat, record Weight 8g
size selection
PS-LX340 (US, Canadian model): VL-45G
Tonearm Supplied for certain models
Type Moving magnet type
Chee: Frequency response 20 Hz to 20 kHz
Type Dynamically balanced '
Pivot-to-stylus length 216.5 mm (842 in.)
Channel separation: 20 G6 att. rz
Overhang 16.5 mm @/s2 in.) Output voltage 3.5 mV at 1 kHz, 5 cm/sec.
Load impedance 47 to 100 kilohms
: Tracking force 1.25 g
ls a : Stylus Sony ND-145G
Type Statically balanced Weight 6
Pivot-to-stylus length 216.5 mm (8%/2 in.)
9
g
Overhang
16.5 mm (4/32 in.)
— Continued on page 2 —
A ON THE SCHEMATIC DIAGRAMS AND IN THE
ATTENTION
AU COMPOSANT AYANT RAPPORT
PARTS LIST
ARE CRITICAL TO SAFE
OPERATION.
A LA SECURITE!
REPLACE
THESE COMPONENTS
WITH SONY PARTS
' WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET = waanuat OR IN SUPPLEMENTS PUBLISHED BY SONY.
UNE MARQUE A SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM- STEREO TURNTABLE SYSTEM
PLACER CES COMPOSANTS QUE PAR DES PIECES
+++ SONY DONT LES NUMEROS SONT DONNES DANS CE
714 MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
microFitm| SONY. Y ®
