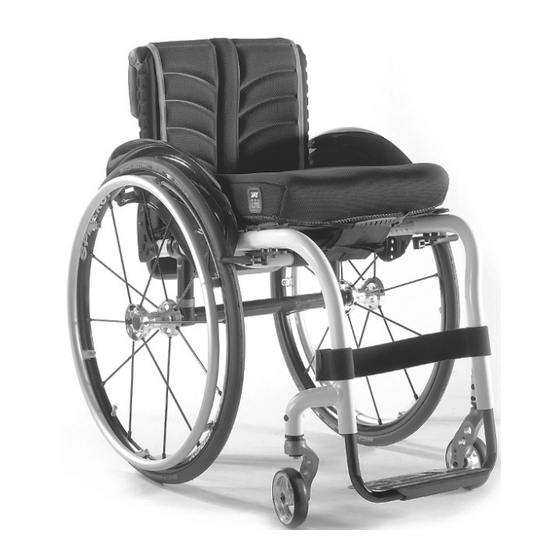

Page 1 Wheelchair Helium & Directions for Use Helium Pro 000690966.GB...
Page 2 We at SUNRISE MEDICAL have been awarded the ISO-13485 certificate, which affirms the quality of our products at every stage, from R & D to production. This products meet the requirements in accordance with EC regulations. Options or accessories shown are available at extra cost. Helium & Helium Pro English Rev. M...
Page 3 1. Push handles 2. Backrest upholstery 3. Sideguard 4. Seat sling 5. Footrest 6. Castors 7. Footboard 8. Fork 9. Quick-release axle 10. Wheel locks 11. Handrim 12. Rear wheel Rev. M English Helium & Helium Pro...
Page 4: Table Of Contents
Brakes Suspension System Hand-Bike Axle Adjustment Helium centre of gravity setting Advice to user that potential Helium Pro centre of gravity setting damage to equipment may occur if CAUTION! Footplate Adjustment the advice is not followed Seat...
Page 5: Foreword
MANUAL HAS BEEN READ AND UNDERSTOOD. Sunrise Medical Thorns Road Brierley Hill West Midlands DY5 2LD England Phone: 0845 605 66 88 Fax: 0845 605 66 89 www.SunriseMedical.co.uk Rev. M English Helium & Helium Pro...
Page 6 All combinations listed have been validated to meet the General Safety and Performance Requirements, Annex I Nr. 14.1 of the Medical Device Regulation 2017/745. Guidance on the combination, such as mounting, can be found at www.SunriseMedical.co.uk. Helium & Helium Pro English Rev. M...
Page 7: General Safety Notes And Driving Limits
To avoid falls and dangerous situations, you should first • Secure your wheelchair on uneven ground or when practice using your new wheelchair on level ground with transferring, e.g. into a car, by using the brakes. good visibility. Rev. M English Helium & Helium Pro...
Page 8 Always make sure that the quick-release axles on the rear wheels are set properly and lock in. If the button on the quick-release axle is not pressed in, the rear wheel cannot be removed. Helium & Helium Pro English Rev. M...
Page 9: Handling
Damage to the backposts may occur if you constantly use • Tyre pressure that is too low the backpost without a step tube, as a lever to pull back on to tip • Wet tyres the wheelchair. • Improperly adjusted wheel locks. Rev. M English Helium & Helium Pro...
Page 10 For the brakes to work properly, this must be pulled until it reaches the stops, (Fig. 4.6). CAUTION! The mounting bolts for the brakes must not be loosened and/or re-tightened. Fig. 4.6 Fig. 4.5 Helium & Helium Pro English Rev. M...
Page 11: Suspension System
The end of the cylindrical camber adapter should be flush with the end of the axle tube. Tighten the screws to a torque of 7 Nm BALL Fig. 4.9 Fig. 4.10 PARALLEL Rev. M English Helium & Helium Pro...
Page 12: Hand-Bike Axle Adjustment
(Fig. 4.10.5). • Repeat the process for the other side. WARNING! The tension of both cables must be checked for tightness before and after each use of the hand-bike. Helium & Helium Pro English Rev. M...
Page 13: Helium Centre Of Gravity Setting
Helium Pro centre of gravity setting Helium centre of gravity setting To adjust the centre of gravity (COG) remove the 2 screws, (A) Remove the rear wheels. Undo both Allen screws (A) on the and move the bracket into preferred position, (Fig. 4.10.7). Refit top of the axle stem (B) on both sides of the wheelchair, (Fig.
Page 14: Footplate Adjustment
The high-mount footrest is fitted on the inner part of the frame and permits a higher footrest position (Fig. 4.13). Please see the separate Owners' Manual for details of the Snoll On accessory. Fig. 4.13 Helium & Helium Pro English Rev. M...
Page 15: Castors
Tighten the screws to 7 Nm. Repeat this procedure on the right side of the chair and adjust the gap so that it is the same amount as on the left side. Rev. M English Helium & Helium Pro...
Page 16: Backrest
Release the backrest by pulling the cord. At the same time, push it forward to fold it down. To return the backrest to its original position, this must be pulled back as far as possible until it locks into place on both sides. Helium & Helium Pro English Rev. M...
Page 17 A. WARNING! Always make sure that the push handles are screwed in completely. WARNING! The Freestyle back is not approved for using the wheelchair as a seat in a car during transport. Rev. M English Helium & Helium Pro...
Page 18: Sideguards
Fig. 4.25 - 4.28 Parts key 1. Outer armpost 2. Height Release Lever 3. Release lever 4. Armrest Pad 5. Transfer bar 6. Sideguard 7. Receiver 8. Clamp 9. Receiver adjustment bolts 10. Clamp bolts Helium & Helium Pro English Rev. M...
Page 19: Push Handle
(1) into the anti-tip tube adapter. c. turn the anti-tip tubes downwards until the release pin locks into the clamp. d. fit the second anti-tip tubein the same way. Rev. M English Helium & Helium Pro...
Page 20: Crutch Holder
When fastened check space between the pelvic restraint belt and user. When correctly adjusted it should not be possible to insert more than the flat of the hand between the lap belt and the user. (Fig. 4.38) Helium & Helium Pro English Rev. M...
Page 21: Tyres And Mounting
Use only soap and water when cleaning the seat upholstery. • You should only use genuine parts approved by Sunrise Medical. Do not use parts from other manufacturers, that have not been by authorised by Sunrise Medical. Rev. M English Helium & Helium Pro...
Page 22: Disposal / Recycling Of Materials
In the following section, there is a description of the materials used on the wheelchair, in view of the disposal or recycling of the wheelchair and its packaging. Helium & Helium Pro English Rev. M...
Page 23: Transportation
These restraints generally comprise of 4 components such as armrest or wheels. individual straps that are attached to each corner of the wheelchair. Fig.A Fig.B Rev. M English Helium & Helium Pro...
Page 24 3. Side view of tie down straps, (Fig. K). Fig. F Fig. I Fig.C PREFERED PREFERED ZONE ZONE Fig. G Fig. J Fig.D Fig. K Fig. H Fig.E Helium & Helium Pro English Rev. M...
Page 25: Nameplate
(Blue Icon) The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the goods to which the warranty relates. Rev. M English Helium & Helium Pro...
Page 26: Technical Data
Drive and control systems for power wheelchairs, requirements and test (ISO 7176-14) n.a. c) Environmental test in accordance with ISO 7176-9 n.a. d) Flammability resistance of upholstered parts in accordance with ISO 7176-16 (EN 1021-1/2) Yes. Helium & Helium Pro English Rev. M...
Page 27 510 - 380 450 - 320 460 - 330 470 - 340 480 - 350 123 mm x 45 mm 490 - 360 500 - 370 high 510 - 380 520 - 370 Rev. M English Helium & Helium Pro...
Page 28 510 - 380 520 - 390 high 530 - 400 540 - 410 500 - 370 510 - 380 6" (152.4 mm) 123 mm x 45 mm 540 - 410 high 550 - 420 Helium & Helium Pro English Rev. M...
Page 29: Torque
CAUTION: Some of the screws that are used during manufacture are fitted with threadlock, (blue dot on the thread) and can be undone and re-tightened up to three times before they must be replaced with new screws and threadlock. Alternatively, you can put Loctite™ 243 threadlock on the screws and re-fit them. Rev. M English Helium & Helium Pro...
Page 30 Helium & Helium Pro English Rev. M...
Page 31 Rev. M English Helium & Helium Pro...
Page 32 11 Daniel Street Email: info@sunrisemedical.fr Wetherill Park NSW 2164 www.sunrisemedical.fr Australia Ph: +61 2 9678 6600 E: enquiries@sunrisemedical.com.au www.SunriseMedical.com.au Sunrise Medical North American Headquarters 2842 Business Park Avenue Fresno, CA, 93727, USA (800) 333-4000 (800) 300-7502 www.SunriseMedical.com OM_Helium & Helium Pro_EU_EN_ Rev.M_2024-06-27...
