GTC TA110 Manual

General Technologies Corp.
1. SAFETY RULES
• This instrument is designed for indoor use at temperatures
between 32°F and 122°F (0°C to 50°C), and altitudes up to 6500
ft. (2,000 m), and 10% to 90% relative humidity.
• To ensure that the instrument is used safely, follow all safety and
operating instructions in this manual. If the instrument is not used
as described in this operation manual, the safety features of this
device may be impaired.
• To avoid personal injury and damage to the instrument use extreme
caution when working around hot or moving objects or machinery
(i.e.: radiators, exhaust manifolds, catalytic converters, drive belts,
fly wheels)
2. INTERNATIONAL SYMBOLS
! Important information
Refer to the User's Manual
CAUTION: Laser radiation
AVOID DIRECT EYE EXPOSURE
1mW Output at 630-670 nm
Class II Laser Product
3. TECHNICAL SPECIFICATIONS
3.1 General Specifications
Display:
Accuracy:
Operating temperature:
Response time:
Range selection:
Memory:
Distance to target:
Laser pointer:
Power source:
Battery life:
Power saving:
Dimensions:
Weight:
Accessories:
3.2 Measurement Specifications
•
Accuracies are ±(% of reading + number of least significant dig-
its) at 23°C ±5°C ambient temperature, with less than 75% RH.
Function Range
RPM 1 to 99,999 RPM
COUNT
1 to 99,999
(total revolutions)
5 digit 0.7" (16mm) LCD, max. of 99999
display, with measuring unit indicator
and Laser On Target indicator
±(0.05%+1 Digit)
32°F to 122°F (0°C to 50°C)
0.5 sec. (over 120 RPM)
Auto Ranging
Maximum, Minimum, and display
hold.
2" to 20" (50 mm to 500 mm)
Laser Diode, < 2mW output
wavelength 630-670 nm, Class II
9-volt battery type NEDA 1604,
IEC6F22 IEC 6LR61
Approx. 5 hours (w/alkaline batteries)
Automatic shut off after 10 seconds
3.13"x 1.88"x 7.0" (80 x 48 x 178 mm)
7.6 oz. (215 g) including battery
User's manual, soft pouch, 3 x 20 cm
reflective autoahesive tape and 9 V
alkaline battery
Acuracy Resolution
±(0.05%+1 Digit)
±(0.05%+1 Digit) 1 COUNT
4. OPERATION

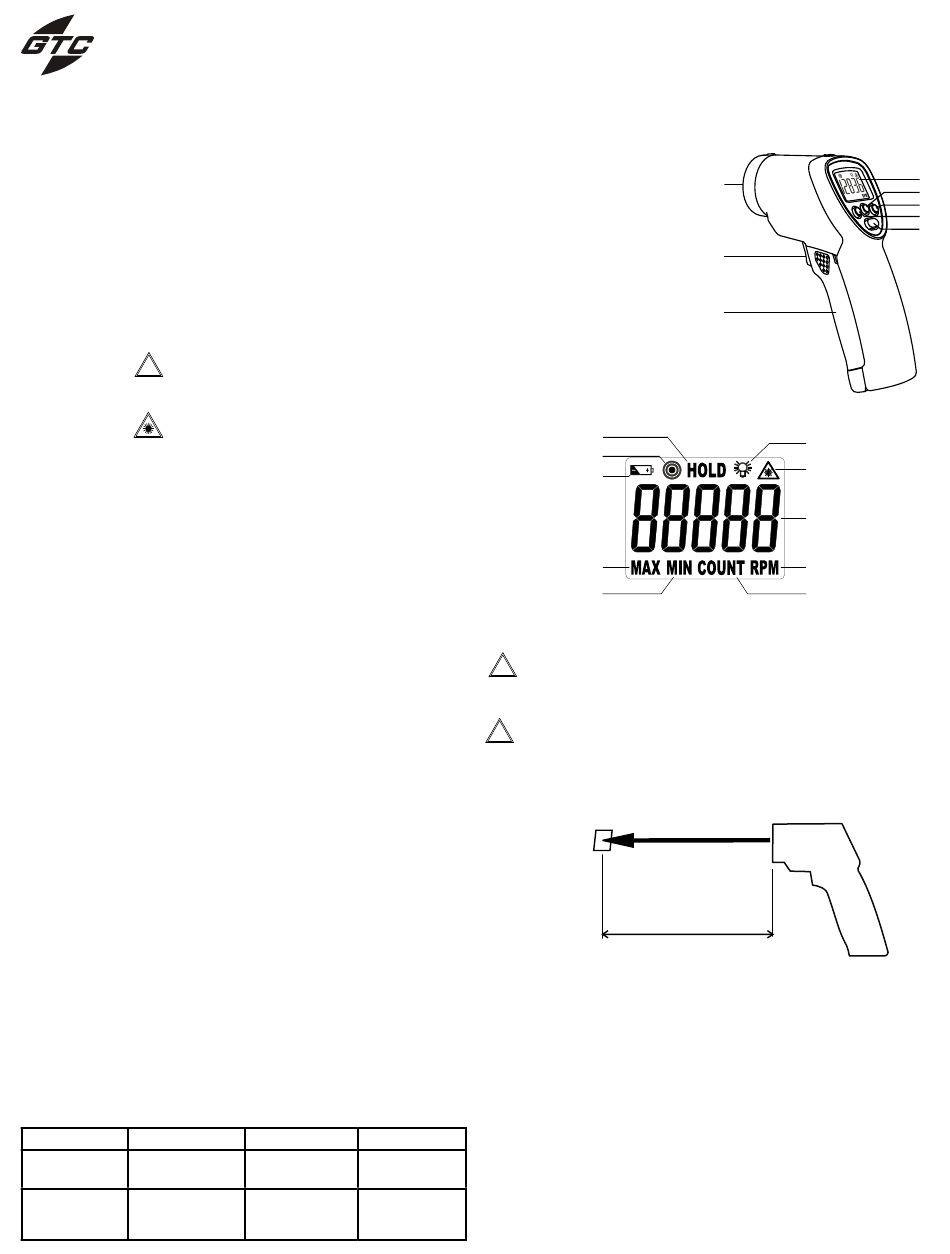

4.1 Instrument Description
1) Digital display
2) Display backlight button
3) Minimum button
4) Maximum button
5) RPM/Count button
6) Laser output
7) Measument trigger
8) Battery compartment cover
4.2 Display Description
HOLD indicator
On Target indicator
Depleted battery
warning
MAX indicator
MIN indicator
4.3 Measurement Procedures
CAUTION: Avoid contact with moving and/or
!
! CAUTION: Laser radiation is emitted
4.3.1 RPM Measurement
Reflective
tape
• Apply a reflective mark or a piece of reflective tape to the
rotating object under measurement.
• Press the "Measurement trigger" and verify that the "RPM
Indicator" is shown in the display. If the RPM function is not
selected, press the "RPM/COUNT button" once to select the
RPM function.
• Press the "Measurement trigger" and aim the laser beam at the
reflective mark or tape on the rotating object.
• Verify that the "On Target indicator" appears on the display,
1 RPM
indicating that the instrument is detecting the rotation of the
object and the reflective mark on it.
• Proceed to read the RPM on the digital display.
Laser Optical Tachometer
6
7
8
6
7
8
9
10
hot components, to prevent personal
injury or damage to the instrument.
Avoid direct eye contact
Laser beam
2 to 20"
5 to 50 cm
TA110
1
2
3
4
5
Backlight indicator
Laser output warning
Numeric reading
RPM indicator
COUNT indicator
5
