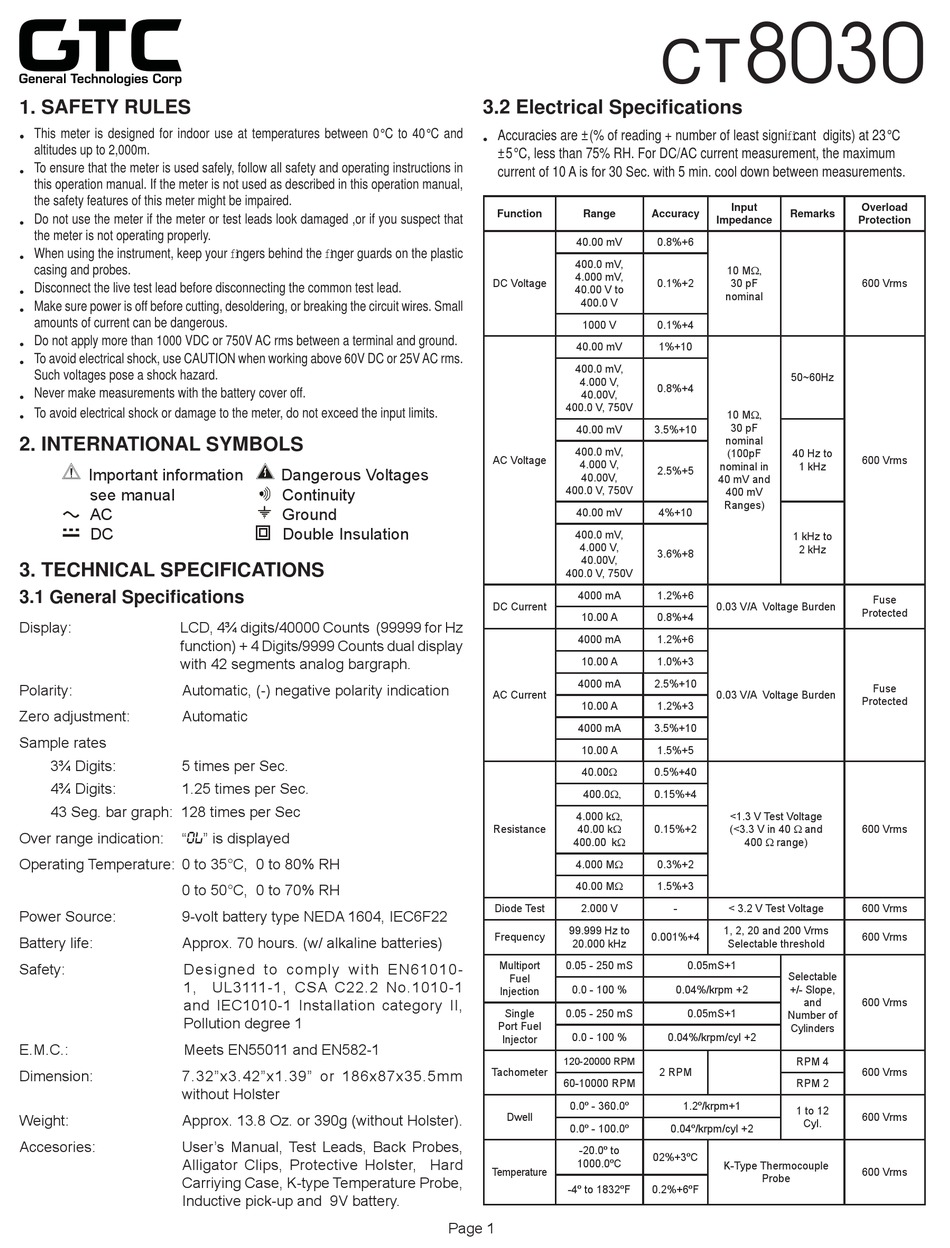

1. SAFE TY RULES
This meter is designed for indoor use at temperatures between 0°C to 40°C and
altitudes up to 2,000m.
• To ensure that the meter is used safely, follow all safety and operating instructions in
this operation manual. If the meter is not used as described in this operation manual,
the safety features of this meter might be impaired.
• Do not use the meter if the meter or test leads look damaged ,or if you suspect that
the meter is not operating properly.
• When using the instrument, keep your fi ngers behind the fi nger guards on the plastic
casing and probes.
• Disconnect the live test lead before disconnecting the common test lead.
• Make sure power is off before cutting, desoldering, or breaking the circuit wires. Small
amounts of current can be dangerous.
• Do not apply more than 1000 VDC or 750V AC rms between a terminal and ground.
• To avoid electrical shock, use CAUTION when working above 60V DC or 25V AC rms.
Such voltages pose a shock hazard.
• Never make measurements with the battery cover off.
• To avoid electrical shock or damage to the meter, do not exceed the input limits.

2. INTERNATIONAL SYMBOLS

Important information
see manual
AC
DC

3. TECHNICAL SPECIFICATIONS

3.1 General Specifi cations
Display:
LCD, 4¾ digits/40000 Counts (99999 for Hz
function) + 4 Digits/9999 Counts dual display
with 42 segments analog bargraph.
Polarity:
Automatic, (-) negative polarity indication
Zero adjustment:
Automatic
Sample rates
3¾ Digits:
5 times per Sec.
4¾ Digits:
1.25 times per Sec.
43 Seg. bar graph: 128 times per Sec
Over range indication:
"
OL
Operating Temperature: 0 to 35°C, 0 to 80% RH
0 to 50°C, 0 to 70% RH
Power Source:
9-volt battery type NEDA 1604, IEC6F22
Battery life:
Approx. 70 hours. (w/ alkaline batteries)
Safety:
Designed to comply with EN61010-
1, UL3111-1, CSA C22.2 No.1010-1
and IEC1010-1 Installation category II,
Pollution degree 1
E.M.C.:
Meets EN55011 and EN582-1
Dimension:
7.32"x3.42"x1.39" or 186x87x35.5mm
without Holster
Weight:
Approx. 13.8 Oz. or 390g (without Holster).
Accesories:
User's Manual, Test Leads, Back Probes,
Alligator Clips, Protective Holster, Hard
Carriying Case, K-type Temperature Probe,
Inductive pick-up and 9V battery.
Dangerous Voltages
Continuity
Ground
Double Insulation
" is displayed
3.2 Electrical Specifi cations
Accuracies are ±(% of reading + number of least signifi cant digits) at 23°C
±5°C, less than 75% RH. For DC/AC current measurement, the maximum
current of 10 A is for 30 Sec. with 5 min. cool down between measurements.
Function
Range
40.00 mV
400.0 mV,
4.000 mV,
DC Voltage
40.00 V to
400.0 V
1000 V
40.00 mV
400.0 mV,
4.000 V,
40.00V,
400.0 V, 750V
40.00 mV
400.0 mV,
AC Voltage
4.000 V,
40.00V,
400.0 V, 750V
40.00 mV
400.0 mV,
4.000 V,
40.00V,
400.0 V, 750V
4000 mA
DC Current
10.00 A
4000 mA
10.00 A
4000 mA
AC Current
10.00 A
4000 mA
10.00 A
40.00
400.0
4.000 k
Resistance
40.00 k
400.00k
4.000 M
40.00 M
Diode Test
2.000 V
99.999 Hz to
Frequency
20.000 kHz
Multiport
0.05 - 250 mS
Fuel
0.0 - 100 %
Injection
Single
0.05 - 250 mS
Port Fuel
0.0 - 100 %
Injector
120-20000 RPM
Tachometer
60-10000 RPM
0.0º - 360.0º
Dwell
0.0º - 100.0º
-20.0º to
1000.0ºC
Temperature
-4º to 1832ºF
Page 1
8030
CT
Input
Accuracy
Remarks
Impedance
0.8%+6
10 M 
0.1%+2
30 pF
nominal
0.1%+4
1%+10
50~60Hz
0.8%+4
10 M 
30 pF
3.5%+10
nominal
(100pF
40 Hz to
nominal in
1 kHz
2.5%+5
40 mV and
400 mV
Ranges)
4%+10
1 kHz to
2 kHz
3.6%+8
1.2%+6
0.03 V/A Voltage Burden
0.8%+4
1.2%+6
1.0%+3
2.5%+10
0.03 V/A Voltage Burden
1.2%+3
3.5%+10
1.5%+5
0.5%+40
0.15%+4
<1.3 V Test Voltage
(<3.3 V in 40  and
0.15%+2
400  range)
0.3%+2
1.5%+3
-
< 3.2 V Test Voltage
1, 2, 20 and 200 Vrms
0.001%+4
Selectable threshold
0.05mS+1
Selectable
0.04%/krpm +2
+/- Slope,
and
0.05mS+1
Number of
Cylinders
0.04%/krpm/cyl +2
RPM 4
2 RPM
RPM 2
1.2 º/krpm+1
1 to 12
Cyl.
0.04 º/krpm/cyl +2
02%+3 ºC
K-Type Thermocouple
Probe
0.2%+6 ºF
Overload
Protection
600 Vrms
600 Vrms
Fuse
Protected
Fuse
Protected
600 Vrms
600 Vrms
600 Vrms
600 Vrms
600 Vrms
600 Vrms
600 Vrms
