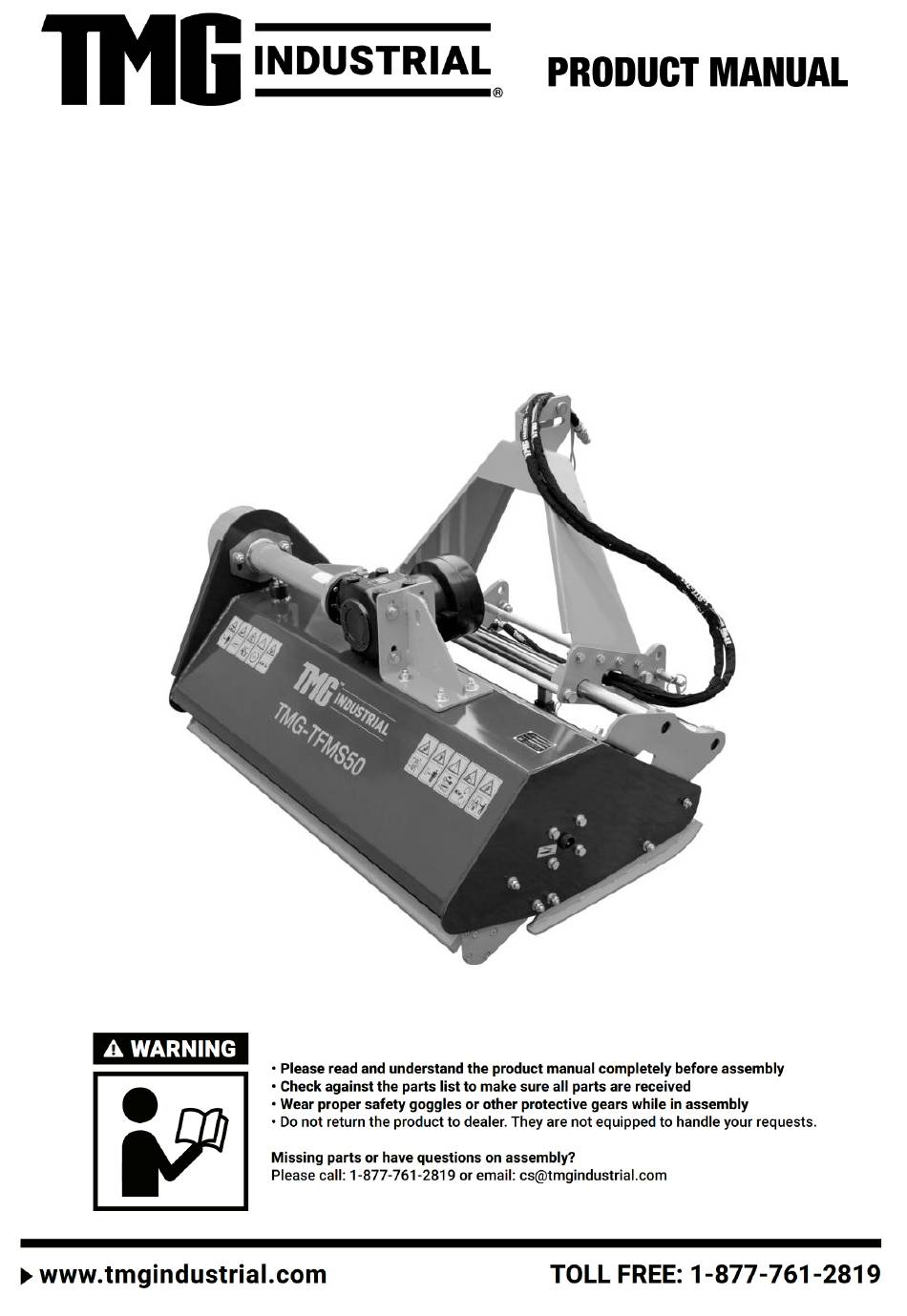

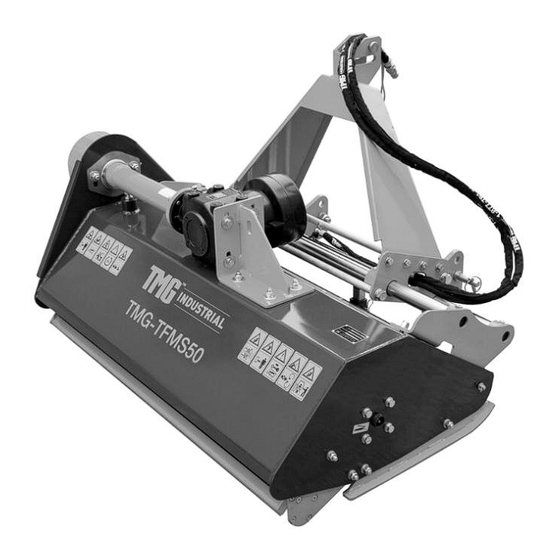

- Page 1 TMG-TFMS50/60/72 tttttTFM60/TFM68 v.2022.12.13 /TFM72TFM60/TFM6 TRACTOR SIDE-SHIFT 8/TFM72 FLAIL MOWER...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION .............................. 3 Safety always....................................3 Transport machinery safely ................................4 Safety Labels ....................................4 INTRODUCTION ....................................5 Using This Manual ................................... 5 Terminology ....................................5 Owner Assistance .................................... 5 SECTION 1: ASSEMBLY AND SET-UP .............................. 6 Tractor Requirements .................................. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment. -
Page 4: Transport Machinery Safely
Your Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. www.tmgindustrial.com... -
Page 5: Introduction
Introduction TMG welcomes you to the growing family of new product owners. This implement has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine. -
Page 6: Section 1: Assembly And Set-Up
Section 1: Assembly and Set-up Tractor Requirements This mower is designed with a 3-Point category 1 hitch. Tractor horse power rating should not exceed 50 PTO horse power. Packing Description Remove and check Remove the packing, check goods without defect and omission. FIGURE 1: The Mower and Accessory In Package Packing List The detailed packing list as the following table... - Page 7 The detailed description of hitch bracket weldment and fittings FIGURE 2: Hitch Bracket Weldment and Fittings Item Description Qty. Hitch bracket weldment Hitch pin -Upper Safety lock pin Locknut M12 Plain washer 12 Bolt M12x35 The detailed description of side shift sub-assembly and fittings FIGURE 3: Side shift Sub-Assembly and Fittings Item Description...
- Page 8 The detailed description of PTO protective cover and fittings FIGURE 4: PTO Protective Cover and Fittings Item Description Qty. PTO protective cover Plain washer 8 Spring washer 8 Bolt M8x20 The detailed description of raker sub-assembly FIGURE 5: Raker Sub-Assembly Item Description Qty.
-
Page 9: Installation Wizard
Installation Wizard The installation wizard will guide you to finish the final assembly of your new mower easily. Tool Required 1/2” Ratchet Wrench with 19mm sleeve 17-19 Spanner T type socket wrench 13mm Installation Step1: Installing Raker Sub-Assembly Remove the packaging of raker sub-assembly, pull out the R pin from the raker sub-assembly as well as the raker pin. Insert the raker weldment into the tube on the hood panel as well as the raker pin, and insert R pin into the hole on the raker pin. - Page 10 Note: If the gap shown in figure 9does not meet the installation requirements of hitch bracket weldment, just remove the oil inlet pipe and oil outlet pipe to release the pressure in the cylinder. That will make it easy to adjust the gap. Reinstall those oil pipes after hitch bracket weldment installation. FIGURE 8: Installing Hitch Bracket Weldment and Fittings Step4: Installing PTO protective cover and fittings Remove the packaging of PTO protective cover and fittings.
-
Page 11: Driveline Installation
FIGURE 9: Installing PTO protective cover and Fittings Tractor Hook-Up Be certain that tractor draw bar will not interfere. Move draw bar ahead or remove if required. Draw bar should also be checked for clearance when unit is being raised for the first time. Align lower link arms of tractor to hitch clevises on mower. -
Page 12: Mowing Instructions
When raising the mower to transport position, be sure that driveline does not contact tractor or mower. Adjust and set the tractor’s 3-point hitch lift height so that the driveline does not contact mower deck in the fully raised position. Be sure to reduce tractor ground speed when turning, leaving enough clearance so that the mower does not contact obstacles such as buildings, trees or fences. -
Page 13: Belt Tension
top center link to place the upper hitch pin vertically above or slightly behind the lower hitch pins. The mower should be run with the back 15 degrees lower than the front. The hitch can also be adjusted from side to side by turning the adjustment handle. Turn handle until you have achieved your desired location. -
Page 14: Storage
Reinstall belt guard and belt guard fender. Storage At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated on the mower and any of moving parts. Clean as necessary. -
Page 15: Section 6: Troubleshooting
This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product not designed. -
Page 16: Bolt Torque
Claims under this warranty must be made to the dealer which originally sold the product and all warranty adjustments must be made through such dealer. TMG reserves the right to make changes in materials or design of the product at any time without notices. -
Page 17: Part Breakdown List
Torque figures indicated above are valid for non-greased or non-oiled threads and heads otherwise specified. Therefore, do not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase torque values by 5%. Part Breakdown List TMG-TFMS50/TMG-TFMS60/TMG-TFMS72 Part Breakdown www.tmgindustrial.com 17 / 21 TOLL FREE: 1-877-761-2819... - Page 18 TMG-TFMS50/TMG-TFMS60/TMG-TFMS72 Part Breakdown List PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4030100002 TMG-TFMS50 4030100004 Hood panel TMG-TFMS60 4030100007 TMG-TFMS72 TFMS.07.00.000 Gearbox drive assy 4030100009 Skate - L 4030100010 Skate - R 7040100006 Plain washer 12 7010100005 Bolt M12x35 7030500006...
- Page 19 7010100006 Bolt M8x20 4300400002 Pressure lubricator M8x1 7070100003 Bearing seat 7010100004 Bolt M12x30 4100500002 Oil seal TC55x80x8 4020000022 Oil seal sleeve L=48 TMG-TFMS50, TMG-TFMS60 4020000020 Oil seal sleeve L=65 TMG-TFMS72 4030100034 TMG-TFMS50 4030100036 Blade axle TMG-TFMS60 4030100039 TMG-TFMS72 4100200007 Cover 30x30...
- Page 20 4080100001 Oil pipe L=1500 7010600001 Hollow bolt M12x1.25x32 7040600005 Combined sealing gasket 22 7020300001 HSCHS M8x25 4080100003 G1/2" adaptor (male) 7030400002 Nut M18x1.5 TMG-TFMS50 4020000040 Chain spacer TMG-TFMS60 TMG-TFMS72 TMG-TFMS50 4270100002 Guard chain TMG-TFMS60 TMG-TFMS72 4100200010 Round plug φ14 orange 7090200002 Circlip for hole φ60...
- Page 21 TMG-TFMS50/TMG-TFMS60/TMG-TFMS72 Gearbox Assembly Breakdown PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4040100002 50HP Gearbox 4020000005 Shaft sleeve 4020000024 TMG-TFMS50, TMG-TFMS60 Shaft 4020000006 TMG-TFMS72 7080100001 Key A 10x40 4030100008 Shaft tube 7040400006 Spring washer 12 7020100002 HSCS M12x35 Deep groove ball bearing 6207-...
