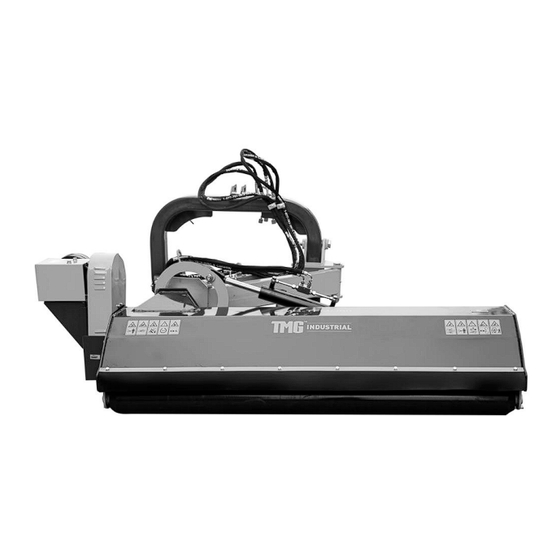

Tractor offset flail mower

Advertisement

Quick Links

TMG-TFMO80/90
tttttTFM60/TFM
v.2024.06.30
68/TFM72TFM60/
TRACTOR OFFSET FLAIL
TFM68/TFM72
MOWER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-TFMO80 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-TFMO80

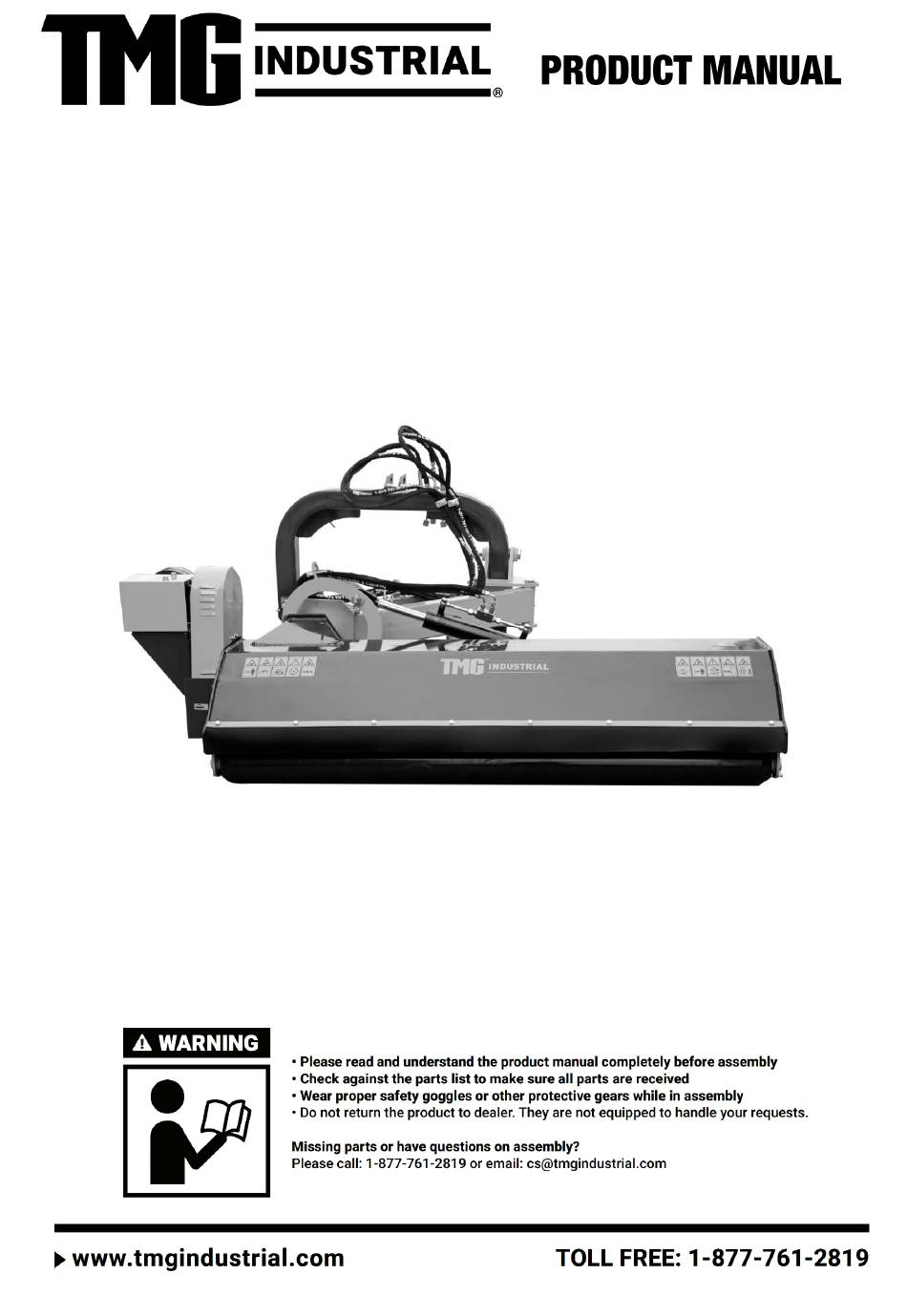

  • Page 1 TMG-TFMO80/90 tttttTFM60/TFM v.2024.06.30 68/TFM72TFM60/ TRACTOR OFFSET FLAIL TFM68/TFM72 MOWER...
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION ..................................3 Safety always....................................3 Transport machinery safely ................................4 Safety Labels ....................................4 INTRODUCTION ........................................5 Using This Manual ................................... 5 Terminology ....................................5 Owner Assistance .................................... 5 SECTION 1: ASSEMBLY AND SET-UP ..................................6 Tractor Requirements ..................................
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment.
  • Page 4: Transport Machinery Safely

    Your Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. www.tmgindustrial.com...
  • Page 5: Introduction

    INTRODUCTION TMG welcomes you to the growing family of new product owners. This implement has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine.
  • Page 6: Section 1: Assembly And Set-Up

    SECTION 1: ASSEMBLY AND SET-UP Tractor Requirements This mower is designed with a 3-Point category 2 hitch. Tractor horsepower rating should between 50-90 PTO horse power. Packing Description Remove and check Remove the packing, check goods without defect and omission. Figure 1-1: The Mower and Accessory in Package Packing List The detailed packing list of the mower and accessory as the following table.
  • Page 7 The detailed description of main body of the mower and fittings Figure 1-2: Main Body of The Mower and Fittings Item Description Qty. Main body of the mower Swing arm pin - longer Locknut M30x2 The detailed description of swing arms sub-assembly and fittings Figure 1-3: Swing Arms Sub-Assembly and Fittings Item Description...
  • Page 8 The detailed description of hitch tube weldment and fittings Figure 1-4: Hitch Tube Weldment and Fittings Item Description Qty. Hitch tube weldment Hitch pin - Lower Safety lock pin Small hanging weldment Oil pipe clamp Driveline shaft hook Hitch pin - Upper The detailed description of Raker sub-assembly Figure 1-5: Raker Sub-Assembly Item...
  • Page 9: Installation Wizard

    Installation Wizard The installation wizard will guide you to finish the final assembly of your new mower easily. Tool Required Air impact wrench with 46mm sleeve T type socket wrench 13mm T type socket wrench 18mm Torque Application Refer to bolt torque in Section 7 Appendix. Assembly Step1: Installing Swing Arms Sub-Assembly Remove the packaging of swing arms sub-assembly and fittings.
  • Page 10: Tractor Hook-Up

    Step3: Installing Raker Sub-Assembly Remove the packaging of raker sub-assembly. Insert raker weldment-longer into the tube on swing arm weldment-L as well as raker pin and insert R pin into the hole on raker pin. Insert raker weldment-shorter into the tube on hitch tube weldment as well as raker pin and insert R pin into the hole on raker pin.
  • Page 11: Driveline Installation

    Figure 1-9: Tractor Hook-up Driveline Installation Slide driveline end with extended safety cone over spline shaft of gearbox and secure with attaching device. Slide driveline over tractor’s spline PTO shaft and secure with locking device of driveline. Driveline should now be moved back and forth to ensure that it is secure on the PTO shaft of the tractor and mower gearbox.
  • Page 12: Mowing Instructions

    Select a safe ground travel speed when transporting from one area to another. When traveling on roadways, transport in such a way that faster moving vehicles may pass safely. When traveling over rough or hilly terrain, shift tractor to a lower gear. CAUTION When traveling on public roads, whether at night or during the day, use accessory lights and devices for adequate warning to operators of other vehicles.
  • Page 13: Belt Tension

    CAUTION Engage parking brake, shut off tractor, remove key and disengage PTO before making any height adjustments! Belt Tension CAUTION Belt drive system under spring tension; use care to avoid bodily harm! The Belt tension should be checked after the first 20 hours of use. And then every 40 hours of use. Tension on the belt can be adjusted with the belt tension bolt.
  • Page 14: Storage

    Storage At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated on the mower and any of moving parts. Clean as necessary.
  • Page 15: Section 5: Specifications & Capacities

    This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance www.tmgindustrial.com...
  • Page 16: Bolt Torque

    Claims under this warranty must be made to the dealer which originally sold the product and all warranty adjustments must be made through such dealer. TMG reserves the right to make changes in materials or design of the product at any time without notices.
  • Page 17: Part Breakdown List

    PART BREAKDOWN LIST TMG-TFMO80/TMG-TFMO90 Part Breakdown www.tmgindustrial.com 17/20 TOLL FREE: 1-877-761-2819 ►...
  • Page 18 TMG-TFMO80/TMG-TFMO90 Part Breakdown List PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4030100262 TMG-TFMO90 Hood panel 4030100061 TMG-TFMO80 4030100264 TMG-TFMO90 Roller 4030100069 TMG-TFMO80 4030100070 Roller mounting plate -L 4030100071 Roller mounting plate -R 7060300001 Self aligning ball bearing 1308 4100500005...
  • Page 19 4130000002 Swellable sleeve Z6-33x80 4130000003 Swellable sleeve Z6-40x80 4030100073 Pulley cover -L 4030100074 Pulley cover -R TMG-TFMO90 7040100005 Plain washer 10 TMG-TFMO80 7040400005 Spring washer 10 7010100018 Bolt M10×30 4030100075 Skate - L 4030100076 Skate - R 7010100005 Bolt M12×35...
  • Page 20 Extended pressure lubricator assy 4080100003 G1/2" adaptor (male) 4030100160 Pulley cover guard bracket 4010000058 Protective shell for gearbox TMG-TFMO90 4010000017 Guard plate W=72 TMG-TFMO80 TMG-TFMO90 4010000065 Guard plate W=30 TMG-TFMO80 TMG-TFMO90 4010000018 Guard plate with notch W=72 TMG-TFMO80 TMG-TFMO90 4010000066...
