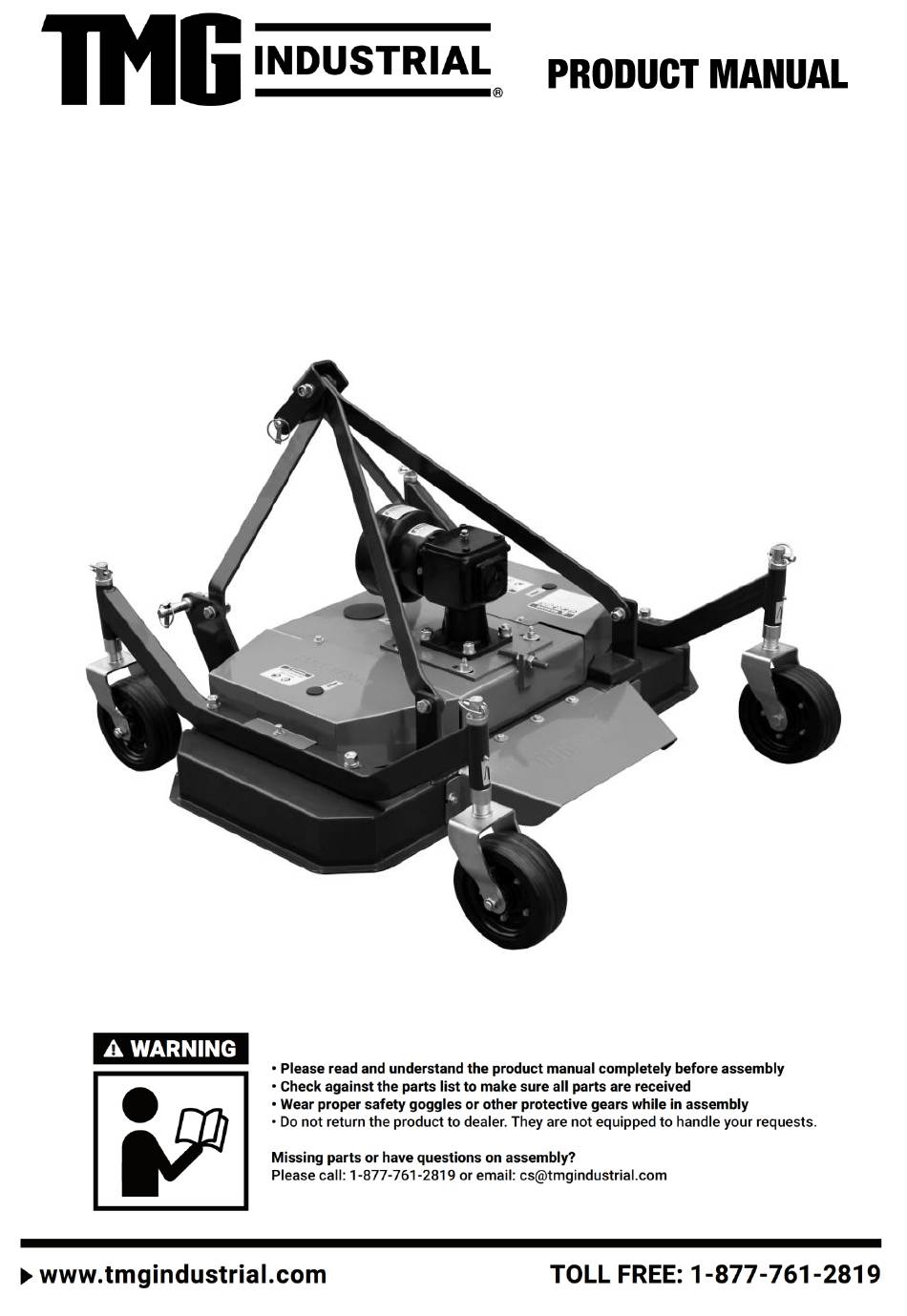

- Page 1 TMG-TFN48/60/72 tttttTFM60/TFM v.2022.12.05 68/TFM72TFM60/ 3PT FINISH MOWER TFM68/TFM72...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 Safety always ..................................3 Transport machinery safely ..............................4 Safety Labels................................... 4 INTRODUCTION ..................................5 Using This Manual ................................... 5 Terminology .................................... 5 Owner Assistance ..................................5 SECTION 1: ASSEMBLY AND SET-UP ............................6 Tractor Requirements ................................ -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment. -
Page 4: Transport Machinery Safely
Your Flail Mower comes equipped with all safety labels in place. They were designed to help you safely operate your implement. Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. www.tmgindustrial.com... -
Page 5: Introduction
The information contained within this manual was current at the time of printing. Some parts may change slightly to assure you of the best performance. To order a new Operator’s or Parts Manual contact your authorized dealer. Manuals can also be printed from the TMG Service & Support Center by your dealer. -
Page 6: Section 1: Assembly And Set-Up
Section 1: Assembly and Set-up Tractor Requirements This mower is designed with a 3-Point category 1 hitch. Tractor horsepower rating should not exceed 50 PTO horsepower. Packing Description Remove any loose parts or packaging from the crate. Check goods without damage and omission. FIGURE 1: Your New Mower As It Is Shipped To You FIGURE 2: The Mower and Accessory In The Crate Packing List The detailed packing list as the following table. - Page 7 The detailed description of wheel bracket assembly FIGURE 3: Wheel Bracket Assembly Item Description Qty. Wheel bracket sub-assembly Safety lock pin Spacer H=6 Damping spring Spacer H=32 Spacer H=12 The detailed description of discharge guide and fittings FIGURE 4: Discharge Guide and Fittings Item Description Qty.
- Page 8 The detailed description of short pivot bar and fittings FIGURE 5: Short Pivot Bar and Fittings Item Description Qty. Short pivot bar Locknut M16 Plain washer 16 Bolt M16x50 The detailed description of long pivot bar and fittings FIGURE 6: Long Pivot Bar and Fittings Item Description Qty.
- Page 9 The detailed description of Wheel Frame and fittings FIGURE 7: Wheel Frame and Fittings Item Description Qty. Bolt M16x95 Plain washer 16 Wheel frame Spring washer 16 Nut M16 Large plain washer 8 Spring washer 8 Bolt M8x16 The detailed description of Upper Lift Bracket and fittings FIGURE 8: Upper Lift Bracket and Fittings Item Description...
-
Page 10: Installation Wizard
Installation Wizard The installation wizard will guide you to finish the final assembly of your new mower easily. Tool Required 1/2” Ratchet Wrench with 13mm,16mm,24mm sleeves 17-19,22-24Spanner Side cutter or Industrial Scissors Safety Goggles and Gloves Installation Installation Cut all zip ties and disassemble shipping crate. Step1: Installing Long, Short Pivot Bar, Upper Lift bracket and Fittings Remove the packaging of long, short pivot bar, upper lift bracket and fittings Assemble all above parts on the mower deck body. - Page 11 FIGURE 10: Installing Wheel Frame and Fittings Step3: Installing wheel bracket assembly and Fittings Remove the packaging of wheel bracket assembly and fittings. Assemble wheel bracket assemblies on wheel frame as well as spacers. Through the combination of spacers with different height to get the mowing height you need. Parts:4pcs of wheel bracket assemblies.
-
Page 12: Tractor Hook-Up
FIGURE 12: Installing Discharge Guide and Fittings Tractor Hook-Up Be certain that tractor draw bar will not interfere. Move draw bar ahead or remove if required. Draw bar should also be checked for clearance when unit is being raised for the first time. Align lower link arms of tractor to hitch clevises on mower. -
Page 13: Mowing Instructions
When raising the mower to transport position, be sure that driveline does not contact tractor or mower. Adjust and set the tractor’s 3-point hitch lift height so that the driveline does not contact mower deck in the fully raised position. Be sure to reduce tractor ground speed when turning, leaving enough clearance so that the mower does not contact obstacles such as buildings, trees or fences. -
Page 14: 3-Point Hitch Adjustments
3-Point Hitch Adjustments The 3-point hitch system on this mower has been designed for front to back flotation when mowing on uneven terrain. Adjust tractor’s top center link to place the upper hitch pin vertically above or slightly behind the lower hitch pins. The mower should be run with the back 15 degrees lower than the front. -
Page 15: Storage
Do not overfill! IMPORTANT: Mower should be level when checking oil in gearbox! Driveline Profiles Type of Lubrication: Multi-purpose Grease Section 5: Specifications & Capacities Model TMG-TFN48 TMG-TFN60 TMG-TFN72 Cutting width (W1) 48''(1200mm) 60''(1500mm) 72''(1800mm) Dimensions (L*W*H) 49''x61''x29'' 55''x61''x29'' 73''x61''x29''... -
Page 16: Section 6: Troubleshooting
This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product not designed. -
Page 17: Bolt Torque
This warranty shall not be interpreted to render TMG liable for damages of any kind, direct, consequential, or contingent to property. Furthermore, TMG shall not be liable for damages resulting from any cause beyond its reasonable control. This warranty does not extend to loss of crops, any expense or loss for labor, supplies, rental machinery or for any other reason. - Page 18 TMG-TFN48/TMG-TFN60/TMG-TFN72 Part Breakdown TMG-TFN48/TMG-TFN60/TMG-TFN72 Part Breakdown List PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4030200024 TMG-TFN48 4030200025 Mower deck weldment TMG-TFN60 4030200026 TMG-TFN72 FM120.00.00.000-1 TMG-TFN48 Wheel beam assembly ATFM150.00.00.000-2 TMG-TFN60,TMG-TFN72 7040100008 Plain washer 16 7040400008 Spring washer 16 7030100008...
- Page 19 7040400005 Spring washer 10 7030100005 Nut M10 7010100019 Bolt M10×35 4290200009 TMG-TFN48 4290200010 Blade TMG-TFN60 4290200011 TMG-TFN72 7040400011 Spring washer 24 7030400003 Hex. Nut M24x2 - L thread 7040100006 Plain washer 12×2.5 7030500006 Locknut M12 7010100004 Bolt M12×30 4010000139 TMG-TFN48...
- Page 20 Locknut M16 7010200010 Bolt M16x110 4020000017 Hitch pin - upper 4010000076 TMG-TFN48 4010000070 Discharge guide TMG-TFN60 4010000148 TMG-TFN72 4010000144 Hitch connecting bracket 7040100013 Plain washer 18x34x3 7030800002 Locknut M18x1.5 TMG-TFN48/TMG-TFN60/TMG-TFN72 Gearbox Assembly Breakdown www.tmgindustrial.com 20 / 22 TOLL FREE: 1-877-761-2819...
- Page 21 Bolt M12x40 4100200027 Rubber plug φ91.3 7040100004 Plain washer 8 7040400004 Spring washer 8 7010100006 Bolt M8x20 4100200006 PTO dust cover TMG-TFN48/TMG-TFN60/TMG-TFN72 Spindle Assembly Breakdown PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4020000087 Bearing seat 4020000088 Spindle 7060100007 Bearing 6206 RZ 7090100003 Circlip for shaft φ30...
- Page 22 TMG-TFN48/TMG-TFN60/TMG-TFN72 Wheel beam Assembly Breakdown PART NO. REF. NO. PART DESCRIPTION QTY. REMARK TMG-TFN60, TMG- 4030200004 TFN72 Wheel beam weldment 4030200028 TMG-TFN48 4030200005 Yoke weldment 4300400002 Pressure lubricator M8x1 4020000081 Spacer H=6 4020000082 Spacer H=12 4020000083 Spacer H=32 4300100004 Safety lock pin φ11x50...
