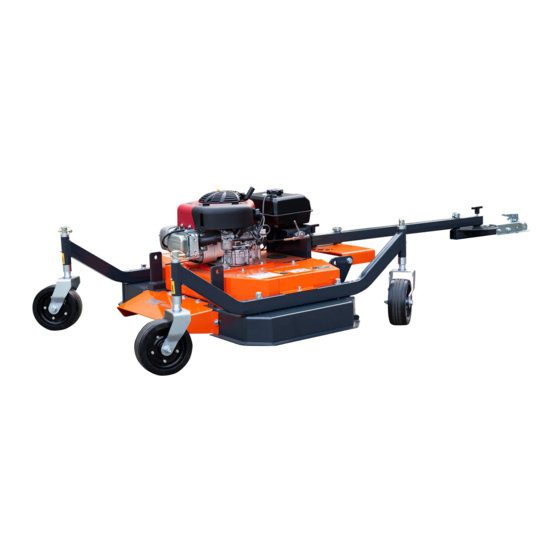

ATV Tow-behind Finish Mower
WARNING
www.tmgindustrial.com (USA & Canada)
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your requests
PRODUCT MANUAL
Model: TMG-AFN48/AFN60
Toll Free: 1-877-761-2819
Advertisement
Table of Contents
Related Manuals for TMG TMG-AFN48
Summary of Contents for TMG TMG-AFN48
- Page 1 PRODUCT MANUAL ATV Tow-behind Finish Mower Model: TMG-AFN48/AFN60 Please read the product manual completely before assembly WARNING Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Please call: 1-877-761-2819 or email: cs@tmgindustrial.com...
-
Page 2: Table Of Contents
Warnings and Safety Precautions......... . 2 Owner’s Responsibility . -
Page 3: Warnings And Safety Precautions
WARNINGS AND SAFETY PRECAUTIONS Owner’s Responsibility Accurate assembly and safe and effective use of the mower is the owner’s responsibility. • Read and follow all safety instructions. • Carefully follow all assembly instructions. • Maintain the machine according to directions and schedule included in this operator’s manual. •... -
Page 4: Safety Decals And Warnings
• Watch for traffic when operating near, or when crossing roads. • Stop the engine (motor) whenever you leave the equipment, before cleaning, repairing or inspecting the unit, be sure the mower and all moving parts have stopped. Let the engine cool, disconnect the starting wire harness plug and remove the ignition key. -
Page 5: Operation
information provided to order a replacement label. CONTROL AND OPERATING SYMBOLS Pictured below are control and operating symbols on the unit or in this manual. Before you operate your unit, learn and understand the purpose for each symbol. Decal Mower Warnings Decal Throttle And Blade Speed Control OPERATION How to Start the Mower... -
Page 6: Tow Vehicle Recommendations
• Frequently clean the underside of the mower to remove any grass build up. See the "Maintenance, Service and Storage" section for details. • Do not mow on excessively steep slopes. Never use the mower on slopes greater than 20 degrees using any type of tow vehicle. -
Page 7: Storage
Storage At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated on the mower and any of moving parts. 1. -
Page 8: Bolt Torque
Defective ignition Inspect ignition and replace if damaged or defective Inspect the fuse in the rubber protective box of the Battery has no charge charging wire and replace if damaged. Charge and replace if dead, damaged, or defective Engine runs poorly Bad spark plug Replace spark plug Dirty air filter... - Page 9 5/8” 3/4” 7/8” METRIC TORQUE SPECIFICATIONS Bolt Bolt Diameter Torque 10.9 lb-ft lb-ft 1050 1495 1103 2100 1550 2600 1917 3675 2710 Torque figures indicated above are valid for non-greased or non-oiled threads and heads otherwise specified. Therefore, do not grease or oil bolts or cap screws unless otherwise specified in this manual.
-
Page 10: Illustrated Parts Breakdown And Parts List
Illustrated Parts Breakdown and Parts List A. ATV Finish Mower Part No. Ref. No. Part Description Remark 4030200001 TMG-AFN48 Mower deck weldment 4030200002 TMG-AFN60 Wheel frame mount assy. See page19 7040100008 Plain washer 16 7040400008 Spring washer 16 7030100008 Hex. Nut M16... - Page 11 7010100013 Bolt M10x25 Spindle assy. See page 21 7040400005 Spring washer 10 7030100005 Hex. Nut M10 7010100019 Bolt M10x35 4290200009 TMG-AFN48 blade 4290200010 TMG-AFN60 7040100007 Plain washer 14 7040400007 Spring washer 14 Bolt M14x30 – L thread 7010100035 4050000011 Single sheave pulley...
- Page 12 B. Wheel Frame Mount Assembly Part No. Ref. No. Part Description Remark 4030200004 Wheel frame weldment 4030200005 Wheel bracket 4300400002 Grease nipple M8 4020000081 Spacer H=6 4020000082 Spacer H=12 4020000083 Spacer H=32 4300100004 Safety lock pin 4320100002 Damping spring 4100700001 Wheel assy.
- Page 13 C. Tow Bar assembly Part No. Ref. No. Part Description Remark 4030200007 Tow bar weldment 4020000085 Tongue latch pin 4320100003 Compression spring 7100200001 Spring straight pin 4100300002 Spacer H=12 D. Spindle Assembly Part No. Ref. No. Part Description Remark 4020000087 Bearing seat 4020000088 Spindle...
- Page 14 E. Engine Mount Group Part No. Ref. No. Part Description Remark 4030200009 Engine mount bracket 4020000089 Driven pulley sleeve 4050000013 Driven pulley 7040800001 Extra-large plain washer 10 7010300006 Bolt 7/16-20UNF 2A 4330100001 B & S EPA Engine 344CC 4030200010 Position adjusting plate 7040100004 Plain washer 8 7040400004...
- Page 15 F. Battery Box Group Part No. Ref. No. Part Description Remark Battery box - bottom 4100200022 Batter box - top 4030200011 Post battery tie down 4280400001 Battery 4010000075 Plate battery tie down 7030500016 Locknut M8 Phillips tapping screw ST4.8x16 Insulating waterproof sheath φ25 4120600009 4120800001 Solenoid wire mount...
