Summary of Contents for TMG TMG-EFM32

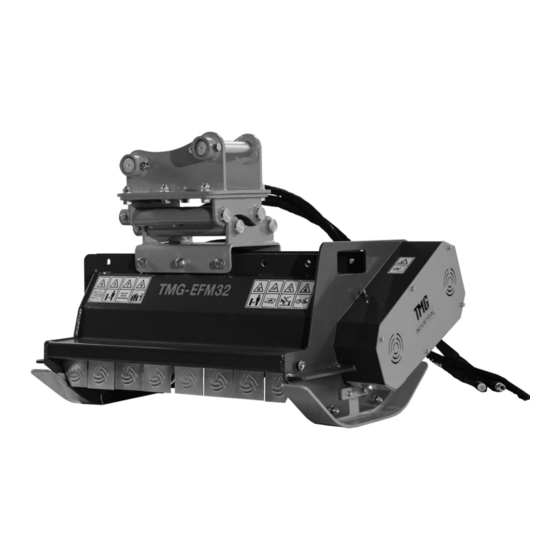

- Page 1 TMG-EFM32/40/48 PRODUCT MANUAL v.2023.02.24 EXCAVATOR BRUSH FLAIL MOWER...
-
Page 2: Table Of Contents
SPECIFICATION ..................................11 & C ..............................11 PECIFICATIONS APACITIES PARTS LIST ..................................12 .......................... 12 XCAVATOR RUSH LAIL OWER SSEMBLY TMG-EFM32 P ............................... 12 ARTS TMG-EFM40 P ............................... 14 ARTS TMG-EFM48 P ............................... 16 ARTS www.tmgindustrial.com 2 / 17 TOLL FREE: 1-877-761-2819... -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Excavator Brush Flail Mower. YOU must ensure that you and anyone else who is going to use, maintain or work around the Excavator Brush Flail Mower be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Excavator and machine manuals. -
Page 6: Safety Decals
Safety Decals Preparation Never use the machine until you have read and completely understand this manual, the Excavator tractor Operator's Manual and each of the Safety Messages found on the safety signs on the Excavator tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Maintenance Safety
Maintenance Safety Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. Keep service area clean and dry. Be sure electrical outlets and tools are properly grounded. Use adequate light for the job at hand. Make sure there is plenty of ventilation. -
Page 8: Transport Safety
By following the using instructions in conjunction with a good maintenance program, your Excavator Brush Flail Mower will provide many years of trouble- free service. OPERATION Mounting coupler TMG-EFM32 TMG-EFM40 & TMG-EFM48 www.tmgindustrial.com 8 / 17 TOLL FREE: 1-877-761-2819... -
Page 9: Maintenance
High Attention! A case drain line (3rd hose line--3/8'') is required to be added prior to use of this attachment. The case drain line will relieve the excess pressure and drain it back to your return line, then into the reservoir. Without a case drain line installed properly, that extra pressure will blow a seal or damage your hydraulic line. -
Page 10: Hydraulic System
Inspect the implement for any loose or worn parts that may need to be replaced prior to the next season. Visually inspect the blades. Replace, if necessary. Clean, sand & repaint any area that looks worn or scratched to prevent further rusting. Use an equipment-paint found at your local hardware store or building center. -
Page 11: Specification
Hydraulic motor with oil-in, oil-out, drain port Self-levelling Kit • • Adjustable skid shoes Belt drive transmission • High performance cutter drum • • Mounting coupler included TMG-EFM32 TMG-EFM40 TMG-EFM48 Excavator 3-5-ton 6-8-ton 6-8-ton Max Cutting capacity: 4” 4” 4”... -
Page 12: Parts List
PARTS LIST Excavator Brush Flail Mower Assembly TMG-EFM32 Parts List Part No. Ref. Part Description EXF800.2TMG Hook weldment GB/T 5783 Bolt M16*40 GB/T 97.1 Washer 16 GB/T 889.1 Locking Nut M16 EXF800.18 GB/T 5782 Bolt M6*100 GB/T 5782 Bolt M12*70 EXF800.3... - Page 13 EXF1200.5 Connection weldment 05 EXF800.20 Shaft bar GB/T 97.1 Washer 12 EF100.00.300 R Pin 3.2 EF100.00.122A Fender EF100.00.122 Wide fender EXF800.1 Mower deck EXF1200.14 Belt cover plate GB/T 5783 Bolt M8*20 EXF1200.10 Cover weldment EXF1200.6 Skid shoes weldment GB/T 5783 Bolt M12*30 JB/T 7940.1 Grease nipple M6...
-
Page 14: Tmg-Efm40 Parts List
Big pulley GB/T 11544 Belt SPB1016 EXF1200.11 Belt cover GB/T 889.1 Locking Nut M12 GE15LR1/2ED Connector M22*1.5-G1/2 GE08LR3/8ED Connector M14*1.5-G3/8 TMG-EFM40 Parts List Part No. Ref. Part Description EXF1200.2TMG Hook weldment GB/T 5783 Bolt M16*40 GB/T 97.1 Washer 16 GB/T 889.1 Locking Nut M16 EXF1200.18... - Page 15 GB/T 5783 Bolt M8*20 EXF1200.10 Cover weldment EXF1200.6 Skid shoes weldment GB/T 5783 Bolt M12*30 JB/T 7940.1 Grease nipple M6 GB/T 5783 Bolt M12*40 EXF1200.15 Bearing cover EXF1200.12 Motor protection plate EXF1200.13 Up belt cover EFGC155.27 Small pulley JB/T 11544 Sleeve REACH 04 GB/T 7810 Bearing UCFU207...
-
Page 16: Tmg-Efm48 Parts List
Big pulley GB/T 11544 Belt SPB1016 EXF1200.11 Belt cover GB/T 889.1 Locking Nut M12 GE18LR3/4ED Connector M27*1.5-G3/4 GE08LR3/8ED Connector M14*1.5-G3/8 TMG-EFM48 Parts List Part No. Ref. Part Description EXF1200.2TMG Hook weldment GB/T 5783 Bolt M16*40 GB/T 97.1 Washer 16 GB/T 889.1 Locking Nut M16 EXF1200.18... - Page 17 EXF1200.13 Up belt cover EFGC155.27 Small pulley JB/T 11544 Sleeve REACH 04 GB/T 7810 Bearing UCFU207 EXF1200.9 Protect cover GB/T 70.1 Bolt M8*25 EXF1200B.8 Blade axle weldment EFGC175.32 Hammer GB/T 889.2 Locking Nut M16*1.5 GB/T 5785 Bolt M16*1.5*85 EXF1200.21.2TMG Oil pipe 01 M27*1.5 NPT1/2 Length:2000mm EXF1200.21.3TMG Connection NPT 3/8 EXF1200.21.4TMG...
Need help?
Do you have a question about the TMG-EFM32 and is the answer not in the manual?
Questions and answers
Trouble shoot. Has pressure on the line but the head won’t turn. Emf32
If there is pressure on the line but the TMG EFM32 head won’t turn, follow these troubleshooting steps:
1. Relieve Hydraulic Pressure:
- Turn the key on without starting the engine.
- Lower the arm and activate the hydraulic controls.
- Roll the thumbs to relieve pressure in the system.
2. Check Hydraulic Connections:
- Ensure all hydraulic lines are properly connected.
- Verify no leaks or blockages are present.
3. Inspect the Case Drain Line:
- Make sure the 3/8 inch case drain line is not clogged or restricted, as it relieves excess pressure from the pump.
4. Check Belt Drive Transmission:
- Inspect the belt drive for damage or disconnection that could prevent power from reaching the flail head.
5. Examine Flail Knives:
- Ensure the 14 flail knives are not jammed or obstructed.
6. Verify Hydraulic Motor Function:
- Confirm the 2900 PSI motor is operating correctly and receiving hydraulic flow.
If these steps do not resolve the issue, further inspection by a qualified technician may be needed.
This answer is automatically generated
