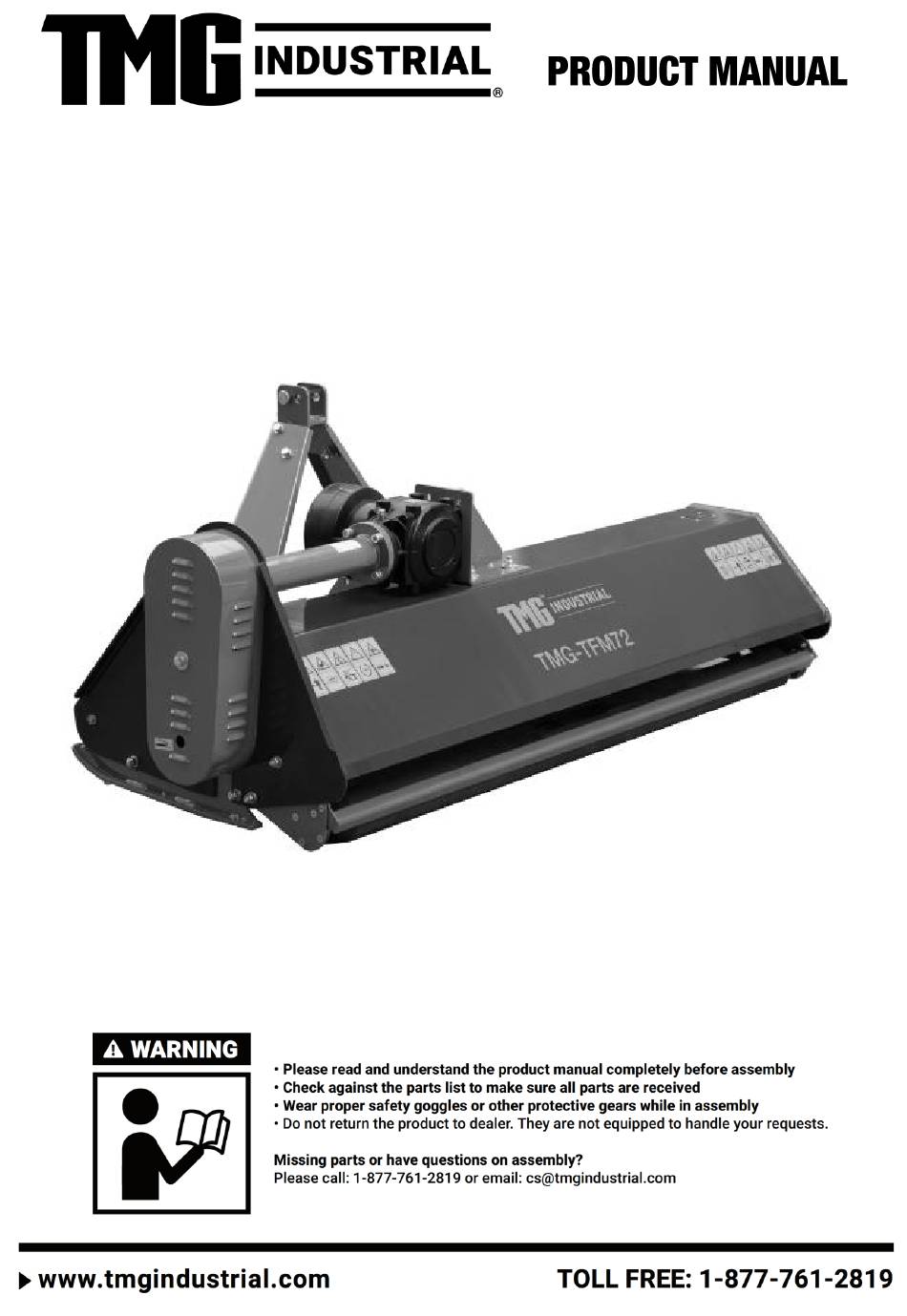

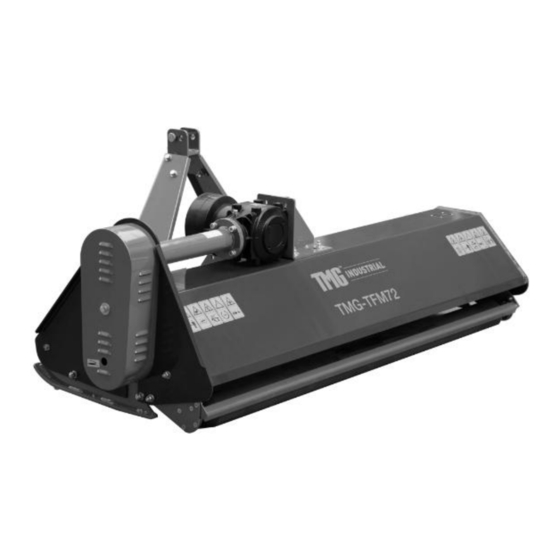

- Page 1 TMG-TFM60/68/72 tttttTFM60/TFM6 v.2022.11.29 8/TFM72TFM60/TF M68/TFM72 TRACTOR FLAIL MOWER...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ..................................2 Safety always ..................................3 Transport machinery safely ..............................3 Safety Labels ..................................4 INTRODUCTION ........................................5 Using This Manual ................................5 Terminology ..................................5 Owner Assistance................................. 5 SECTION 1: ASSEMBLY AND SET-UP ..................................5 Tractor Requirements ................................ -
Page 3: Safety Always
Safety always Thoroughly read and understand the instructions given in this manual before operation. Refer to the “Safety Decal”, read all instructions noted on them. Do not allow anyone to operate this equipment who has not fully read and comprehended this manual and who has not been properly trained in the safe operation of the equipment. -
Page 4: Safety Labels
Read and follow their directions. Keep all safety labels clean and legible. Replace all damaged or missing labels. To order new labels go to your nearest TMG dealer or visit our dealer locator at TMG.com. Some new equipment installed during repair requires safety labels to be affixed to the replaced component as specified by TMG. -
Page 5: Introduction
Introduction TMG welcomes you to the growing family of new product owners. This implement has been designed with care and built by skilled workers using quality materials. Proper assembly, maintenance, and safe operating practices will help you get years of satisfactory use from the machine. -
Page 6: Tractor Requirements
Tractor Requirements This mower is designed with a 3-Point category 1 hitch. Tractor horsepower rating should not exceed 50 PTO horse power. Packing Description Remove and check Remove the packing, check goods without defect and omission. Figure 1-1: The Mower and Accessory in Package Packing List The detailed packing list of the mower and accessory as the following table. -
Page 7: Installation Wizard
Raker pin R pin Plastic plug The detailed description of R&L hitch plates and fittings Figure 1-3: R&L Hitch Plates and Fittings Item Description Qty. Hitch plate -R Hitch plate -L Locknut M12 Plain washer 12 Bolt M12x40 Driveline shaft hook Hook bracket The detailed description of hitch bracket weldment and fittings Figure 1-4: Hitch Bracket Weldment–Upper and Fittings... - Page 8 Tool Required 1/2” Ratchet Wrench with 19mm sleeve 17-19 Spanner Installation Step1: Installing Raker Sub-Assembly Remove the packaging of raker sub-assembly, pull out the R pin from the raker sub-assembly as well as the raker pin. Insert the raker weldment into the tube on the hood panel as well as the raker pin, and insert R pin into the hole on the raker pin. Figure1-5: Installing Aker Sub-Assembly Step2: Installing R&L Hitch Plates and Fittings Remove the packaging of R&L hitch plates and fittings.
-
Page 9: Tractor Hook-Up
WARNING Fill the item 1 with proper amount of gear oil in figure 8 before operation. Figure1-8: Installing Hitch Bracket Weldment-Upper and Fittings Tractor Hook-Up Be certain that tractor draw bar will not interfere. Move draw bar ahead or remove if required. Draw bar should also be checked for clearance when unit is being raised for the first time. -
Page 10: Transporting
Transporting NOTE: Always disengage PTO before raising mower to transport position. When raising the mower to transport position, be sure that driveline does not contact tractor or mower. Adjust and set the tractor’s 3-point hitch lift height so that the driveline does not contact mower deck in the fully raised position. Be sure to reduce tractor ground speed when turning, leaving enough clearance so that the mower does not contact obstacles such as buildings, trees or fences. -
Page 11: 3-Point Hitch Adjustments
Lift or lower both sides of roller in equal measurements. Replace bolts and re-tighten. 3-Point Hitch Adjustments The 3-point hitch system on this mower has been designed for front to back flotation when mowing on uneven terrain. Adjust tractor’s top center link to place the upper hitch pin vertically above or slightly behind the lower hitch pins. The mower should be run with the back 15 degrees lower than the front. -
Page 12: Storage
Add oil until it flows from side plug hole. Do not overfill! IMPORTANT: Mower should be level when checking oil in gearbox! Driveline Profiles Type of Lubrication: Multi-purpose Grease Section 5: Specifications & Capacities TMG-TFM Series Mower Specifications MODEL TMG-TFM60 TMG-TFM68 TMG-TFM72 CUTTING WIDTH... -
Page 13: Section 6: Troubleshooting
This warranty does not apply to any part or product which in TMG’s judgment shall have been misused or damaged by accident or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or which has been used for a purpose for which the product not designed. -
Page 14: Bolt Torque
This warranty shall not be interpreted to render TMG liable for damages of any kind, direct, consequential, or contingent to property. Furthermore, TMG shall not be liable for damages resulting from any cause beyond its reasonable control. This warranty does not extend to loss of crops, any expense or loss for labor, supplies, rental machinery or for any other reason. -
Page 15: Part Breakdown List
Part Breakdown List TMG-TFM60/TMG-TFM68/TMG-TFM72 Part Breakdown www.tmgindustrial.com 15 / 18 TOLL FREE: 1-877-761-2819... - Page 16 TMG-TFM60/ TFM68/ TFM72 Part Breakdown List PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4030100004 TMG-TFM60 4030100006 Hood panel TMG-TFM68 4030100007 TMG-TFM72 EFGC155.07.00.000 TMG-TFM60 Gearbox drive assembly EFGC175.07.00.000 TMG-TFM68, TMG-TFM72 4030100009 Skate - L 4030100010 Skate - R 7040100006 Plain washer 12...
- Page 17 4030100025 TMG-TFM60 4030100027 Mud shield TMG-TFM68 4030100028 TMG-TFM72 7040100004 Plain washer 8 7030500016 Locknut M8 4020000012 TMG-TFM60 4020000014 Guard chain rod TMG-TFM68 4020000015 TMG-TFM72 7040100005 Plain washer 10 7100100001 Cotter pin φ3x25 4030100029 Hitch bracket - lower 4010000020 Splint 4020000018...
- Page 18 PHSCS M4x10 TMG-TFM60 4020000040 Chain spacer TMG-TFM68 TMG-TFM72 TMG-TFM60 4270100002 Guard chain TMG-TFM68 TMG-TFM72 4100200010 Round plug φ14 orange TMG-TFM60/TMG-TFM68/TMG-TFM72 Gearbox Assembly Breakdown PART NO. REF. NO. PART DESCRIPTION QTY. REMARK 4040100002 50HP Gearbox 4020000005 Shaft sleeve 4020000024 TMG-TFM60 Shaft...
