Furniture of America CM3823SC-2PK Assembly Instructions

Download this manual

Assembly Instructions

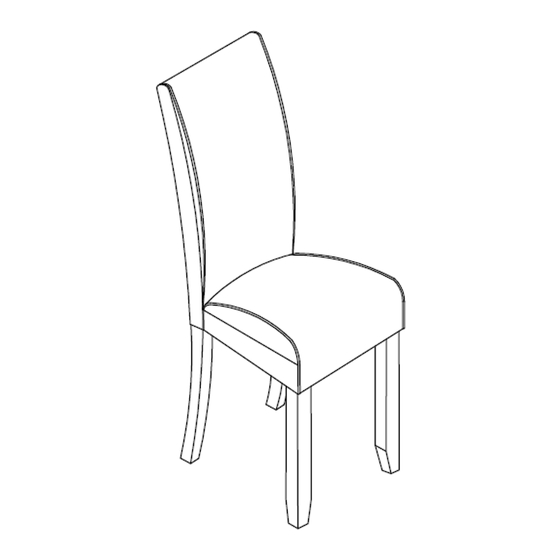

CM3823SC-2PK

ASSEMBLY RATING

Tools Required for Assembly:

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

assembling a specific product (with 1 being

(Included)

easy and 5 being difficult). For some

products, two persons are recommended.

DIFFICULT

EASY

Page 1 of 5

Rev.15-11-10

Need help?

Do you have a question about the CM3823SC-2PK and is the answer not in the manual?

Page 1 Assembly Instructions CM3823SC-2PK ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult). For some products, two persons are recommended.
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc x 2 #A x 4 pcs x 2 Backrest w/Legs Bolt 5/16”x3-1/4”...
Page 4 #B x 2 pcs Place the backrest with legs #D x 2 pcs (#1) on a protected surface. #E x 2 pcs Insert the wood dowel (#G) into #G x 1 pc the center hole of the backrest with legs (#1). Align the seat (#2) with the Turn right (clockwise) to tighten wood dowel (#G) and the pre-...
Page 5 #C x 4 pcs #D x 4 pcs #E x 4 pcs Align the two front legs (#3) with the pre-drilled holes of the seat (#2). II. Prepare 4 bolt assemblies by inserting FIRST the lock washer (#D) onto the bolt (#C) and then the flat washer (#E) onto the SAME bolt (#C), in that order.
