VERSION # 21-04-30
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
1 / 8
MODEL #
CM-BR1855-24/29-2PK
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM-BR1855-24-2PK
Summary of Contents for Furniture of America CM-BR1855-24-2PK
- Page 1 MODEL # CM-BR1855-24/29-2PK Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 2 / 8...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...

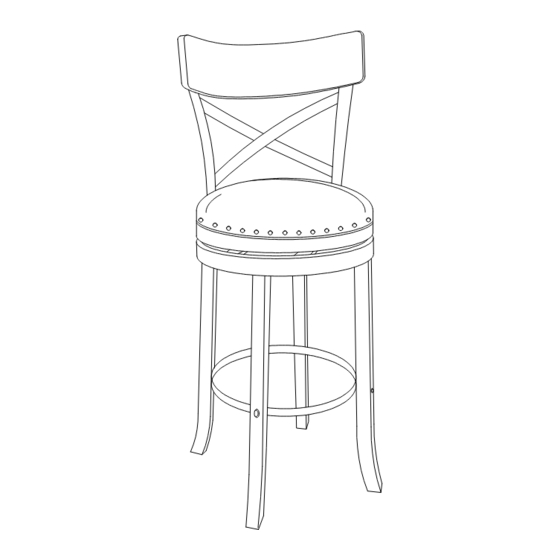

- Page 5 360 Degree Swivel Barstool CM-BR1855-24/29-2PK PARTS 1pc x2 1pc x2 1pc x2 1pc x2 Stool Back Seat Base Support Ring With Metal Footrest Swivel Plate 4pcs x2 1pc x2 Cushion Seat Stool Leg HARDWARE 8pcs x2 12pcs x2 6pcs x2 8pcs x2 M6 Spring JCBC Bolt...
- Page 6 ASSEMBLY INSTRUCTIONS Align seat base (#2) to the stool back (#1), then secure by using bolts (#A). Part #1 x 1pc Part #2 x 1pc Hardware #A x 6pcs Align cushion (#5) to the seat base (#2), then secure by using screws Part #5 x 1pc (#F).
- Page 7 ASSEMBLY INSTRUCTIONS Align legs (#6) with footrest (#4) to the swivel plate (#3). Secure legs (#6) onto footrest (#4) by using bolts (#B), then secure legs (#6) to swivel plate (#3) by using bolts (#C) with washers (#D,E). Part #3 x 1pc Part #4 x 1pc Part #6 x 4pcs Hardware #B x 4pcs...
- Page 8 ASSEMBLY INSTRUCTIONS 8 / 8...
