CM3970AC-2PK
CM3970GL-AC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3970AC-2PK
Summary of Contents for Furniture of America CM3970AC-2PK

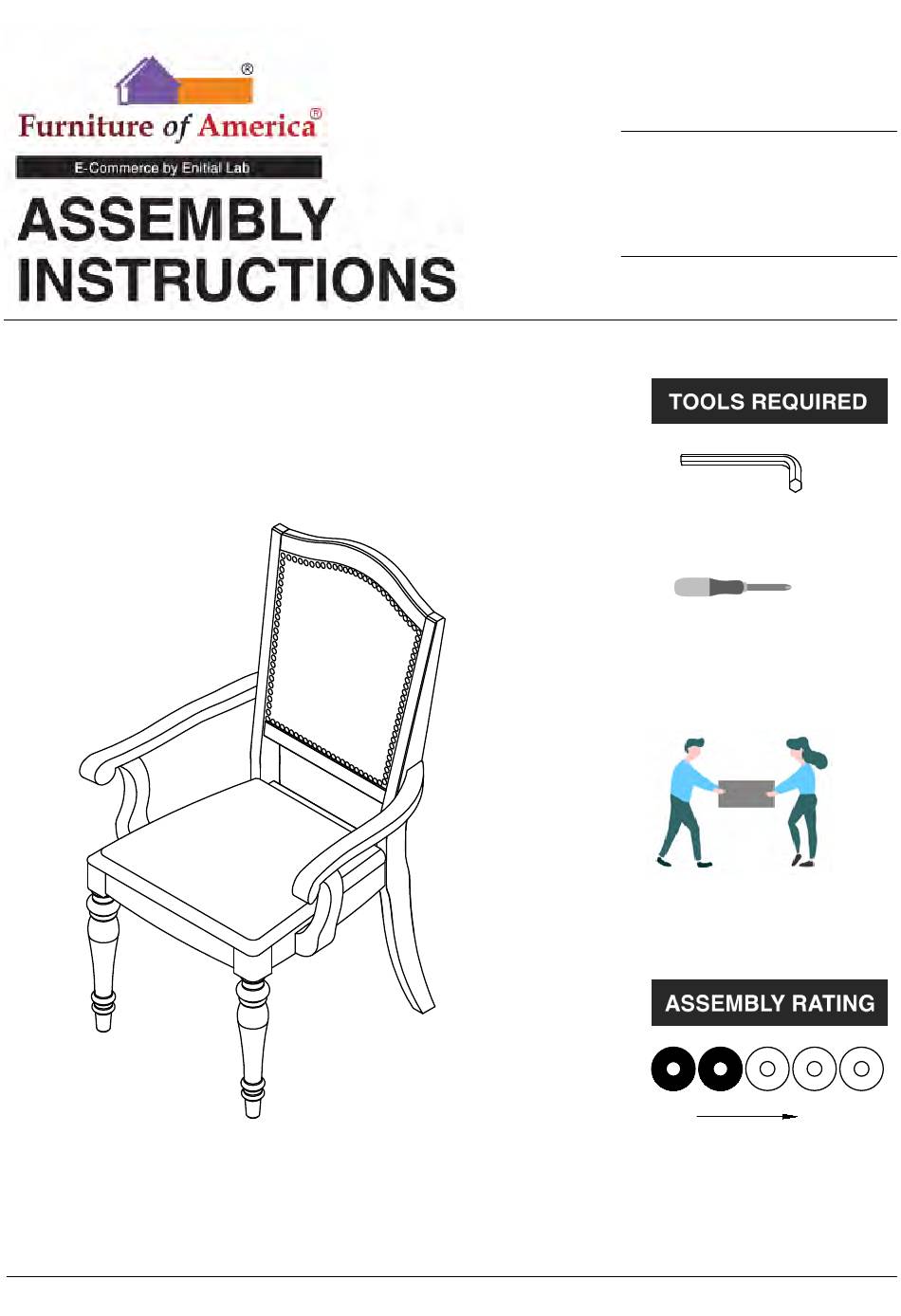

- Page 1 MODEL # CM3970AC-2PK CM3970GL-AC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...

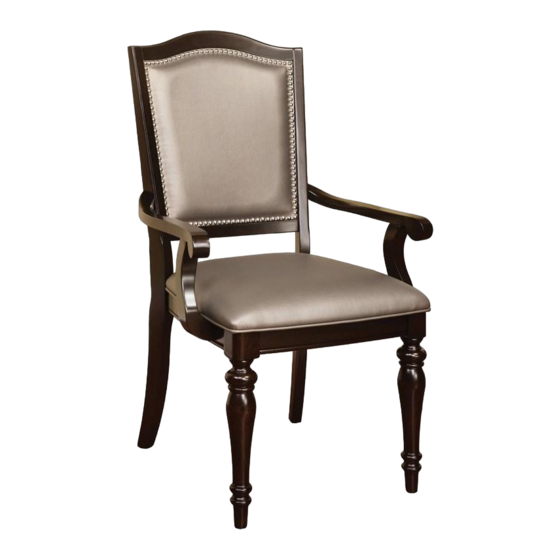

- Page 5 ARM CHAIR CM3970AC-2PK CM3970GL-AC-2PK #1 1pc x 2 #2 1pc x 2 #3 2pcs x 2 #4 1pc x 2 Backrest W/Legs Seat Front Leg Left Armrest #5 1pcs x 2 Right Armrest #C 6pcs x 2 #A 4pcs x 2...
- Page 6 ASSEMBLY INSTRUCTIONS Exploded View Part #1 ×1pc Align seat (#2) to chair back (#1), then secure Part #2 ×1pc by using bolts (#C) with washers (#D,E). Hardware #C × 2 Pcs Hardware #D × 2 Pcs Hardware #E × 2 Pcs #E #C 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Hardware #A × 4 Pcs Hardware #E × 4 Pcs Hardware #D × 4 Pcs Secure corner holes of the seat to chair back by using bolts (#A) with washers (#D,E). Part #3 ×2pcs Hardware #B × 4Pcs Hardware #D ×...
- Page 8 ASSEMBLY INSTRUCTIONS Align arms (#4,5) to the chair. Secure arms (#4,5) to chair back by using screws (#G). Secure arms (#4,5) to seat by using bolts (#C) with washers (#D,E). Part #4 ×1pc Part #5 ×1pc Hardware #C × 4Pcs Hardware #D ×...
