MODEL #
CM3829F-SC-2PK
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PT)
Allen Wrench
(Included)
1 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Gianna CM3829F-SC-2PK
Summary of Contents for Furniture of America Gianna CM3829F-SC-2PK

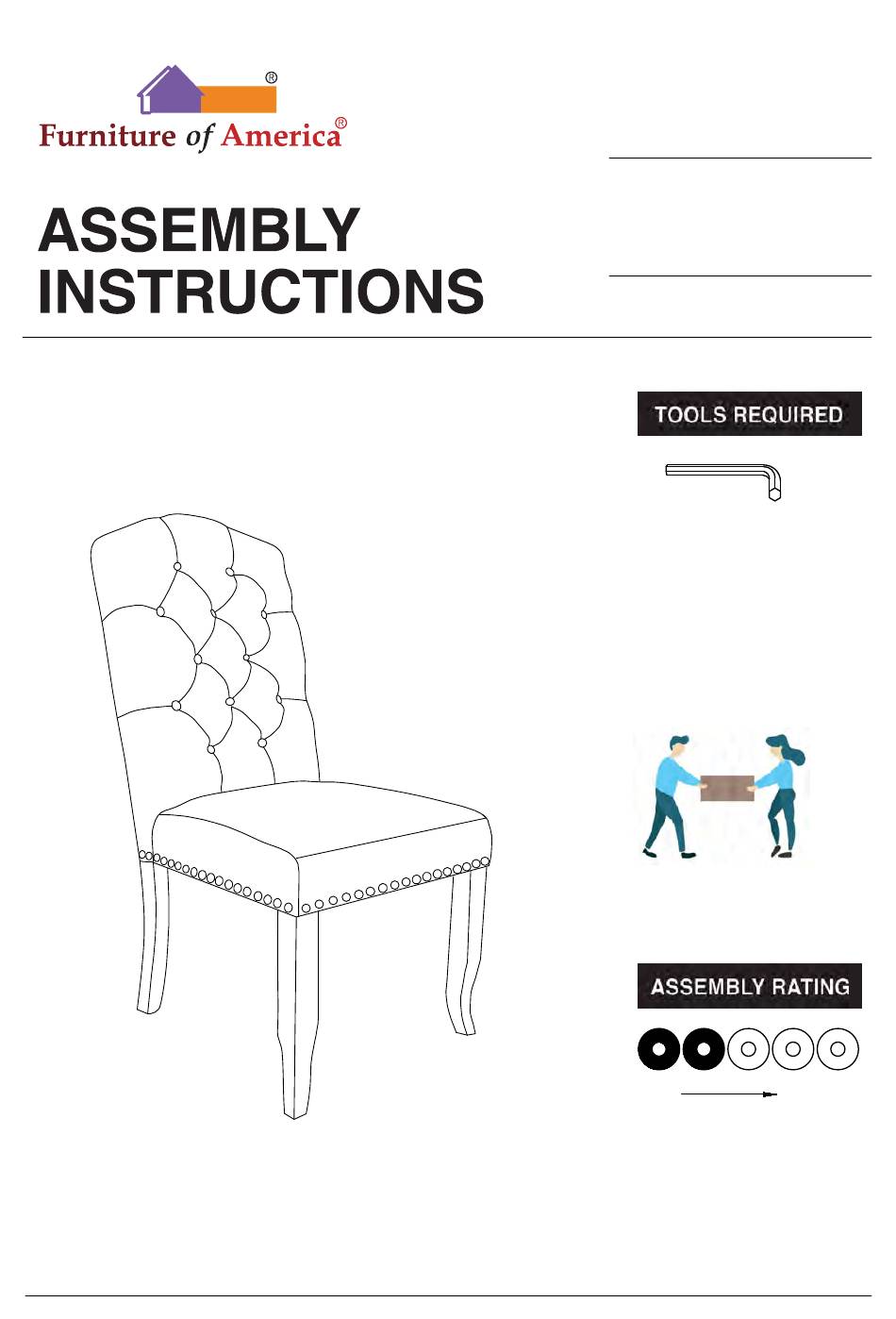

- Page 1 MODEL # CM3829F-SC-2PK Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PT) Allen Wrench (Included) 1 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 21-08-31 1 / 8...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 8...
-
Page 5: Chair Back
IVORY FABRIC SIDE CHAIR CM3829F-SC-2PK #1 1pc x2 #2 1pc x2 #3 2pcs x4 Chair Back Chair Seat #A 1pc x2 #B 4pcs x2 #C 4pcs x2 #D 3pcs x2 Allen Wrench 5mm Bolt Ø5/16"x3-1/2" Bolt Ø5/16"x2" Bolt Ø5/16"x2-3/4" #E 11pcs x2 #F 11pcs x2 #G 1pc x2 Flat Washer Ø5/16"... -
Page 6: Exploded View
Exploded View 6 / 8... - Page 7 ASSEMBLY INSTRUCTIONS Align front legs (#3) to the seat (#2), then secure by using bolts (#C) with washers (#E,F). Part #2 x1pc Part #3 x2pcs Hardware #C x4pcs Hardware #E x4pcs Hardware #F x4pcs Part #1 x1pc Part #2 x1pc Insert dowel (#G) to middle hole of seat (#2), then align seat (#2) to chair bac Hardware #D x3pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Secure corner holes of the seat (#2) to chair back (#1) by using bolts (#B) with washers (#E,F). Hardware #B x4pcs Hardware #E x4pcs Hardware #F x4pcs 8 / 8...
