WM Systems WM-E1S Datasheet And User Manual

Metering modem
Hide thumbs Also See for WM-E1S:
Table of Contents

Advertisement

Quick Links

Download this manual

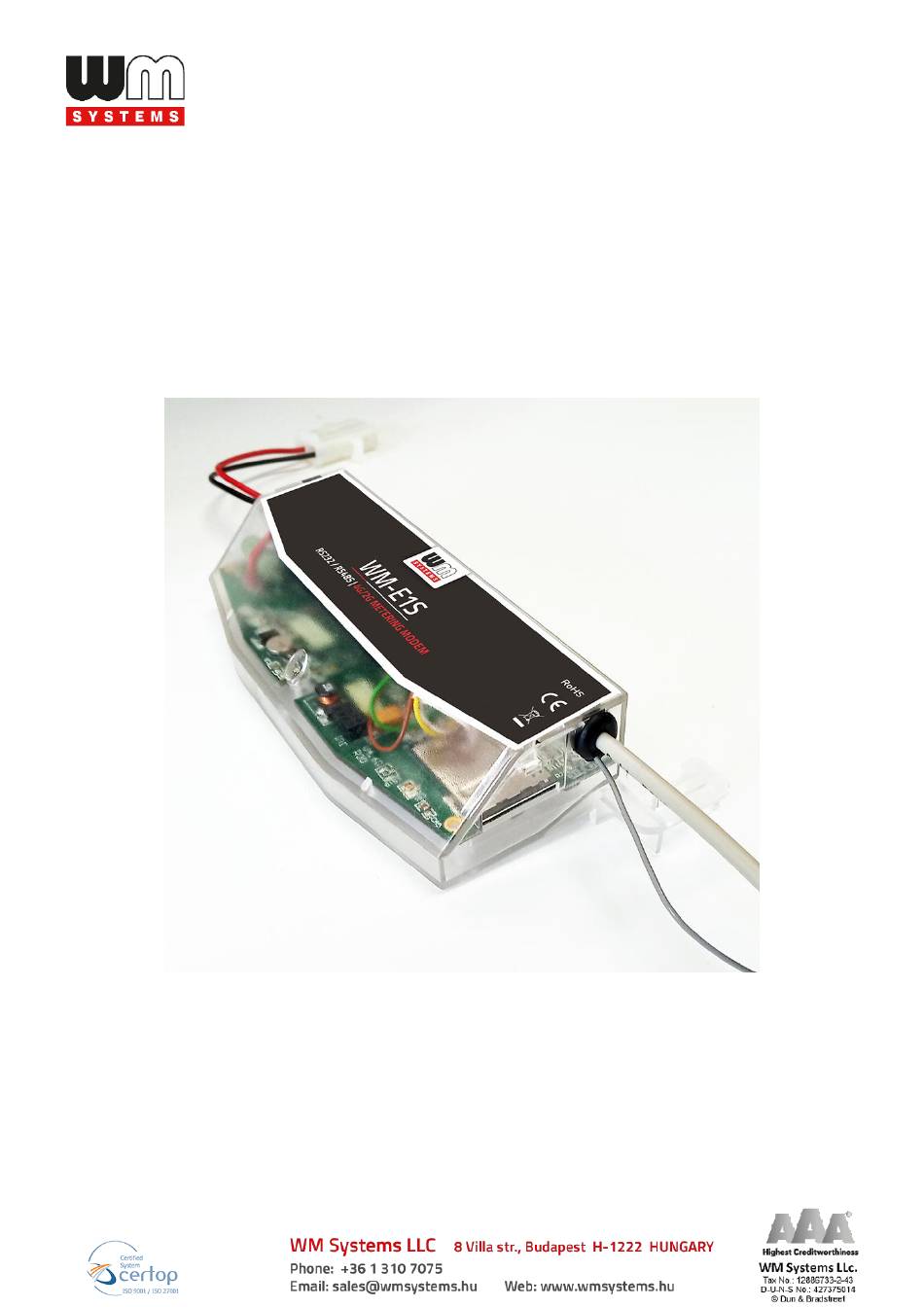

Datasheet and User manual
for WM-E1S
metering modem
®
______________________________________________ ____
Rev: 2.77
2024-11-28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-E1S and is the answer not in the manual?

Questions and answers

Related Manuals for WM Systems WM-E1S

Summary of Contents for WM Systems WM-E1S

  • Page 1 Datasheet and User manual for WM-E1S metering modem ® ______________________________________________ ____ Rev: 2.77 2024-11-28...

  • Page 2: Document Specifications

    Document specifications This documentation was made for presenting the installation and configuration steps of the WM-E1S energy metering modem. ® Document Version: REV 2.77 WM-E1S modem for ® • Elster ® / Honeywell ® Alpha A1500, A1700, A1800, A1140 / A1160...

  • Page 3: Chapter 1. Introduction

    Chapter 1. Introduction The WM-E1S modem family is suitable for ® remote reading of electricity meters on LTE- based cellular networks. The modem family has several versions to fit for many meter types. You can save money by using our modem, because furthermore there is no need of manual readout of the meter systems.
  • Page 4 Design and installation This modem was especially developed for various tpy of 3-phase electricity meters, such as: ▪ Honeywell / Elster Alpha A1500, A1700, A1800, A1140/A1160 meters ® ® ▪ Itron SL7000, EM600 (E620), ACE6000, ACE8000 meters ® ▪ Landis+Gyr ZMG type meters ®...
  • Page 5 The device can be accessed remotely via the mobile network and is capable of sending data over the Internet using an APN. The modem is basically prepared for transparent data transmission between the metering server or metering service provider, with CSData call (only for 2G network setting!) And via mobile internet (TCP) connection (“PULL”...
  • Page 6 The modem can be connected through the following modes: a.) the meter is connected to the 57.7/100V AC power network: the modem must be connected to line voltage (100V, L1..L2 or L2..L3 or L1..L3) b.) the meter is connected to the 230/400V AC power network: the modem must be connected to the phase voltage (230V, L1..N or L2..N or L3..N) In case of the need of using external DC power, the modem can be orderd in DC- voltage version.
  • Page 7 The configuration tool requires Windows platform to run. It is available in English and ® some local languages as well (as French, German, Spanish, Czech, etc.). Security The product’s firmware is encrypted and prevented against to upload firmware or data from other devices. The modem cannot be upgraded by any other 3rd party firmware –...

  • Page 8: Chapter 2. Connectors, Interfaces

    Chapter 2. Connectors, interfaces 2.1 Modem with RS232 (DSUB-9) and RS485 4-wire connector (for Honeywell , Elster A1500, A1800 meters) ® ® 1 – Mains connector (pigtail connector, for the AC power of the meter) 2a – RS232 connector (DSUB9) 2b –...
  • Page 9 2.2 WM-E1S modem with RS485 connection (4-wire) and 2 digital input connector (for Honeywell ® / Elster ® A1500, A1800 meters) 1 – Mains connector (to the meter) 2b – RS485 connector (4-wire) 2c – 2 digital input connector (4-pins) 3 –...
  • Page 10 2.3 Modem with RS232 connector (DSUB-25) and 2 digital input connector (for Honeywell ® / Elster ® A1700 meters) 1 – Mains connector (to the meter) 2a – RS232 connector (DSUB25) 2c – 2 digital input connector (4-pins) 3 – Antenna connector (SMA-M, 50 Ohm) 4 –...
  • Page 11 2.4 Modem with RS485 connector (DSUB-25) and 2 digital input connector (for Honeywell ® / Elster ® meters) 1 – Mains connector (to the meter) 2a – RS485 connector (DSUB25) 2c – 2 digital input connector (4-pins) 3 – Antenna connector (SMA-M, 50 Ohm) 4 –...
  • Page 12 2.5 Modem with RJ12 connector (RS232) 1 – Mains connector (100V AC - to the meter) 2 – RS232 connector (RJ12 – data connection modem → meter) 3 – External antenna connector (SMA-M, 50Ω) 4 – SIM card slot (mini SIM, insert-push) 5 –...
  • Page 13 2.6 Modem RJ12 with connection (RS485) for Honeywell and other ® type meters 1 – Mains connector connector (pigtail connector for the AC power of the meter) 2 – RS485 connector (RJ12 – for data connection modem → meter) 3 – External antenna connector (SMA-M, 50Ω) 4 –...
  • Page 14 2.7 Universal metering modem with external mounting (with RJ12 connector) 1 – Mains connector connector (pigtail connector for the AC power of the meter) 2 – RS232 (gray) or RS485 (black) connector (RJ12 data connection modem → meter and for the configuration of the modem) 3 –...
  • Page 15 2.8 Installation steps Step #1: Remove the meter terminal cover (signed by „I”), loosen the screws (J). Step #2: Ensure that the device is not powered on, remove the AC connector (1) from the meter. Step #3: Insert a replaceable and active SIM card (with APN) into the SIM-holder (4) - the chip looks down, and the cutted edge of the SIM looks to the modem.
  • Page 16 Step #9: After completing the configuration, remove the R232 cable (or RJ12 cable) - labeled with „2” or „2a” - from the USB adapter. Step #10: Disconnect the modem AC power connector (1) from the meter (or power source). The modem will be shutting down. Step #11: Make a data connection between the modem and the meter on the interface you want to use (port nr.
  • Page 17 Step #2: Connect to the meter using the data connector. Connect the RS485 („2b” signed cable 2- pin wire/sleeve (brown white wires) to the meter’s RS485 input. If the input has 4-pins, you can also connect all four cables to the place which is marked with „D”.
  • Page 18 Step #4: If you haven’t already done, connect the appropriate antenna (3) to the modem swing connector.
  • Page 19 Step #5: Connect the wire end sockets of the modem AC cable (1) to the meter, to the AC power connection points (red and black wires) - carefully, because during this, the meter can be under 100-240V AC supply voltage! Since now, the modem gets its power from the meter.
  • Page 21 2 screws from the top of the housing (2 side below). Step #2: Place and insert the modem under the transparent plastic cover of the meter and connect the wires according to the needs. WM-E1S modem with 4-wire RS485 connector and 2 digital inputs (black and white wires)
  • Page 22 WM-E1S modem with DSUB-25 (RS485) connector and 2 digital inputs (black and white wires) In case of using the RS485 data connector Step #1: Connect the RS485 cable’s (3) four wire (from left to right: white, brown, yellow, green) of the modem device to the meter’s data connection – signed with A on the next photo.
  • Page 23 Elster /Honeywell Alpha A1800 meter connection ® ®...
  • Page 24 Step #5: Now snap the modem unit (signed with „E”) into the meter communication module’s place by sliding with the 2 plastic hooks / ears (signed with „F”) of the modem case to the meter case’s two holders to fasten the hooks.
  • Page 25 Always be careful to the wires and cable connections below the modem case against wire cut or other unwanted situations, when put and fixate the modem unit. Always use quality and longer wires to the proper connection. The modem is now under power connection and uses wired data (RS485) connection. If you want to connect RS232 (labeled 2 or 2a), connect it to the RS232 socket marked “G”...
  • Page 26 In case of using RS232 connection (DSUB9 connector) only – as you can see in the next photo – you don’t need the RS485 4-wire connection – signed with „C” – but you have to use the RS232 connection of the modem – signed with „G2” – to connect it to the right data RS232 serial connection position –...
  • Page 27 The modem is now under power connection and uses wired serial data (RS232) connection. In case of using the RS485 and the RS232 (DSUB9) serial connection together – as you can see in the next photo – you have to apply all described connection ways to the proper data connection (the RS485 4-wire connection (signed with A) and the RS232 serial data connector („G”...
  • Page 28 If the modem has digital input wires (of 2 inputs), then connect external devices - to be monitored – to the 2 digital input interface (2c) cables. You can also use it for sabotage. The black wire is related to input nr. #1, white wire is related to input nr.
  • Page 29 (I) of the meter. Step #3: Connect the wires according to the needs - by following the next hints. WM-E1S modem with DSUB-25 (RS232) connector and 2 digital inputs (black and white wires) Step #4: Connect the RS232 (DSUB-25) cable’s connector (2a) of the modem to the meter-side „Serial...
  • Page 30 Step #8: If the modem has digital input wires (of 2 inputs), then connect external devices - to be monitored – to the 2 digital input interface (2c) cables. You can also use it for sabotage. The black wire is related to input nr. #1, white wire is related to #2.
  • Page 31 If the meter has RJ12 port (2), then connect the modem’s RJ12 connector to the meter’s “G” marked RS232 socket plug. Connect the modem’s AC power – sleeve – connector to the meter’s power output connector. 2.13 Connecting the modem to Itron ®...
  • Page 32 This meter has two RJ45 ports (2a, 2b) or has only one RJ45 port (RS232 or RS485). Connect the modem’s RS232 (RJ45) connector (2a) to the meter’s “G” marked RS232 socket plug. If the meter is RS485 version, then connect opposite side of the modem’s RJ45 connector (2b) to the meter’s RJ45 socket Connect the modem’s “E”...
  • Page 33 This meter has two RJ45 ports (2a, 2b) – an RS232 and an RS485. Connect the modem’s RS232 (RJ45) cable connector (2a) to the meter’s “G” marked RS232 socket plug. Then connect the RS485 cable connector (2b) to the meter’s “D” marked RJ45 socket plug.

  • Page 34: Antenna Connection

    2.15 Antenna connection The modem requires enough signal strength of the cellular network and LTE or similar antenna for the proper operation and good communication. Where the signal strength of the cellular network is sufficienty, there an internal antenna may be enough to use.
  • Page 35 • When the mobile network access technology was changed: quick flashing will be relied: 2G → 2 flashing per second 3G → 3 flashing per second 4G and LTE → 4 flashing per second • If there is no available cellular network detected: the led will be blank During the CSD call and IP data forwarding, the LED is ligthing continuously...
  • Page 36 where you can define one of the following functions of the leds (LED1..LED3) according the next list: Selectable LED status (in WM-E Term) Not used GSM / GPRS status (see above) SIM status (see above) E-meter status (see above) E-meter relay status – in case of WM-E3S CIR version (E-meter relay output status) M-Bus status Firmware status Network status and access technology –...
  • Page 37 ** The EI client is a transparent TCP channel outgoing from the modem to the EI server At the relay status, as it is shown in the next figure it is „Disconnected”, which is the “active” mode (relay retracted, in which case the LED is turned on). The “Connected”...

  • Page 38: Internal Connectors

    alert notification – according the settings. This SMS messages can be configured by the WM-E Term application – in the AMM (IEC) parameter group part. ® 2.18 Internal connectors RS232 – 4-pin internal connector, connected to the RS232 2 INPUTS RS485 CN500.
  • Page 39 On CS5 connector - marked by red circle on the photo – the pin nr. “1” is the GND connector. 2.20 RS485 connector pinout (internal CS7 connector) Alternative Color Mark Meaning Meter RS485 port connector side colour White Black Receiving data Meter_TX+ Brown Receiving data...
  • Page 40 modem will support the LastGASP feature. This means that in case of power outage the modem’s supercapacitor allows to operating further the modem for a short time (a couple of minutes). In case of detecting the loss of mains/input power source, the modem generates a “POWER LOST”...
  • Page 41 The device needs to be connected to GSM network and ready to connect to GPRS, but without active IP connection. - Data Push - starting at predefined times • The Data Push method triggers FTP file upload, plain text or encrypted. •...
  • Page 42 2.23 LED operation during the CSD call The CSD call consists of two parts: a.) We want to read / configure a meter in transparent mode b.) We want to perform a modem configuration / firmware update To read / configure a meter in transparent mode: - The LED configured for GSM / GPRS status will be lit continuously during the CSD call.
  • Page 43 2.25 Data control direction (DCD) feature In case of using the WM-E1S modem with Itrón SL7000 or other meters or the WM- ® ® E1SL meter through RS232 connection, there you can use the DCD feature - due to ®...
  • Page 44 2. If there is no ping response, it reconnects to the network after the time interval specified in the Seconds, GPRS connection closed and restored after this time parameter. Attention! In case of frequent ping using, the data traffic will be higher, but the chances are higher that the device will remain on the cellular network.

  • Page 45: Chapter 3. Modem Configuration

    Chapter 3. Modem Configuration 3.1 Configuration The modem must be configured by the WM-E Term software by configuring its ® parameters which must be performed before the normal operation and usage. Over the parameter settings of meter, modem and communication, etc., you can also test the modem communication by the configuration program.
  • Page 46 For the successful operation of the communication module it is necessary to have appropriate signal strength. In places where the signal strength is strong it is possible to use internal antenna, for areas with poor reception mount an external antenna (50 Ohm SMA connection) to the antenna connector (3) of the device, which you can place inside even inside the meter enclosure (under the plastic housing).

  • Page 47: Signal Strength

    In addition, be sure to review and save the transparent mode data speed functions in the WM-E Term program for the RS232, RS485 settings. In addition, you must send the configured configuration to the modem using the program - according to the configuration software’s User Manual document.
  • Page 48 3.5 Power outage management The firmware version of the modem is supporting the LastGASP feature, which means that in case of power outage the modem’s supercapacitor allows to operating further the modem for a short time (a couple of minutes). In case of detecting the loss of mains/input power source, the modem generates a “POWER LOST”...
  • Page 49 3.6 Restart the modem There cannot be found a direct option for modem restart in WM-E Term. But it is very easy to push the modem to be restarted. 1. Choose any parameter from the readout values. 2. Change a parameter value 3.

  • Page 50: Chapter 4. Support

    The product has an identification void which has important product related information for the support line. Warning! Damaging or removing the void sticker means the loss of product guarantee. Online product support available here: https://www.m2mserver.com/en/support/ 4.2 Product Support The documents and information related on the product are available here. https://www.m2mserver.com/en/product/wm-e1s/...

  • Page 51: Chapter 5. Legal Notice

    WM Systems LLC. only. The figures in this document are illustrations, those can be different from the real appearance. The WM Systems LLC doesn’t take any responsibility for text inaccuracy in this document. The presented information can be changed without any notice.
