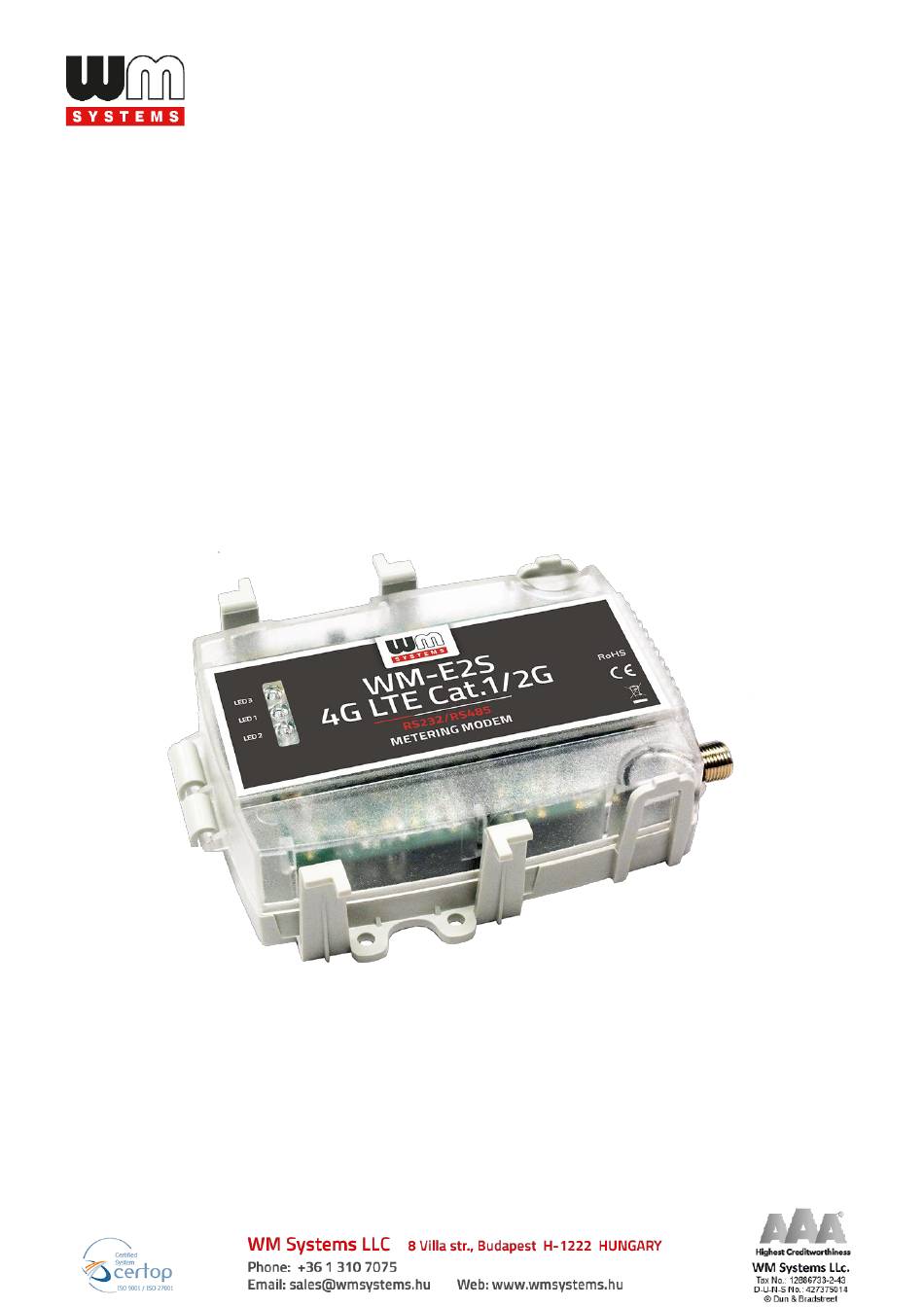

- Page 1 User manual for WM-E2S ® electricity metering modems ___________________________________________________ Rev: 2.7.5 2023-11-30...
-
Page 2: Document Specifications
Document specifications This documentation was made for presenting the installation and configuration steps of the WM-E2S (Itron meter compatible) energy metering modem. ® ® Document Version: REV 2.75 WM-E2S modems ® Hardware Type/Version: for the ITRON ACE6000, ACE8000, EM600 (E620... -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction The WM-E2S modem is suitable for remote reading of electricity meters on LTE- ® based cellular networks. You can save money by using our modem, because there is no further need of manual readout of the meter systems. - Page 4 parameter set of the meter - remotely. The date readout from the meter takes place in "PULL" mode, when the modem provides transparent communication between the meter and the electricity provider's measurement center (HES). Data is sent via the mobile network corresponding to the selected module. The modem can be accessed remotely through the cellular network (by the Telit ®...
- Page 5 The WM-E Term tool is password protected and user management is also possible. ® The configuration tool requires Windows platform to be executed, and it is available ® in English, German, French, Spain, Czech and Hungarian language as well. Firmware refresh The WM-E Term also provides safe firmware change for one or group of devices –...
-
Page 6: Chapter 2. Connections
Chapter 2. Connections 2.1 External outfit 1a – Plastic transparent top cover 2 – PCB board 3 – Fixation holes 4 – Cover holders (loosen them to let it open up the cover) 5 – FME or SMA antenna connector (50 Ohm) –... - Page 7 2.2.2 Jumperless version 11 – Jumper crossboard (for the proper meter 1b – Plastic transparent bottom cover part (white) communication / compatible cable pinout) 8 – SIM card slot (push left and spin up) 12 – Supercapacitor parts 9 – Internal antenna wire (with U.LF – SMA / 13 –...
- Page 8 2.3 Jumper version – port mode choose The modem can be ordered in a version with or without a jumper. The advantage of the jumperable version is that the RS232 or RS485 mode can be free to set by the requirements.
- Page 9 2.4 Jumperless (crossboard) version The modem can be ordered in jumperless version (crossboard soldered to the PCB, instead of a jumper board). It has a pre-defined connection according to the meter type. Therefore, there is no need for manual jumpering of the device, all settings can be done by the WM-E Term configuration software directly –...
- Page 10 Itron meter - RS232 Connector pinout ® Itron meter – RS485 Connector pinout ® RS485 interface description Symmetric, serial and asynchron 4-wired cable connection. The master in 2-wire cable mode, which can be configured by configuration software (provided) - Standard ISO- 8482.
-
Page 11: Installation Steps
2.5 Installation steps Step #1: Remove the top cover or the meter (18) by loosing its screws. Step #2: Ensure that the modem is not powered – remove the RJ45 connection cable (14) from the meter side. Step #3: Loose the cover holders (4) of the plastic enclosure’s white part (1b) at the edges, while pull the plastic top cover (1a) - from right-down to left-up direction –... - Page 12 Step #4: Now the PCB (2) will be on the left side – see the photo. Step #5: Slide and open up the plastic SIM card holder (8) - push from left to right, and spin it up until release. Step #6: Insert a replaceable and active SIM card (with APN) into the SIM-holder (8) - the chip looks down,...
- Page 13 Step #10: The data connection between the modem and Itrón meter is assured by ® the RS232/RS485 interface (RJ45, signed with nr. 10 on the figure), then it can be used with the grey RJ45 cable - provided. Step #11: Place and insert the modem into the meter (under the meter’s terminal cover) and fix the device to the meter –...
- Page 14 Step #16: Reconnect the RJ45 cable to the meter. (If the modem will be connected on RS485 port with the meter, then the jumper settings must be modified to RS485 mode!) ITRON ACE6000 → WM-E2S modem connection...
- Page 15 ITRON SL7000 → WM-E2S modem connection...
- Page 16 ITRON EM600 (E620) meter WM-E2S modem connection →...
- Page 17 It begins its operation, check LED signals. Step #19: Place back the meter’s terminal cover (18). 2.5 Status LED signals If the WM-E2S modem was not supplied by power source since a long time, it needs ®...
- Page 18 OPERATION LED SIGNALS – IN CASE OF NORMAL OPERATION Factory default LED signals: LED identifier Events LED 3 • By general: the led is inactive • During communication: the led is active (flashing) E-METER status LED 1 • During network registration: led is active •...
- Page 19 Over the factory defaults, the operation and the sequence of the LED signals can be changed by the WM-E Term configuration tool, in Standard Meter Interface ® parameter group. There you can define one of the following functions of the leds (LED1..LED3) according the next list: Selectable LED status (in the WM-E Term program) Not used...
- Page 20 *The listed relay can switch the power source of the e-meter. it cannot be used for tarrif switch! **The EI client is the transparent output TCP channel from the modem to the EI server In Connected “normal” mode (when the relay is released), the LED is turned off. In Ready for Connection “ready”...
- Page 21 When modem configuration / firmware refresh is attempted to make - The GSM / GPRS status configured LED will be continously lighting during the CSD call. - The other LEDs will not change their operation because of the CSD mode...
-
Page 22: Chapter 3. Modem Configuration
Chapter 3. Modem Configuration 3.1 Configuration The modem is uploaded with default configuration, but before the first usage the current settings should be checked and the configuration should be updated (e.g. APN name, etc.). The WM-E Term software is usable to perform the modem settings. ®... - Page 23 The configuration can be made by CSData call (by selecting a mobile access technology which uses 2G network). Or you can do it through mobile internet (TCP) connection – therefore you don’t need to connect the modem to your PC. Important! During the configuration, the power supply of the modem is assured by this converter board, on USB connection.
- Page 24 The configuration is possible without a SIM card, but in this case the modem is performing restart periodically, and some modem features will be not available until the SIM card is inserted (e.g. remote access). If the WM-E2S modem was not ®...
-
Page 25: Parameter Configuration
® further details! WM-E term User Manual: https://www.m2mserver.com/m2m-downloads/WM-E-TERM_User_Manual_V1_94.pdf Basic configuration file for Itron meters – with RS232 or RS485 mode: https://m2mserver.com/m2m-downloads/WM-E2S-STD-DEFAULT-CONFIG.zip 3.3 Parameter configuration For first load the sample configuration file in the WM-E Term software. ® Then reconfigure the devices parameters – as cellular communication settings (APN, APN username, password and PIN code, network usage method, communication port - RS485 settings). - Page 26 3. Choose Then the M2M parameter group, and push the Edit settings button. At the Transparent (IEC) meter readout port, give the PORT number, by which you try to readout the meter. Add this PORT number to the Configuration and firmware download, which you want to use for remote parameterization of the modem / for the further firmware exhange.
- Page 27 can distribute this setting (file) to another modem device by one click. • Firmware refresh: choose the Devices menu, Single Firmware refresh item by choosing the appropriate firmware file (with .dwl file extension). Attention! Ask our sales about the available newest firmware! 3.4 Configuring from CSD connection If the modem restarts due to an incorrect configuration, it is possible to access it with a CSD call.
- Page 28 If the network provider sends a message to the modem that the data connection has been lost, the connection will be restored automatically. If you do not send a message, you can choose from these two workarounds to follow: a.) Active mode - Use periodical ping, set the ping: 1.
-
Page 29: Signal Strength
3.7 Signal strength Check signal strength of the cellular network in the WM-E Term software Device ® Information menu or by using the icon. At the end of the process, the current status information will be updated. Check RSSI value (at least it should be yellow – which means average signal strength – or better if it is green). - Page 30 In case of detecting the loss of mains/input power source, the modem generates a “POWER LOST” event and the message will be immediately transmitted as an SMS text to the configured phone number. In case of recovering the mains/power source the modem generates the “POWER RETURN”...
- Page 31 Chapter 4. AT command settings - description (Configuring the Modem by AT commands) 4.1 General information about the commands In this part of the documentation we have collected the standard Hayes™ AT commands which you can use for programming the modem manually with any terminal application.
- Page 32 Commmand local Echo ATE0 Local Echo off ATE1 Local Echo on (echo) Hang up command – local interface only The modem is disconnecting the dial connection. Module identification (example for the answer: WM-E2 2G V2.44) Return to online state command - local interface only The modem switches back from command mode to data mode Silent mode...
- Page 33 DCD and DTR line can be used for signaling RTS and CTS line can be used AT+I Reports modem type, firmware version number, local settings E.g. WM-E2S v2.48 AT+IP? Reports current GPRS Listen mode address E.g. IP: 192.168.0.100 AT+R Resets modem and causes the modem to execute a 10...
-
Page 34: Modem Result Codes
4.4 Modem result codes Number Answer (V1) Legend (VO) Command line executed without errors. CONNECT Connection. RING Ringing signal detected. NO CARRIER Carrier lost or never present. ERROR Invalid Command. NO DIAL TONE No dial tone detected. BUSY Busy signal detected. NO ANSWER No answer from remote modem. -
Page 35: Product Support
The product has a identification void which has important product related information for the support line. Warning! Damaging or removing the void sticker means the loss of product guarantee. Online product support available here: https://www.m2mserver.com/en/support/ 5.2 Product Support The documents and information related on the product are available here. https://www.m2mserver.com/en/product/wm-e2s/... -
Page 36: Chapter 6. Legal Notice
WM Systems LLC. only. The figures in this document are illustrations, those can be different from the real appearance. The WM Systems LLC doesn’t take any responsibility for text inaccuracy in this document. The presented information can be changed without any notice.
