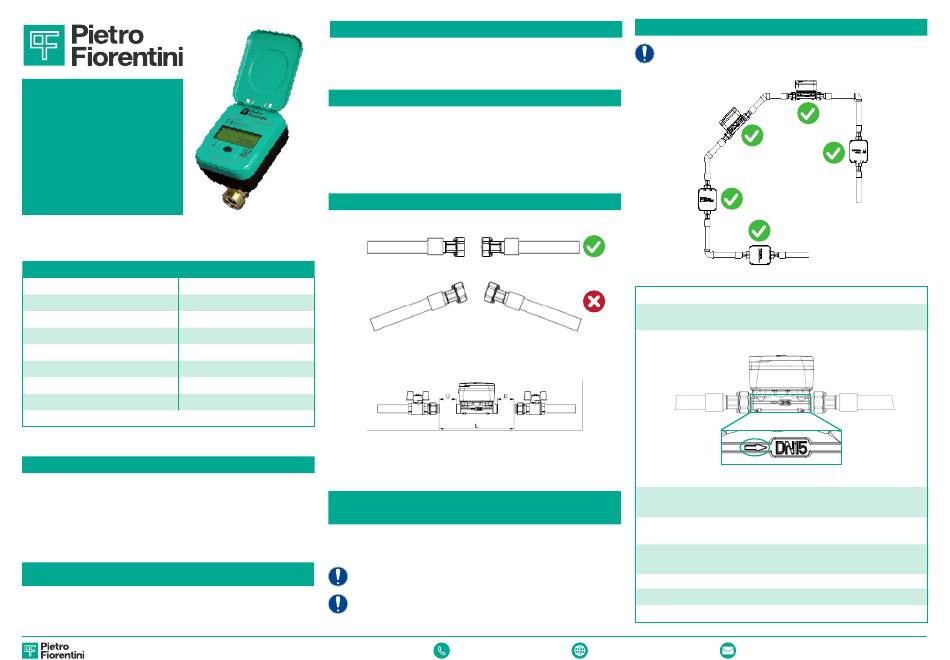

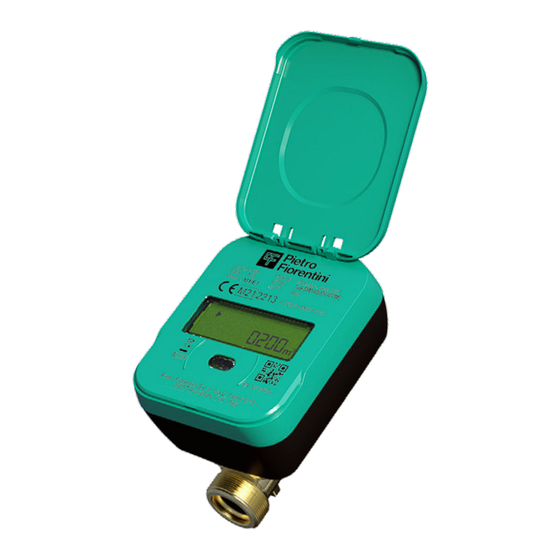

Ultrasonic water meter

Advertisement

Quick Links

SSM-AQUO
LoRaWAN & Wireless M-BUS
Quick use and
installation
guide
SSM-AQUO is an ultrasonic water meter for residential applica-
tions.
1. GENERAL INFORMATION
Water temperature
from -0.1°C to + 50°C
Room temperature
from -25°C to + 55°C
Environmental class
M1/E1
Maximum working pressure
16 bar
Protection rating
IP68
Maximum radio power
25 mW E.R.P.
Accuracy class
2
Battery life
up to 13 years*
* depending on radio transmission settings and environmental conditions
2. ENVIRONMENTAL CLASSIFICATION
Class B, O according to ISO 4064:2017-A.2 Appendix A point
A.2
Class M1 according to European Directive 2014/32/EU
Class E1 according to ISO 4064:2017 and European Directive
2014/32/EU
3. PACKAGE CONTENTS
Meter
Raccords kit (if ordered) and gaskets
Pietro Fiorentini S.pA. via E. Fermi 8/10 36057 Arcugnano (VI) ITALY
4. SAFETY INFORMATION
Consult this document before operating.
Installation must only be carried out by qualified and authorised
personnel.
5. TRANSPORT AND STORAGE
Protect against vibrations and falls during transport;
Storage temperature between -25°C and +55°C;
Once the meter has been removed, do not handle it by the lid;
Avoid impacts, bumps and drops when installing the meter.
6. INSTALLATION PRE-REQUISITES
Check the correct alignment of upstream and downstream pipes.
Check the distance between couplings to avoid mechanical
stress. U+D < 5 mm
Tab. 1.1. Technical data
Fig. 1.3. distance between the meter and the joints
SSM-AQUO is class U0D0 (does not require a straight section of
pipe before and after the meter).
7. COMPONENTS REQUIRED FOR
Gaskets
Compression fittings
Always use new seals.
Gaskets and fittings are not standard equipment (see
par. 3. PACKAGE CONTENTS)
Fig. 1.1. correct alignment
Fig. 1.2. misalignment
UG0109ENG
INSTALLATION
39 0444 968 511
www.fiorentini.com
8. INSTALLATION GUIDE
The SSM-AQUO meter can be installed in any posi-
tion.
Fig. 1.4. possible installation positions
Remove any packaging or protection from the meter
Install new gaskets in the pipe connections
Position the meter respecting the direction of flow
Fig. 1.5. flow limitation
Fasten the nuts according to the tightening torques indicat-
ed in the table
Open the upstream valve to allow water to flow into the
meter
Open the downstream valve to allow air to escape from the
pipeline
Close the downstream valve
Check that there are no leaks from the fittings
Reopen the downstream valve
sales@fiorentini.com
SG400127001
