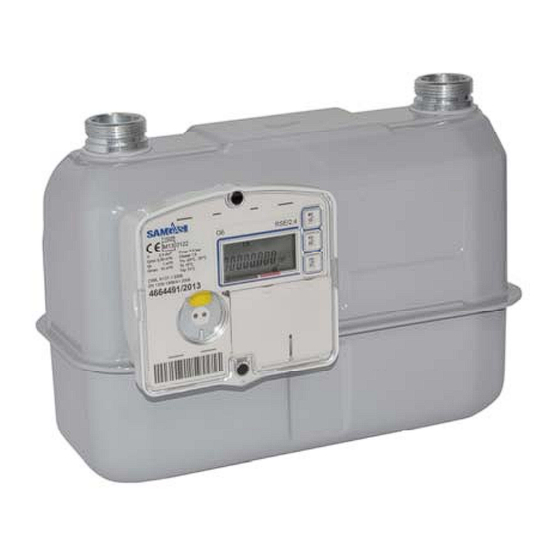

- Page 1 Smart GAS meter RSE/2001 LA – RSE/2,4 Use and Maintenance Manual Point-Multipoint Version (PM) Rev. Date 8 20/07/2015 ...
-
Page 2: Table Of Contents
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version Index 1. Introduction .............................. 5 1.1. Identification of the product ...................... 5 1.2. Packaging content .......................... 6 2. Safety instructions .......................... 7 2.1. Electrostatic discharges ........................ 7 2.2. Connecting to other devices ...................... 7 2.3. Feeding devices .......................... 7 2.4. Safety instructions for installation in the hazardous area .............. 8 3. General description .......................... 8 4. Main functions ............................ 10 4.1. ... - Page 3 RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 6.2.3. Units of measurement field ..................... 17 6.2.4. Numeric field ........................... 18 6.2.5. Icons and alarms field ...................... 18 7. Menu structure ............................ 19 7.1. Chapters ............................ 19 7.1.1. Totalizer of volumes under reference conditions in the current billing period ...... 19 7.1.2. Totalizer of volumes subject to alarm in the current billing period ........ 19 7.1.3. Totalizer of volumes for price range 1 in the current billing period ........ 20 7.1.4. Totalizer of volumes for price range 2 in the current billing period ........ 20 7.1.5. ...
- Page 4 RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 10. Technical characteristics ......................... 31 10.1. General features .......................... 31 10.2. Communication ports ........................ 32 10.3. Feeding devices ........................... 32 Date of issue Revision Revision date Page 4 of 32 04/06/2014 20/07/2015...
-
Page 5: Introduction
RSE is a family of products dedicated to measuring gas volume, which involves the application in end points of redelivery of natural gas networks. This document refers to the versions RSE/2001 LA and RSE/2,4. The product incorporates a mechanical device for... -
Page 6: Packaging Content
Vernate Vernate OIML R137-1&2:2012 EN 1359:1998/A1:2006 OIML R137-1&2:2012 EN 1359:1998/A1:2006 Milano Milano T10683 T10683 RSE/2001 LA RSE/2,4 WM169 WM169 M15 0122 M15 0122 1,2 dm³ 0,5 bar 2,4 dm³ Pmax 0,5 bar 0,04 m³/h Classe 1,5 Qmin 0,06 m³/h Classe 1,5 0,6 m³/h... -
Page 7: Safety Instructions
During the installation or use of this instrument, it is advisable to take steps to assure protection against electrostatic discharges. Pietro Fiorentini SpA denies all liabilities resulting from the risks and consequences caused by the non- compliance with these provisions 2.2. -
Page 8: Safety Instructions For Installation In The Hazardous Area
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version The following data are given on the battery pack: Model; Maximum output levels; Week and year of production Quality pass upon acceptance The metrological battery pack is sufficient to assure an autonomy of at least 15 years under the reference operating conditions specified in paragraph Technical features. - Page 9 RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version Metal enclosure Plastic enclosure Fig.3 RSE/2001 LA View Metrological battery Radio transmission battery, not replaceable PCB card GSM transmission battery Fig. 4 – Meter internal view RSE is a measuring instrument with accuracy class 1.5 or 1 (upon request), as defined in Directive 2004/22/EC (MID).
-
Page 10: Main Functions
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 4. Main functions 4.1. On-off valve With reference to the standards of the series UNI/TS 11291, RSE implements in particular the following services: UNI/TS 11291-1 4.3.4 Service: Supply management UNI/TS 11291-6 Flow on/off The gas flow on/off valve is located within the body of the meter into the inlet connection and is not accessible without causing... -
Page 11: Acquisition
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 4.4. Acquisition The flow rate measurement is carried out continuously by means of the mechanical system consisting of two measuring chambers (of known volume) with deformable diaphragms, which expand and contract alternately. This movement, induced by the pressure difference between the inlet and outlet passages, operated by a crank mechanism, is transmitted to a pin that makes a complete turn every cyclic volume of gas passing through. -
Page 12: User Interface
The overall dimensions of RSE are shown below. RSE is fastened to the system using a special shelf for GAS meter. 172.5 RSE/2001 LA Model RSE/2001 LA 341.5 RSE/2,4 Model RSE/2,4 Fig. 5 – Overall dimensions Date of issue Revision Revision date... -
Page 13: Connection To The System
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 5.2. Connection to the system After installation, RSE must be connected to the system. Before connection, make sure that at least the portion of the plant upstream of the meter is sectioned and that, therefore, there cannot be any flow of gas during the installation; Before connection, make sure that the maximum system pressure is lower than the maximum pressure set for the meter, which is fixed and equal to 0.5 relative bar;... -
Page 14: Power Supply
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 5.3. Power supply The RSE meter can be powered exclusively by batteries. The metrological battery is dimensioned to assure the operation of RSE for at least 15 years. The battery autonomy was estimated in the following reference operating conditions: The 169 MHz radio transmission battery is dimensioned to assure the operation of RSE for at least 15 years. -
Page 15: Security And Fraud Prevention
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 5.4. Security and fraud prevention The solutions implemented on the RSE meter to assure the security comply with the requirement set forth by the standard UNI TS 11291. -
Page 16: User Interface
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 6. User interface The user interface consists of three operator keys and a display. The following paragraphs describe the interaction between the operator and the user interface, and the meanings of the various fields available on the display. With reference to the standards of the series UNI/TS 11291, RSE implements in particular the following services: UNI/TS 11291-1 4.3.5 Service: Consumer information... -
Page 17: Menu Field
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 6.2.2. Menu field Icon Meaning Notes Totalizer of volumes under reference conditions Totalizer of volumes subject to alarm Totalizer of volumes under reference conditions for range 1 Totalizer of volumes under reference conditions for range 2 Totalizer of volumes under reference... -
Page 18: Numeric Field
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 6.2.4. Numeric field It consists of 8 7-segment digits and gives the value associated with the displayed menu page. 6.2.5. Icons and alarms field Icon Description Flashing Communication Radio communication active Alarm not active but previously recorded and not... -
Page 19: Menu Structure
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7. Menu structure This section shows the hierarchy of the pages making up the interface with the user. Under normal operating conditions, the display is completely off. Pressing the green Enter key, the display turns on and performs a test in which all segments and icons are lit simultaneously for three seconds. -
Page 20: Totalizer Of Volumes For Price Range 1 In The Current Billing Period
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.3. Totalizer of volumes for price range 1 in the current billing period Abbreviation Format 5 integers and 3 decimals Unit m³ Pressing enter Legal relevance 7.1.4. Totalizer of volumes for price range 2 in the current billing period Abbreviation Format 5 integers and 3 decimals... -
Page 21: Totalizer Of Volumes For Price Range 1 In The Previous Billing Period
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.8. Totalizer of volumes for price range 1 in the previous billing period Abbreviation T1 PRE Format 5 integers and 3 decimals Unit m³ Pressing enter Legal relevance 7.1.9. -
Page 22: Diagnostics
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.12. Diagnostics Abbreviation Format 4 digits (hexadecimal code) Unit Pressing enter Legal relevance The encoding of the information shown complies with the provisions of the standard UNIT11291-11-, chapter 5.4.9.2, given here below. Meaning Reserved Reserved... -
Page 23: Redelivery Point (Pdr) Id
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.14. Redelivery Point (PDR) ID Abbreviation Format 14 digits Unit Pressing Enter By pressing enter, it is possible to scroll the 14 digits in both directions using the arrow keys. Legal relevance Redelivery Point (PDR) ID 7.1.15. -
Page 24: Status Of The Device
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.16. Status of the device Abbreviation Format 1 digit – Possible values: production factory device configured device under maintenance device not configured Unit Pressing Enter Pressing the central button, access is granted to the maintenance menu. -
Page 25: Enabling And Disabling Of The Zvei Port
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.16.1. Enabling and disabling of the ZVEI port From the main SD menu, press the central button to access the submenu ZVEI port status: Disabled Press the lower button once Submenu to enable the ZVEI port Press the central button The operation was completed successfully... -
Page 26: Enabling And Disabling Of The Counting For The Test Phase
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version Press the central button The operation was completed successfully Press the upper button twice ZVEI port status disabled 7.1.16.2. Enabling and disabling of the counting for the test phase From the main SD menu, press the central button to access the submenu Press the lower button three times The meter is counting with normal resolution... -
Page 27: Maximum Conventional Flow Rate
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version Press the lower button twice Menu to set the counting in low resolution Press the central button The operation was completed successfully Press the upper button twice The meter is counting with normal resolution 7.1.17. -
Page 28: Date
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.18. Date Abbreviation Format dd-mm-yy Unit Pressing enter By pressing enter, it is possible to display the version CRC of the certificate modules and other information on the software. -
Page 29: Time
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 7.1.19. Time Abbreviation Format hh-mm Unit Pressing enter By pressing enter, it is possible to view the log of the last 32 firmware updates. For each firmware updates a block of three submenus is added: ... -
Page 30: Configuration
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 8. Configuration The device configuration can occur from the local ZVEI port or remotely from SAC, always by means of the DLMS protocol, as specified in the provisions of the standards series UNI/TS 11291. 9. -
Page 31: Technical Characteristics
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 10. Technical characteristics 10.1. General features Parameter Features Enclosure Main body: Polycarbonate Transparent cover: Polycarbonate Protection degree IP 55 Dimensions (overall) RSE/2001 LA Max 223(H) x 190(L) x 172,5(P) RSE/2.4 Max 246(H) x 341,5(L) x 179(P) Distance... -
Page 32: Communication Ports
RSE METER ENGLISH Use and Maintenance Manual ISV065UTE Rev.8 PM Version 10.2. Communication ports Parameter Features Local communication port Physical level ZVEI (IEC 62056-21) Speed 9600 baud Application level Protocol DLMS 10.3. Feeding devices RSE can ONLY be fed by a separate approved battery pack. Metrological battery The feeding of the metrological equipment is guaranteed by a non-rechargeable lithium battery with a duration >...
